Computer-Controlled Thermal Conductivity Testing Machine ABC123
Computer-Controlled Thermal Conductivity Testing Machine ABC123
Computer-Controlled Thermal Conductivity Testing Machine ABC123
Computer-Controlled Thermal Conductivity Testing Machine ABC123
Computer-Controlled Thermal Conductivity Testing Machine ABC123
Computer-Controlled Thermal Conductivity Testing Machine ABC123
Specifications
Brand Name :
Haida
Model Number :
60119-HD
Certification :
ISO,CE
Place of Origin :
Guangdong, China (Mainland)
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
30 Sets per Month Haida
Delivery Time :
15 days after order confirmed
Packaging Details :
Export wooden case
Control Mode :
Computer Control
Control System :
Controller with LED
Grip :
Tensile grip, Tear force grip
Printing :
Built-in Printer
Screw :
High Precise Ball Screw
Use :
utm tensile testing machine
Additional Features :
Automatic Data Recording, Real-time Graph Display
Transducer :
load cell
Motor :
Adjustable-speed motor, ball screw rod
Display Device :
PC
Test Method :
Tensile, Compression, Bending
Load Accuracy :
0.5% F.S
Unit Switchover :
G, KG, N, LB
Deformation Measuring :
YYU–10/50
Warranty Period :
1 year
Elongation Accuracy :
0.001mm
Test Force :
300KN(600KN,1000KN,2000KN)
Sensor :
Celtron load cell
Measure Range :
2%-100%F.S
Clamping Mode :
Hydraulically
Model :
ABC123
Test Speed :
0.01-500 mm/min
Weight :
Approx.75kg
Description
60119-HD 导热系数测试仪(平板热流计法)Thermal Conductivity Testing Machine

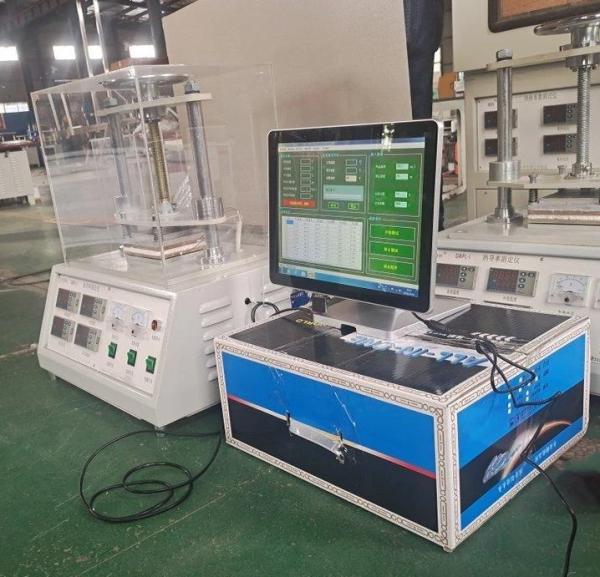

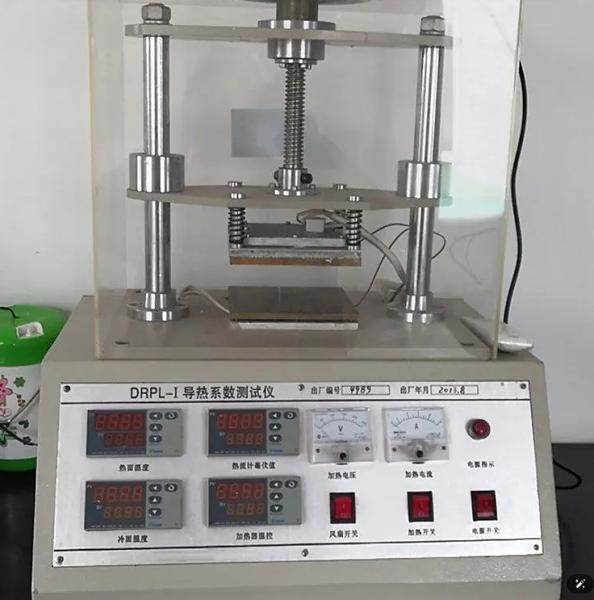

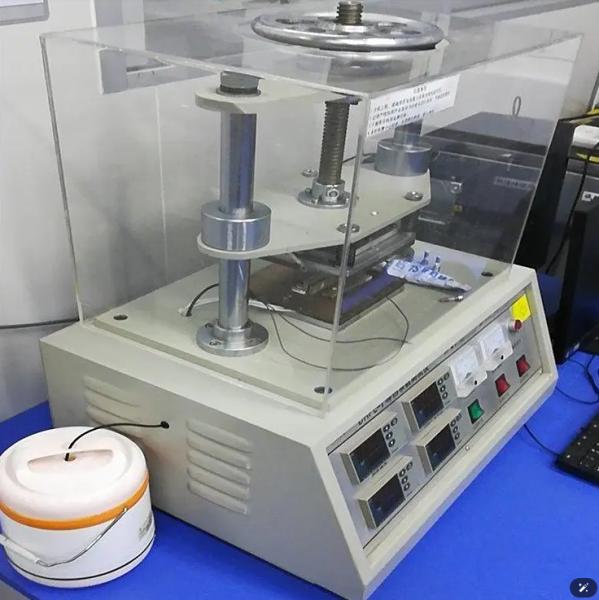

Computer-Controlled Thermal Conductivity Testing Machine ABC123
Introduction

The popular way that using the heat flow meter to test the thermal conductivity and resistivity, together with the computer can achieve the auto inspection and report generation.

This testing method easy, quick and good repeatability, which is suitable for the heat transfering R&D of the metal materials. It can also used for the test of plastic, rubber, ceramic, glass, graphite and other heat insulating material.

This machine is as per the standard of GB/T10295-2008.

Main technical parameter
  • The area of heat conductivity: sheet sample 0.015-5W/mk, accuracy less than 4％.
  • Round column sample 3-500W/mk, accuracy less than 4％.
  • Heat surface temp.: room temp.- 150℃ or room temp.- 300℃, use high temp. digital displayer to detect the temperature, 0.2 level accuracy. DPI 0.01 ℃.
  • Cold surface: room temp. use high temp. digital displayer to detect the temperature, 0.2 level accuracy. DPI 0.01 ℃.
  • Heat surface temp. control: room temp.- 150℃ or room temp.- 300℃, use high temp. digital displayer to detect the temperature, 0.2 level accuracy. DPI 0.01 ℃. The flat type heater, two-way controllable Si.
  • Cold surface use air blast cooling.
  • Use computer to test automatically.
  • Use WPY heat flow meter, heat flow feature 23.26w/m2*mV.
  • Use plexiglass wind cover, so that the whole test course can be observed directly.
  • Cold and hot plate heat transferring area: φ60(or φ80)mm
  • Cold and hot plate adjustable gap distance: 0-100(mm).
  • Power supply: 220V±10%,50Hz
