10kN Universal Tensile Test Machine with ISO 9001 CE Certification
10kN Universal Tensile Test Machine with ISO 9001 CE Certification
10kN Universal Tensile Test Machine with ISO 9001 CE Certification
10kN Universal Tensile Test Machine with ISO 9001 CE Certification
10kN Universal Tensile Test Machine with ISO 9001 CE Certification
10kN Universal Tensile Test Machine with ISO 9001 CE Certification
10kN Universal Tensile Test Machine with ISO 9001 CE Certification
10kN Universal Tensile Test Machine with ISO 9001 CE Certification
10kN Universal Tensile Test Machine with ISO 9001 CE Certification
10kN Universal Tensile Test Machine with ISO 9001 CE Certification
Specifications
Brand Name :
Haida
Model Number :
60099-HD
Certification :
ISO,CE
Place of Origin :
Guangdong, China (Mainland)
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
30 Sets per Month Haida
Delivery Time :
15 days after order confirmed
Packaging Details :
Export wooden case
Use :
universal tensile testing machine 10kn
Motor :
Adjustable-speed motor, ball screw rod
Control :
Manual
Warranty Period :
1 year
Usage :
Material Tensile Strength Test Machine
Certifications :
ISO 9001, CE
Safety Features :
Emergency Stop Button, Overload Protection
Load Cell Resolution :
1/250,000
Sensor :
Celtron load cell
Packaging Dimensions :
(L*W*H) 1650*1400*2500mm
Power :
1phase,AC220V, 50HZ
Screw :
High Precise Ball Screw
Resolution :
1/250,000
Actuator :
400w servo actuator
Capacity :
5, 10, 20, 25, 50, 100, 200kg
Display :
LCD Screen
Weight :
Approx.300kg
Load Accuracy :
±0.5%
Accuracy :
±0.5%
Description

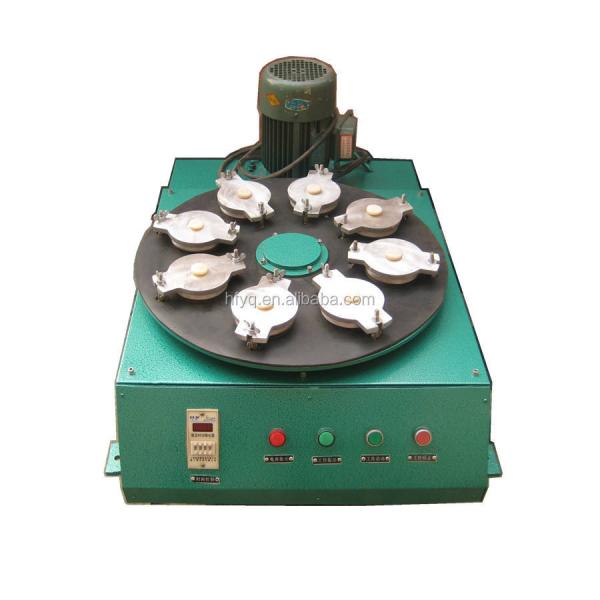

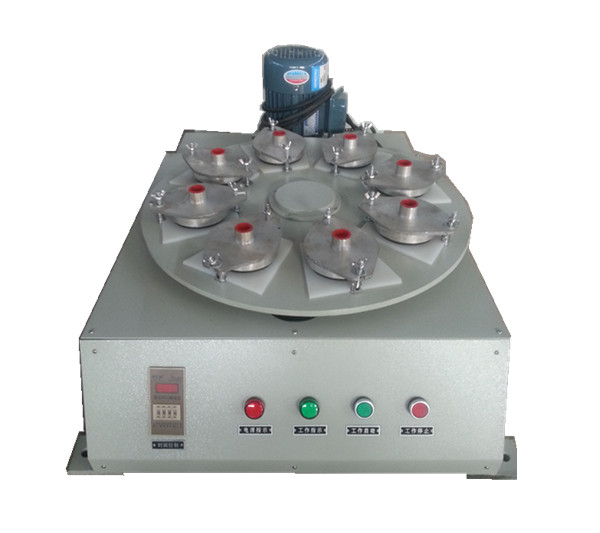

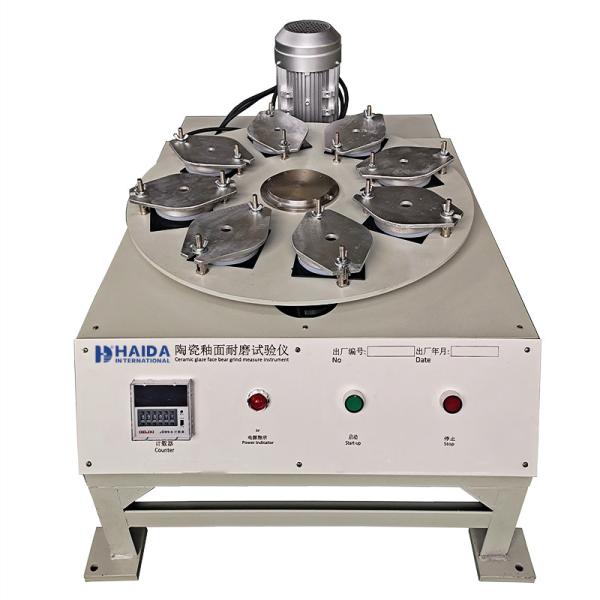

60099-HD Wear-resistant Resting Machine for Glaze Surface
10kN Universal Tensile Test Machine with ISO 9001 CE Certification

This machine is designed as per the ISO/DIS 10545/7－1996 and GB/T3810.7-2016 standards. Put the grinding material on the glaze surface and do the grinding test, then compare the difference of the surfaces.

  • Tile quantity: 3 pcs or 8 pcs.
  • Tile size: 100*100mm
  • Rated RPM of Supporting assembling: 300±10%rp/min
  • Power:380V( 3 phase 4 wire connection)

Need to be used with observation box.

Observation box
I. Purpose:

This box is used in conjunction with the ceramic tile glaze wear tester. It is a visual device for observing glazed tiles after wear test. It meets the standards: ISO/DIS 10545/7-1996 "Ceramic Tiles-Glazed Tiles Ceramic Tiles Surface Wear Resistance Test Method" and GB/T3810.7-2006, GB/T3810.7-2016 "Ceramic Tiles Glaze Wear Resistance Test Method" for observation devices.

II. Main technical parameters:
  • Voltage: 220V, power 200W;
  • The fluorescent lamp with a color temperature of 6000--6500K in the box is perpendicular to the surface of the observation brick, and the illumination is about 300LX,
  • Box size: 610*610*610mm,
  • The box is painted with natural gray,
  • Avoid direct exposure to the light source when observing.
  • Number of bulbs: 4.
