5102-HD Bathroom Countertop Water Resistance Test Machine
5102-HD Bathroom Countertop Water Resistance Test Machine
5102-HD Bathroom Countertop Water Resistance Test Machine
5102-HD Bathroom Countertop Water Resistance Test Machine
5102-HD Bathroom Countertop Water Resistance Test Machine
5102-HD Bathroom Countertop Water Resistance Test Machine
5102-HD Bathroom Countertop Water Resistance Test Machine
5102-HD Bathroom Countertop Water Resistance Test Machine
Specifications
Brand Name :
HAIDA
Model Number :
5102-HD
Certification :
ISO 9001:2000; ISO 9001:2008
Place of Origin :
Guangdong, China (Mainland)
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash,escrow
Supply Ability :
30 Sets per Month Haida
Delivery Time :
5-8 work days
Packaging Details :
ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Temperature Control Range :
50℃-300℃
Spring Constant :
17.54±0.88 N/mm
Capacity :
200kg (Imported Sensor)
Maximum Test Force :
2T, 3T, 5T (optional)
Load Cell Capacity :
0~300KG(can be settable freely)
Diameter :
350mm
Force Sensor :
High precision brand sensors 7 sets
Application :
Seating with tilting backrest
Usage :
Used for testing the quality and performance of furniture
Air Supply :
7kgf/cm^2
Safety Features :
Designed with safety features to ensure operator's safety during testing
Function :
Evaluates the strength, durability, and safety of furniture
Cylinder Output Height :
30~48cm
Lower Platform :
390×400mm
Voltage :
Customize
Description

5102-HD Bathroom Countertop Water Resistance Test Machine

EQUIPMENT DETAILS

5102-HD Bathroom Countertop Water Resistance Test Machine

APPLICATIONS & TEST PURPOSE:

This is applicable for testing the performance of washbasin cabinets and shower chairs (stools) under the rainy climate conditions. After testing, the performance of the product is determined to meet the requirements through verification, in order to facilitate the design, improvement, calibration, and factory inspection of the product.

STANDARD:

GB/T24977-2024 General technical specifications for bathroom furniture -8.4 Water resistance test for washbasin cabinets and shower chairs (stools)

PRODUCT FEATURES:

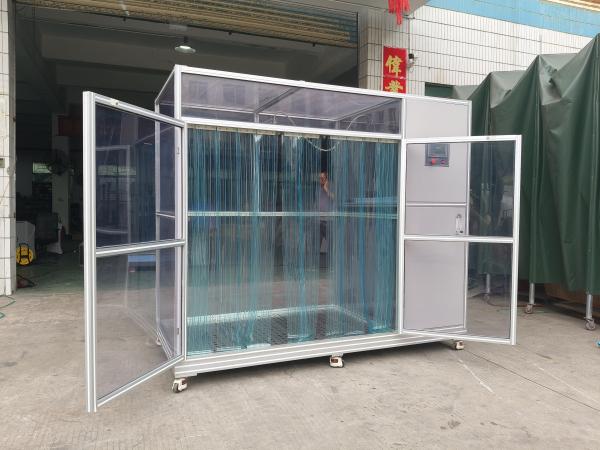

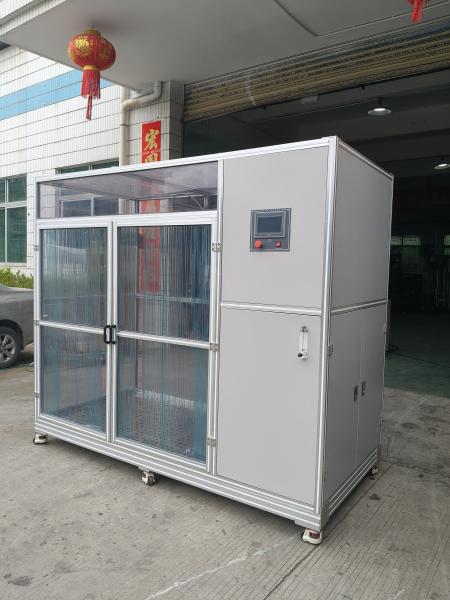

  • Main frame: Adopting a frame structure design, customized thickened aluminum profiles are used to make the frame, which is beautiful and elegant; The outer frame is surrounded by acrylic waterproof material, and the condition of the test sample can be observed at any time.
  • The bottom is equipped with universal casters, which can be easily moved.
  • Using PLC controller to control the action of the instrument, the operation is intuitive and simple
  • The testing time can be set, with one click start, automatic shutdown, and simple intelligence.

MAIN TECHNICAL PARAMETERS:

Aluminum alloy frame Composed of 80 * 80 thick heavy-duty aluminum profiles
Spray head hole (50-80), hole diameter: ≤ 4.0
Test water temperature less than 30 ℃
Test flow rate 10L/min -12L/min
Flow rate 10-12L (adjustable)
Testing time 10 minutes
Test height 1500~1800mm (manually adjusted), with a ruler for height positioning
Control mode PLC control, 7-inch display screen operation
Count Ø 0~999999 times can be set
Internal dimensions for instrument testing 1800 * 1000 * 2000mm
External dimensions 1900 * 1100 * 2000mm
Power supply 220V 50HZ
Power 1KW
Protection device water leakage, power outage, short circuit
