Specifications
Brand Name :
Haida
Model Number :
5079-HD
Certification :
CE,,ISO
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
L/C,T/T,D/A,D/P,Western Union,MoneyGram
Supply Ability :
300 Sets per Month
Delivery Time :
20 days after order confirmed
Packaging Details :
each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Impact Angle :
90 degree
Time Resolution :
1s
Design Standards :
¢84mm×45mm
Measurement Accuracy :
±3%
Testing Angle :
20°,30°,40°
Material Sound Velocity :
1000-9999m/s
Roller Speed :
40±1r . p . m
Injection Capacity :
40*65 cm³
Timing Range :
3min(can be set arbitrarily)
Working Size :
Diameter 160*44(mm) Center height 214mm
Constant Temperature :
50℃± 0.5℃ and 100℃± 0.5℃
Peeling Angle :
90°
Dimension :
550x440x690 mm
Outer Dimension :
(L×W×H) 500×200×300 mm
Type :
single hammer hand
Description

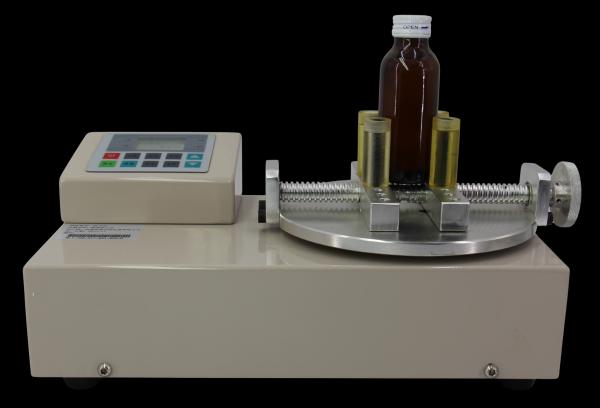

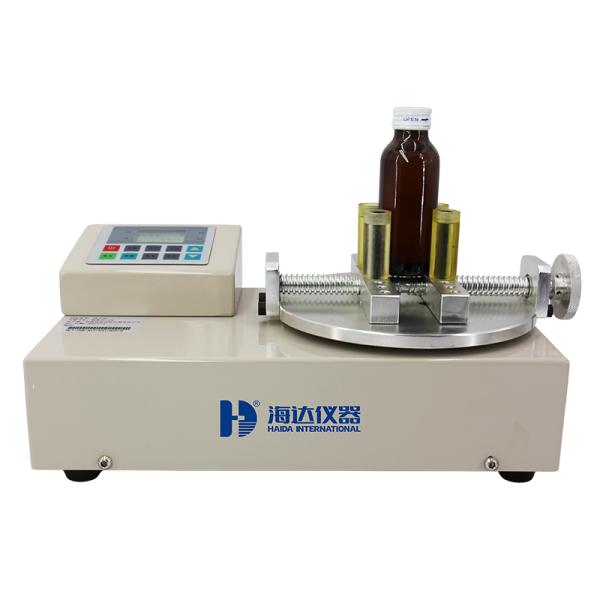

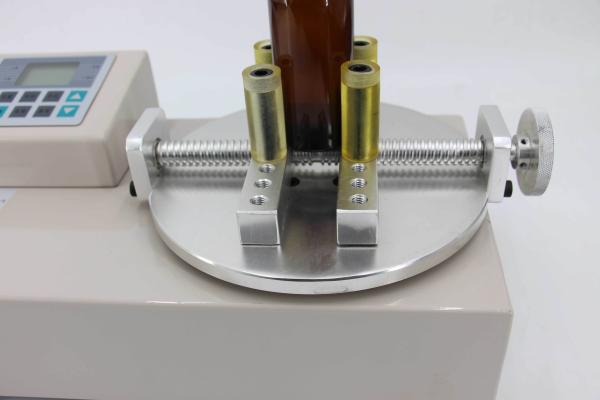

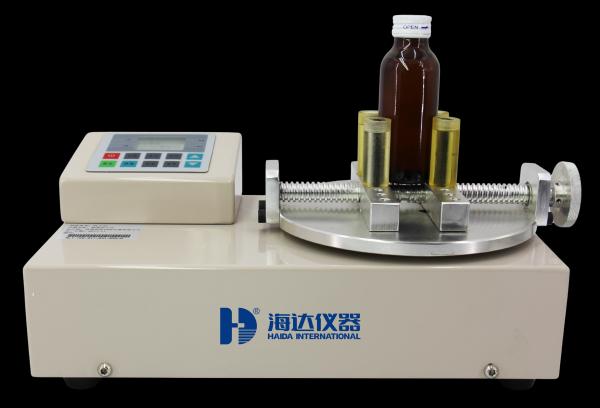

EQUIPMENT DETAILS OF 5079-HD BOTTLE CAPPING TORQUE TESTER
EQUIPMENT DETAILS OF 5079-HD BOTTLE CAPPING TORQUE TESTER

***Picture for reference

PRODUCT DESCRIPTION

Bottle Capping Torque Tester is suitable for the pharmaceutical, food and beverage, filling industry, etc., such as bottle packaging products, hose packaging products, cap closure of the nozzle packaging products, accurate torque testing of opening.

MAIN FEATURE
  1. Microcomputer control, LCD liquid crystal display;
  2. The test data is continuously collected, and the peak value is automatically maintained;
  3. Dual mode design of locking force and opening force;
  4. The standard unit of test results does not require manual conversion;
  5. Test times can be set, data deletion, statistics function;
  6. Power-down memory of test parameters;
  7. Automatic reset, intelligent fault prompt, overload protection;
  8. Small size, convenient operation, reliable performance, fast test;
  9. N.m, kg.cm, lb.in are converted mutually;
TECHNICAL PARAMETERS
Item Description
Measuring range 0~99ib.in
Resolution 0.001 Nm
Accuracy ±0.5%
Display mode Touch screen ; LCD display
Unit N.m; kg.cm; ib.in; N.cm
Clamping range Ф25mm~Ф170mm (Diameter)
Power supply 5V rechargeable battery
AC220V 50HZ power adapter
Data output method Micro printer, optional PC output
Save quantity 1~99
Machine size 330*200*200mm
Weight 15 KG
Design standard GB/T 17876,ASTM D 2063, ASTM D 3198, ASTM D 3474
About us

Haida International Equipment Co,Ltd

Haida International Equipment Co,Ltd was established in 2004, located in Dongguan city, Guangdong Province, China, is specialized in production and R&D of various material physical properties testing equipment. We have our own independent research and development center and four testing equipment production lines: textile, footwear, leather, mask. In 2006, textile, footwear, leather mask testing equipment officially put into production and entered the international market.

Why choose us?
  • Design & Production : Solution Consultation for each order
  • Recommend the most cost -performance machine
  • Research & Develop the suitable one for Special- designed Model.
  • Shipping & Delivery: One-Stop Service
  • Production- Deliver to your door - Installation & Training- Technical Support
  • Warranty
  • 1 year warranty with lifetime technology support
  • After-Sale Service
  • React within 2 Hours
  • Video inspection & on-site service combined
FAQ

Q: How about your warranty?

A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.

Q: What is the order process?

A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and debugging- packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out - Customer Receiving - After Service.

Q: Can we visit your factory before order?

A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up you from airport.

Q: Do you accept customization service?

A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.
