HD-F801-2 Gas Chromatography
HD-F801-2 Gas Chromatography
HD-F801-2 Gas Chromatography
HD-F801-2 Gas Chromatography
Specifications
Brand Name :
HAIDA
Model Number :
HD-F801-2
Certification :
ISO 9001:2000; ISO 9001:2008
Place of Origin :
Guangdong, China (Mainland)
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash,escrow
Supply Ability :
30 Sets per Month Haida
Delivery Time :
5-8 work days
Packaging Details :
ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Loading Frequency :
can be set
Test Stroke :
1000mm
Impact Height :
152mm
Warranty :
1 year
Backrest Load :
400N
Test Results :
Output by built-in printer
Temperature Resolution :
±0.1℃
Counter Range :
0-99999 times
Handrail Loading Force :
250N
Flame Height :
35mm
Induction Mode :
Precision load cell
Machine Specifications :
6.8 m × 2.6 m × 2.4 m
Dimensions :
3.5m x 2.4mx2.4m
Air Pressure :
4 ~ 7 bar
Position Resolution :
min. 0.2 mm
Description

HD-F801-2 Gas Chromatography

HD-F801-2 Gas Chromatography

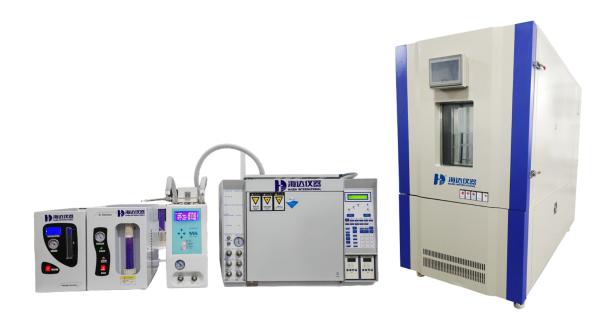

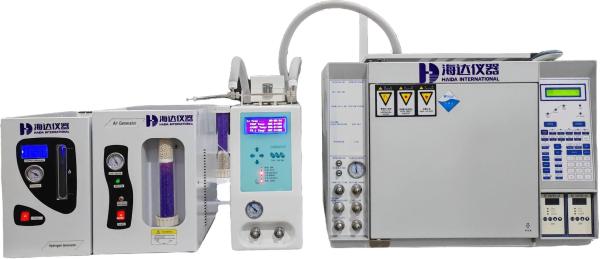

A whole set: Automatic thermal desorption apparatus+ Gas Chromatography+Hydrogen generator +Air generator

Technical Parameters of Gas Chromatography

Furnace size

28x 30 x18cm

Temperature range

Temperature setting

1℃

programmed heating rate

0.1℃

Maximum heating speed

120℃/ min

Temperature stability

0.01℃when the ambient temperature changes by 1℃

Programmed temperature rise

7-step programmed temperature rise

Loss compensation of operable column

dual channel

Power supply

220V±10%,2500W (maximum)

Volume

57x 55 x48 cm

Weight

around 50kg

Technical Parameters of Detector:

Hydrogen flame ionization detector (FID)

Maximum operating temperature

400℃

Detection limit

≤5 x 10-12g / S

Drift

≤5 x 10-13a / 30min

Noise

2 x 10-13a

Dynamic linear range

≥107

Thermal conductivity cell detector(TCD)

Maximum operating temperature

400℃

Sensitivity

≥10000 mv.ml/mg[n-C16]

Drift

≤100uv / 30mi

Noise

≤20ua

Dynamic linear range

≥104

Electronic capture detector (ECD)

Maximum operating temperature

350℃

Detection limit

≤6×10-15 g / ml (γ - 666)

Drift

≤50uv / 30min

Noise

≤20uv

Dynamic linear range

≥104

Technical Parameters of Automatic thermal desorption apparatus

Temperature control range of sample area

5℃-400℃; Heat power:200W

Temperature control range of valve injection system

5℃-180℃; Heat power:60W

Sample transfer line temperature control range

5℃-200℃; Heat power:40W

Temperature Control Accuracy

< ±0.1℃

Temperature control gradient

< ±0.1℃

Desorption recovery

> 95%

Analog sampling flow

100ml/min

Blowback cleaning flow

0~200ml/min

Machine Size and Weight( L x W x H)

400x170x300mm,Around 12kg
HD-F801-2 Gas Chromatography HD-F801-2 Gas Chromatography HD-F801-2 Gas Chromatography
