HD-F801-1 VOC Test Chamber EQUIPMENT DETAILS
HD-F801-1 VOC Test Chamber EQUIPMENT DETAILS
Specifications
Brand Name :
HAIDA
Model Number :
5100-HD
Certification :
ISO 9001:2000; ISO 9001:2008
Place of Origin :
Guangdong, China (Mainland)
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash,escrow
Supply Ability :
30 Sets per Month Haida
Delivery Time :
5-8 work days
Packaging Details :
ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Sample Size :
80mm × 300mm
Range Of Rotation :
0-360°
Armrest Height :
650-780mm
Weight :
150Kg
Timing Range :
0-999S
Closing Force :
50+/-5N
Loading Weight :
100lb or 225 lb
Force Sensor :
High precision brand sensors 7 sets
Rate :
8 ~ 12 times / min
Resolution :
0.1kg, 0.98N, 0.22LB
Max Load Capacity :
1000kg
Number Of Cycles :
1~500,000
Static Test Accuracy :
±0.1%
Flow Measurement Range :
10~100m1/min
Test Height :
300-600mm
Description

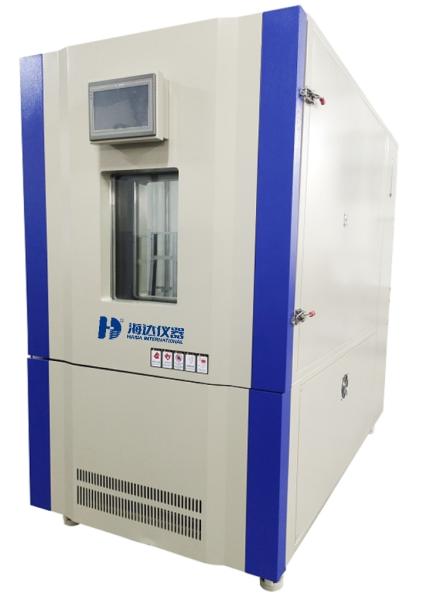

HD-F801-1 VOC Test Chamber
EQUIPMENT DETAILS

It is used to test VOC (volatile organic compound) emission of various wood-based panel, composite wood flooring, carpet, carpet padding, and other interior decoration materials, also other building materials under constant temperature humidity.

Working Principle

Put sample into 1000L square test chamber, under specify temperature, humidity, air velocity. The VOC and formaldehyde will released from samples and mixed with the air in the chamber, the air will be drawn through the absorption bottle is filled with distilled water, all the formaldehyde in air dissolve in the water; Measure the amount of formaldehyde in the absorption solution and extraction of air volume, and show it by micrograms per cubic meter (mg/m³).

Design Standard

ISO 16000-9 <Part9: Determination of the emission of volatile organic compounds from building products and compounds from building products and furnishing—Emission test chamber method>

EN 16516 <Construction products: Assessments of release of dangerous substances – Determination of emissions into indoor air>

Main technical parameters
Item Specification
Inner dimension(W*D*H) (1±0.02)m3
External dimension(W*D*H) 1230*2150*2020mm(W*D*H)
Test temperature range (15- 40)℃ (deviation: ±0.5℃, Resolution 0.1℃) Adjustable
Humidity range (30- 80)% R.H. (accuracy:±3%, Resolution 0.1%) Adjustable
Background levels

Formaldehyde≤0.006mg/m³

TVOC≤0.02 mg/m³

Single VOC≤0.002 mg/m³
Air Velocity 0.1- 2m/s, Adjustable
Air replacement rate 0.5/h
Loading factor 0.4~1.8(m2/m3)
Flowmeter Electronic air flow meter
Leakproofness 1KPa relative pressure, leakage rate＜10-3*1m³/min, import and export air differ＜1%
Cooling system Aspero refrigerating compressor
Air supply system Oil-free air compressor, cold dryer
Adiabaticity The inner walls and doors of chamber shall have effective thermal insulation.
Material
  • Chamber using Jacket structure design
  • Two layers of stainless steel inner compartment
  • The middle air layer
  • The inner compartment with mirror stainless steel
  • Don’t produce and absorb formaldehyde and VOC
Air collector

Collector speed: 0.25L/min ~ 2.5L/min, accuracy:±5%

Collector time: 99 hours adjustable

Equipped with sampling tube, absorption bottle, gas sampler
Power Three-phase, AC380V,50Hz
Standard Test Chamber, sampling tube, absorption bottle
Test Standard:EN 16516
