EQUIPMENT DETAILS OF 5088-HD HEAT SEALING TESTER
EQUIPMENT DETAILS OF 5088-HD HEAT SEALING TESTER
EQUIPMENT DETAILS OF 5088-HD HEAT SEALING TESTER
EQUIPMENT DETAILS OF 5088-HD HEAT SEALING TESTER
EQUIPMENT DETAILS OF 5088-HD HEAT SEALING TESTER
EQUIPMENT DETAILS OF 5088-HD HEAT SEALING TESTER
Specifications
Brand Name :
Haida
Model Number :
5088-HD
Certification :
CE,,ISO
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
L/C,T/T,D/A,D/P,Western Union,MoneyGram
Supply Ability :
300 Sets per Month
Delivery Time :
20 days after order confirmed
Packaging Details :
each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Torque Range :
0-200MV
Control Temperature :
Within 70±1℃or 100±1℃to room temperature
Dimension :
550x440x690 mm
Power :
AC 220V
Air Supply :
0.6MPa
Roller Wheel Length :
460mm
Test Mode A :
Room temperature
Test Range :
Full range: 0.55-500mm
Test Station :
3
Temperature Display Error :
1℃
Injection Time :
0-9999s [Adjustable]
Material Sound Velocity :
1000-9999m/s
Heating Power :
4kw
Dispaly :
Digital
Specification :
20-88HRA, 20-100HRB, 20-70HRC
Description

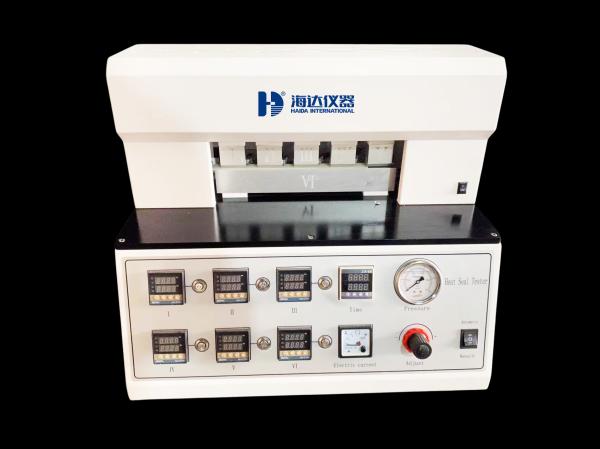

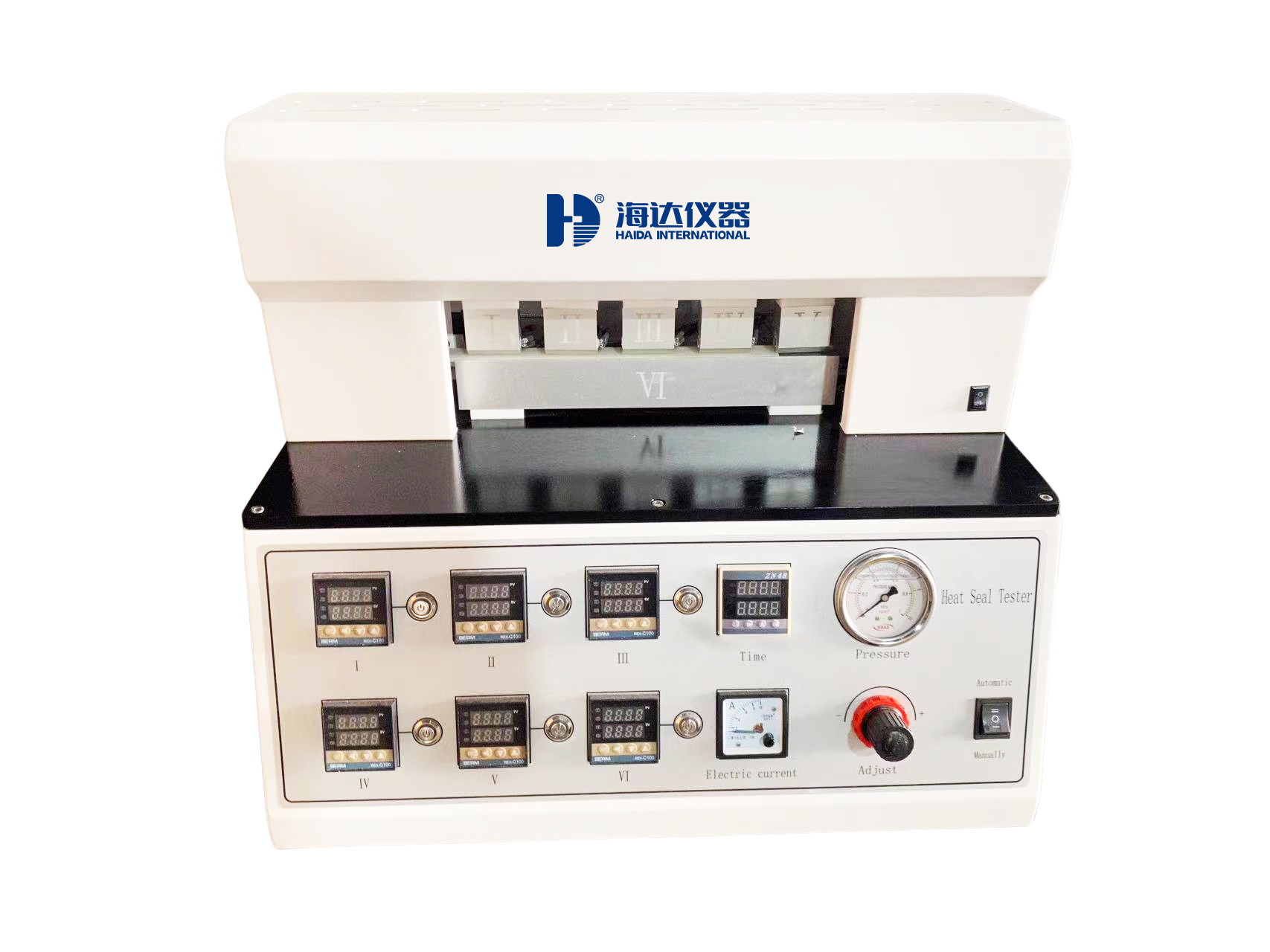

EQUIPMENT DETAILS OF 5088-HD HEAT SEALING TESTER

***Picture for reference***

PRODUCT DECRIPTION

Heat sealing tester adopt hot-pressing sealing method which is used to determination of plastic film base material, flexible packaging composite film, coated paper and other heat sealing compound film of heat sealing temperature, heat sealing time, heat sealing pressure parameters , to provide users with accurate heat sealing test index. Fully digital control system, the key parts adopt international famous brand products, a high degree of automation, easy operation.

TEST STANDARD

ASTM F2029, QB/T 2358, YBB 00122003

TECHNICAL PARAMETERS

Item

Description

Heat sealing temperature

RT+10~250℃

accuracy

±1℃

Heating sealing pressure

0~0.7Mpa(Adjustable)

Heating sealing time

0.01~99.99s(Adjustable)

Heating sealing surface(L*W)

40mmx10mm * 5 stations

Heating method

Single heating or double heating;

upper and lower sealing knives can be individually switched and individually temperature controlled

Test mode

Manual mode / automatic mode

(Manual mode is controlled by foot switch, automatic mode is controlled by adjustable delay relay);

Air pressure

≤0.7MPa (user-supplied)

Machine Dimension(L*W*H)

550*330*460mm

Net weight

Around 35kg

Power

1-PH, AC 220V,50Hz

Standard configuration

Foot switch + Air supply line + Air filter + Power cord
EQUIPMENT DETAILS OF 5088-HD HEAT SEALING TESTERABOUT US

Haida International Equipment Co,Ltd

Haida International Equipment Co,Ltd was established in 2004, located in Dongguan city, Guangdong Province, China, is specialized in production and R&D of various material physical properties testing equipment. We have our own independent research and development center and four testing equipment production lines: textile, footwear, leather, mask. In 2006, textile, footwear, leather mask testing equipment officially put into production and entered the international market.

EQUIPMENT DETAILS OF 5088-HD HEAT SEALING TESTER EQUIPMENT DETAILS OF 5088-HD HEAT SEALING TESTER EQUIPMENT DETAILS OF 5088-HD HEAT SEALING TESTER
WHY CHOOSE US?
  • Design & Production : Solution Consultation for each order
  • Recommend the most cost -performance machine
  • Research & Develop the suitable one for Special- designed Model.
  • Shipping & Delivery: One-Stop Service
  • Production- Deliver to your door - Installation & Training- Technical Support
  • Warranty
  • 1 year warranty with lifetime technology support
  • After-Sale Service
  • React within 2 Hours
  • Video inspection & on-site service combined
FAQ

Q: How about your warranty?

A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.

Q: What is the order process?

A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and debugging- packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out - Customer Receiving - After Service.

Q: Can we visit your factory before order?

A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up you from airport.

Q: Do you accept customization service?

A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.
