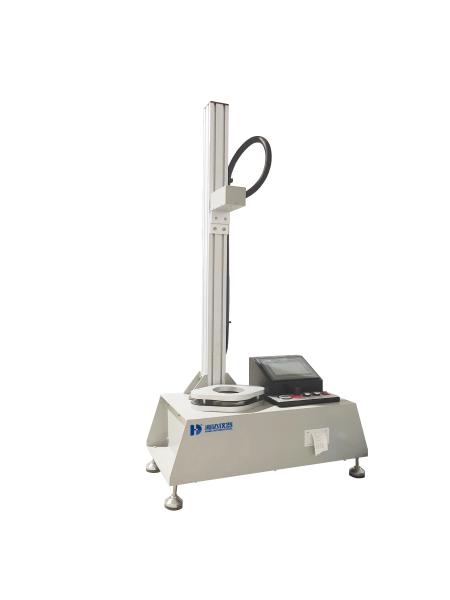

EQUIPMENT DETAILS OF 5085-HD DART IMPACT TESTER
EQUIPMENT DETAILS OF 5085-HD DART IMPACT TESTER
Specifications
Brand Name :
Haida
Model Number :
5085-HD
Certification :
CE,,ISO
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
L/C,T/T,D/A,D/P,Western Union,MoneyGram
Supply Ability :
300 Sets per Month
Delivery Time :
20 days after order confirmed
Packaging Details :
each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Injection Time :
0-9999s [Adjustable]
Torque Resolution :
0.001NM
Warranty :
1 year
Operating Method :
Electric Control
Heating Power :
4kw
Charging Time :
0~999·Programmable
Test Range :
0.005-300W/(m*K)
Displacement Accuracy :
0.01mm
Plunger :
Diameter9.4742±0.0076mm
Usage :
Testing
Test Mode A :
Room temperature
Screw Speed :
0~150 r.p.m
Temperature Range :
normal temperature--30°Cor -50°C
Specimen Holder :
Inner groove width 12mm
External Size :
900*500*800 (W*D*H)
Description
EQUIPMENT DETAILS OF 5085-HD DART IMPACT TESTER
SOFTWARE DETAILS

APPLICATIONS

Fall Dart Impact Testing Machine is used to test the impact resistance of various plastic films and slices, which meets the standards of ASTM D1709.

GENERAL SPECIFICATIONS

Estimated Packaging Dimensions: (L×W×H) 1020*600*2250mm

Estimated Gross Weight: 130kg

Power supply source: Single-phase, 220V±10%, 50/60Hz (can be appointed)

STANDARD FEATURES
Test Item Specification
Testing sample mass Method A: 50-2000g; Method B: 300-2000g
Testing accuracy 0.1g (0.1J)
Testing method Method A & Method B (Option)
Specimen size ＞150mm×150mm
Diameter of impacting head Method A:Ф38.1±0.1mm, Method B:Ф50.8±0.1mm
Diameter of dart shaft Ф6.5±0.1mm
Inner diameter of specimen fixture 125±2 mm
Impacting height Method A : 0-660mm, Method B: 0-1520mm
Weights Method A: 5g*2, 15g*8, 30g*8, 60g*8, 500g*2
Method B: 15g*2, 45g*8, 90g*8, 300g*2
Power Single-phase 220V, 60Hz
Estimated Weight 100kg
Specimen Fixture Pneumatic
ABOUT US

Haida International Equipment Co,Ltd

Haida International Equipment Co,Ltd was established in 2004, located in Dongguan city, Guangdong Province, China, is specialized in production and R&D of various material physical properties testing equipment. We have our own independent research and development center and four testing equipment production lines: textile, footwear, leather, mask. In 2006, textile, footwear, leather mask testing equipment officially put into production and entered the international market.

EQUIPMENT DETAILS OF 5085-HD DART IMPACT TESTER EQUIPMENT DETAILS OF 5085-HD DART IMPACT TESTER EQUIPMENT DETAILS OF 5085-HD DART IMPACT TESTER
WHY CHOOSE US?
  • Design & Production : Solution Consultation for each order
  • Recommend the most cost -performance machine
  • Research & Develop the suitable one for Special- designed Model.
  • Shipping & Delivery: One-Stop Service
  • Production- Deliver to your door - Installation & Training- Technical Support
  • Warranty
  • 1 year warranty with lifetime technology support
  • After-Sale Service
  • React within 2 Hours
  • Video inspection & on-site service combined
FAQ

Q: How about your warranty?

A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.

Q: What is the order process?

A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and debugging- packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out - Customer Receiving - After Service.

Q: Can we visit your factory before order?

A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up you from airport.

Q: Do you accept customization service?

A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.
