Comprehensive Textile Testing Equipment for Strength Testing of Single Yarn Made from Natural Fibers Cotton Wool and Jute
Comprehensive Textile Testing Equipment for Strength Testing of Single Yarn Made from Natural Fibers Cotton Wool and Jute
Comprehensive Textile Testing Equipment for Strength Testing of Single Yarn Made from Natural Fibers Cotton Wool and Jute
Comprehensive Textile Testing Equipment for Strength Testing of Single Yarn Made from Natural Fibers Cotton Wool and Jute
Specifications
Brand Name :
Haida
Model Number :
5142-HD
Certification :
ISO9001: 2008, CE, ...
Place of Origin :
china
MOQ :
1
Price :
Negotiation
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
300 sets per month
Delivery Time :
15 days after order confirmed
Packaging Details :
Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside.
Working Mode :
CRE
Control model :
LCD display(can be connect computer)
gripper :
Single gripper
Pressure Range :
0 ～ 4000Pa
Slip Width :
≤0.3nm
Burn Flame Altitude :
38mm
Counter :
0~999 999 can be set
Test Type :
UV Lamp
Connect :
USB2.0
Measuring Error :
≤±2％
Display Type :
Liquid crystal
Load :
2.5±0.1N; 5±0.1N; 10.0±0.2N
Weight :
Varies by model
Net Weight :
10 Kg
Quality :
high
Test Standard :
UL817
Speed Range :
0.01-300mm/min
Heating Method :
Electric heating
Description

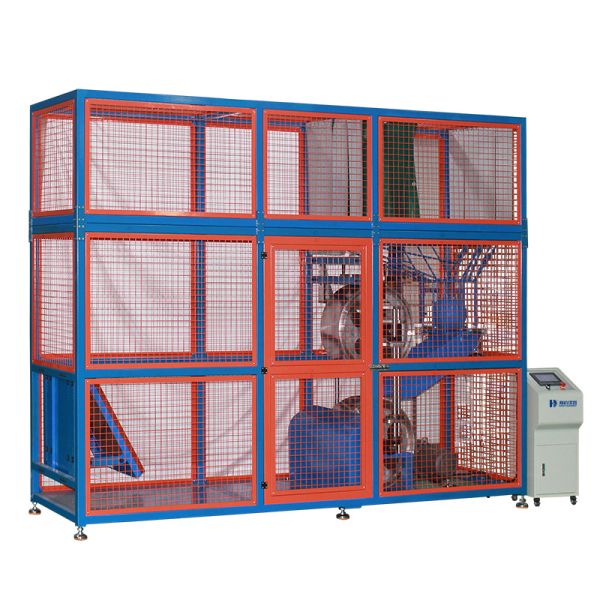

EQUIPMENT DETAILS OF 5142-HD Ball Dynamic Impact Tester

Comprehensive Textile Testing Equipment for Strength Testing of Single Yarn Made from Natural Fibers Cotton Wool and Jute

APPLICATIONS

This test is used to assess the dynamic impact resistance of basketballs, soccer balls, volleyballs, and handballs. Two high-speed rotating drums, positioned opposite each other, propel the specimen at high speed through friction and compression. The specimen impacts a rebound plate, which then bounces it back into a receiving funnel. Under gravity, the force transfers the specimen to the launching drums, where it is launched again. After a set number of tests, the pressure changes within the specimen are checked, along with any signs of cracking, implosion, peeling, delamination, thread breakage, or deformation.

STANDARD SPECIFICATION
Item Description
Drum Dimensions Center 600mm, Height 250mm
Angle between Rebound Plate and Ground 60°+ 2°
Distance between Drum and Rebound Plate 1950°+ 50mm
Impact Distance 2500°+ 50mm
Drum Speed (340~450) ± rpm
Spacing Scale Minimum graduation 1mm
Upper and Lower Drum Spacing 130~180mm (Adjustable)
Display and Control System PLC + HMI (7-inch Touchscreen)
Initial Velocity at Launch Point ≥50km/h
Dimensions 330*90*2500 cm(W*D*H)
Control Box 37*58*112mm
Weight 1400kg
Power Supply 3phase AC380V,50/60Hz
