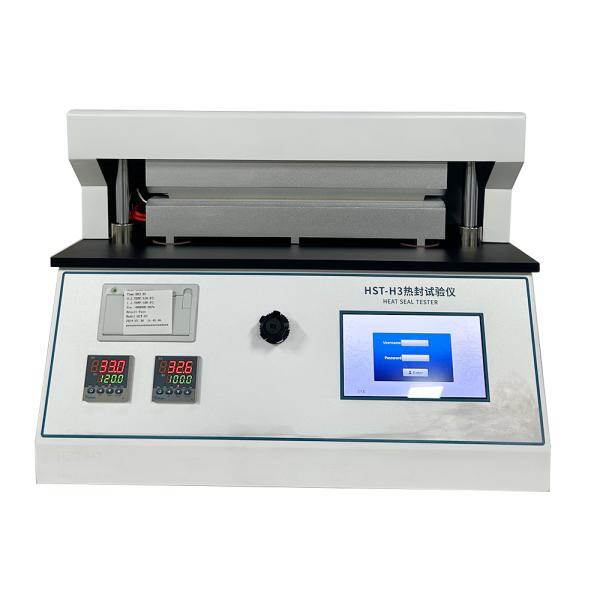

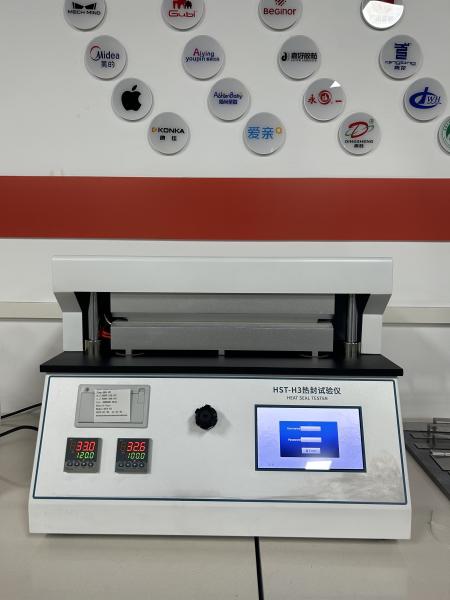

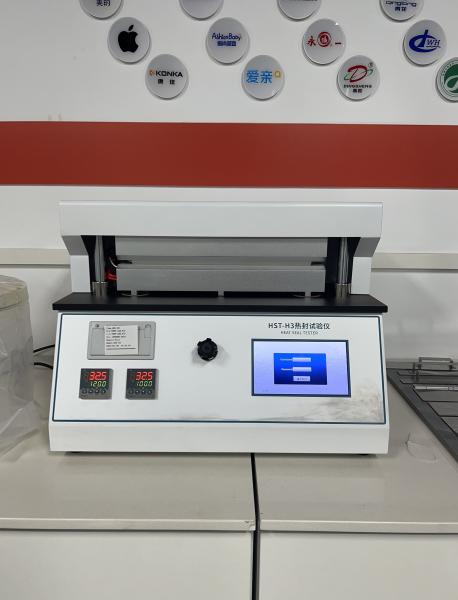

Heat Seal Tester Equipment For Plastic Film Room Temperature To 300℃ Standards ASTM F2029 YBB 00122003
Heat Seal Tester Equipment For Plastic Film Room Temperature To 300℃ Standards ASTM F2029 YBB 00122003
Heat Seal Tester Equipment For Plastic Film Room Temperature To 300℃ Standards ASTM F2029 YBB 00122003
Heat Seal Tester Equipment For Plastic Film Room Temperature To 300℃ Standards ASTM F2029 YBB 00122003
Heat Seal Tester Equipment For Plastic Film Room Temperature To 300℃ Standards ASTM F2029 YBB 00122003
Heat Seal Tester Equipment For Plastic Film Room Temperature To 300℃ Standards ASTM F2029 YBB 00122003
Specifications
Brand Name :
lixian
Model Number :
HZ-HST-H3
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
USD 3000~30000/per set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100 sets per month
Delivery Time :
7 days
Packaging Details :
wood
 Model :
HZ-HST-H3
Product name :
Rubber Small Mold Hot Press Machine Equipment
Dimensions :
305 mm (L) * 550 mm (B)* 421 mm (H)
Heat sealing temperature :
Room temperature ~ 300℃
Temperature control accuracy :
±0.2℃
Heat sealing time :
0.1 ~ 999.9s
Heat sealing pressure :
0.05 MPa ~ 0.7 MPa
Heat sealing surface :
330 mm *10 mm (customizable)
Heating form :
Double heating (single heating optional)
Air source pressure :
0.05 MPa ~ 0.7MPa
Description

Heat Seal Tester Equipment For Plastic Film Room Temperature To 300℃ Standards ASTM F2029, YBB 00122003

Heat Seal Tester Equipment summary:

heat sealing tester is suitable for testing plastic films, flexible packaging composite films and other materials to accurately measure parameters such as heat sealing temperature, heat sealing time and heat sealing pressure.Using the hot pressure sealing method, the sample to be sealed is placed between the upper and lower heat sealing heads, and the sample is sealed under the preset temperature, pressure, and time. After repeated trials, it provides guidance for users to find suitable heat sealing parameters.

The instrument complies with multiple national and international standards: QB/T 2358, ASTM F2029, YBB 00122003

Heat Seal Tester Product features 1.7-inch high-definition LCD touch screen, more intuitive content, more convenient operation 2. "fixed temperature micro-control" system, higher temperature control accuracy 3.Downward cylinder synchronization circuit to ensure pressure balance 4.Aluminum-filled heat sealing head ensures uniform heating of the heat sealing surface 5.Independent temperature control of upper and lower heat sealing heads, extra-long heat sealing surface design to meet the needs of different customers 6.Dual modes of manual and foot switches, humanized structural design 7.Anti-scalding design and leakage protection design, safer operation 8.Micro printer, which can conveniently print test results
Heat Seal Tester Basic application
Film material smooth surface
Applicable to heat seal test of various plastic films, plastic composite films, paper-plastic composite films, co-extruded films, aluminized films, aluminum foil, aluminum foil composite films and other film materials. The heat seal surface is a smooth surface, and the heat seal width can be designed according to user needs
Film material patterned surface
Applicable to heat seal test of various plastic films, plastic composite films, paper-plastic composite films, co-extruded films, aluminized films, aluminum foil, aluminum foil composite films and other film materials. The heat seal surface can be designed according to user needs
Extended application Customizable heat seal test of jelly cups, plastic hoses, yogurt cups, instant noodle bowls, atmosphere-controlled fresh-keeping boxes, self-supporting bags and other materials
Specification
Model Number
HZ-HST-H3
Dimensions
305 mm (L) * 550 mm (B)* 421 mm (H)
Heat sealing temperature
Room temperature ~ 300℃
Temperature control accuracy
±0.2℃
Heat sealing time
0.1 ~ 999.9s
Heat sealing pressure
0.05 MPa ~ 0.7 MPa
Heat sealing surface
330 mm *10 mm (customizable)
Heating form
Double heating (single heating optional)
Air source pressure
0.05 MPa ~ 0.7MPa
Power supply
AC 220 V 50 Hz
Net weight
40 kg
