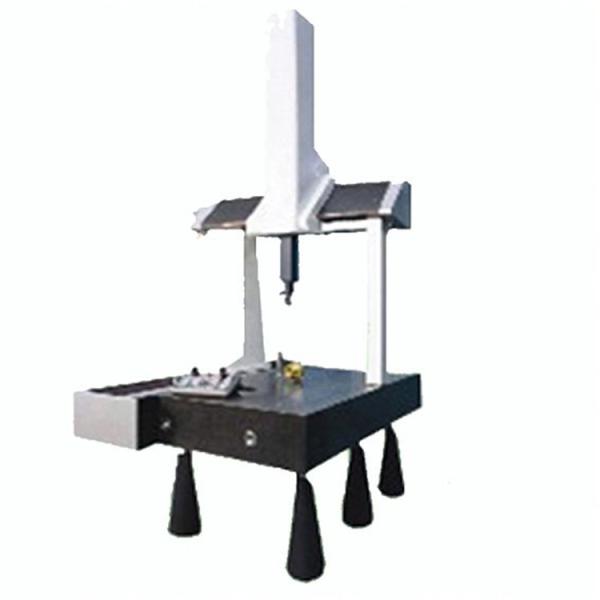

Automatic CMM Machine For Motorcycle, Military Industry, Electronics Max.Workpiece Weight 500kg
Automatic CMM Machine For Motorcycle, Military Industry, Electronics Max.Workpiece Weight 500kg
Specifications
Brand Name :
lixian
Model Number :
HZ-3504
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
negotiate
Payment Terms :
L/C, D/A, D/P, T/T, Western Union,
Delivery Time :
7days
Packaging Details :
wooden
PRODUCT NAME :
Automatic CMM Machine for motorcycle, military industry, electronics
Measuring Range（mm） :
X 500 Y 600 Z 400
Overall Dimensions （mm） :
X 1250 Y 1500 Z 2500
Resolution （um） :
0.5
Maximum Permissible Erro :
2.7+L/ 250
Max.Velocity （mm/s） :
0.6~0. 8Mpa
Max.Workpiece Weight（kg） :
500
Machine Weight（kg） :
650
Application :
automobile, motorcycle, military industry, electronics
warranty :
1 year
Description

Automatic CMM Machine For Motorcycle, Military Industry, Electronics Max.Workpiece Weight 500kg

CMM Machine Equipment Summary:

HZ-3504A Automatic CMM Machine High stability measurement system, can effectively finish generic detection will need, and greatly improve the detection efficiency. Mainly used in aviation, automobile, motorcycle, military industry, electronics, mould etc.

CMM Machine The main function:
1,Unilateral activities bridge type structure, which can improve athletic performance,ensuring measurement accuracy and stability.
2,Triaxial guide adopts high precision natural granite, have the same temperature.characteristic and rigidity.
3,Triaxial slideway are used from clean type pre-load high-precision air bearing, exercise more stable and guide never suffer wear.
4,RENISHAW Siliconised open metal grating feet, closer to thermal expansion coefficient matrix of granite, improved facilities stability.
5,RENISHAW High speed automatic control system, inline 32bit mpu, truly realize real-time control; Fluctuation position by using optical fiber communication, strengthened the electrical anti-interference ability.
6,Powerful tri-ordinate measuring software SEREIN - DMIS, with simple and friendly user interface, easy operation,wizard-style easy to use, can undertake quickly set benchmark, size inspection, point inspection, rapidly developed the test report.
7,Software can be equipped with CAD module, has the off-line programming and teachings type programming function, the program can be repeated execution and higher productivity, illustrated report output, can watch, printing, cross-platform relay.
8,Measuring results can directly into standard data output document (IGES or DXF), support reverse engineering.

Model Number
3504A
Measuring Range(mm)
X 500 Y 600 Z 400
Overall Dimensions (mm)
X 1250 Y 1500 Z 2500
Resolution (um)
0.5
Maximum Permissible Erro
2.7+L/ 250
Max.Velocity (mm/s)
300
Air Requirements ( kg/cm ² , NL/min)
0.6~0. 8Mpa
Max.Workpiece Weight(kg)
500
Machine Weight(kg)
650
Product name
Electronics Automatic CMM Machine
