High Temperature Universal Testing Machine High Precision 0.5 Grade Accuracy For Steel Metal
High Temperature Universal Testing Machine High Precision 0.5 Grade Accuracy For Steel Metal
High Temperature Universal Testing Machine High Precision 0.5 Grade Accuracy For Steel Metal
High Temperature Universal Testing Machine High Precision 0.5 Grade Accuracy For Steel Metal
High Temperature Universal Testing Machine High Precision 0.5 Grade Accuracy For Steel Metal
High Temperature Universal Testing Machine High Precision 0.5 Grade Accuracy For Steel Metal
Specifications
Brand Name :
lixian
Model Number :
HZ-1003C
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
negotiate
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
negotiate
Delivery Time :
7 days
Packaging Details :
wood
MODEL :
HZ-1003C
Measuring accuracy :
Tolerance ±1% / tolerance ±0.5%
Warranty :
1 Year
Usage :
Tensile Testing Machine
Standard :
BS.EN.ASTM,DIN,ASTM,ASTM E8/A370/ISO 75001,ISO
Control System :
Microcomputer Control System
Data Output :
USB
Data Processing :
Real-time Data Processing
Display :
7-inch LCD Touch Screen
Load Accuracy :
0.5grade
Load Cell :
High Precision Load Cell
Max Load :
20kN
Model :
tensile Testing Machine
Power Supply :
220V/50Hz
Safety Protection :
Overload/Over-current Protection
Software :
Windows-based Software
Description

High Temperature Universal Testing Machine High Precision 0.5 Grade Accuracy UTM For Steel Metal

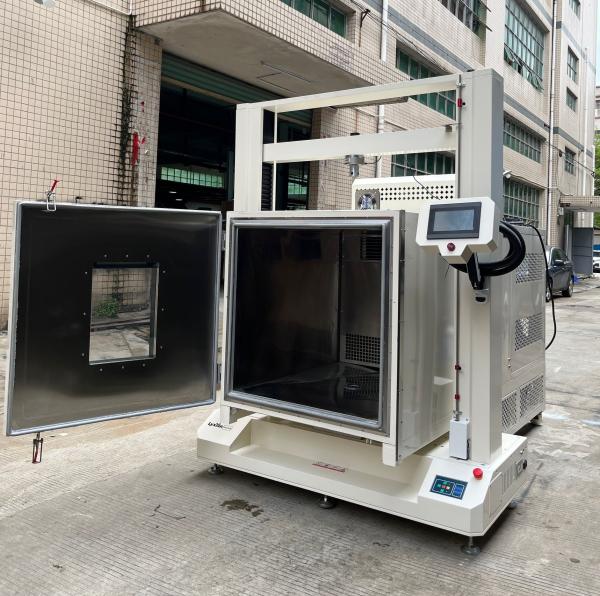

High temperature Tensile testing machine HZ-1003C
20 KN UNIVERSAL TEST MACHINE WITH OVEN can be applied to test lots of materials in rubber tensile elongation, compression, tear, big size peel and other mid-force mechanical test(20KN), such as tires, belt, shoes, plastic,film, acrylic, FRP, ABS, EVA, PU, aluminum-plastic pipe, composite materials, waterproof materials, fibers, textiles, wire and cable, paper, gold foil, ribbons, thread, spring, wood, medicine packaging materials, tapes etc.
Model Number
HZ-1003C High temperature Tensile testing machine
Motor
Taiwan “Delta” servo motor and drive
Temperature range
-70~150°C,Room temperature~ 1000degree
Max. load
20KNelongation test instrument option
Accurate grade
0.5 grade
Effective measuring range
Force from 0.2% to 100% (1grade) / from 0.4% to 100% (0.5 grade)
Measuring accuracy
Tolerance ±1% / tolerance ±0.5%
Tester resolution
Max load 1/200000, constant resolution
Effective tensile space
400, 500, 600mm or requirement
Testing speed
From 0.001 to 500mm/min
Cooling system
Compression from France

High temperature Tensile testing machine Control System
Support open editing test, editorial standards and editorial procedures,
Adopt an open statement in the form of EXCEL, to support user-defined report format;
Print the query testing results flexibility, support for printing multiple samples, custom sorting print projects
Procedure supports hierarchical management levels (administrator, tester) user management rights;

High temperature Tensile testing machine standard :QC-506M2F-LWH

High Temperature Universal Testing Machine High Precision 0.5 Grade Accuracy For Steel Metal

High temperature Tensile testing machine UTM Fixture

Tensile machine grips is an indispensable part of the universal test machine. Different materials need different fixture, is also a significant factor whether the test can be carried out smoothly and the accuracy of the test results. Tension testing machine fixture is an indispensable part of electronic tension testing machine. It determines the size of the fixture structure and the size of the labor intensity of the fixture operation. Tensile testing machine fixture in the structure of no fixed mode, according to different samples and test force size, in the structure of a great difference. The company provides tensile machine grips custom services to customers around the world and export UTM for 23 year.
