Servomotor Driven 500mm/min 3KN Toys Testing Equipment
Servomotor Driven 500mm/min 3KN Toys Testing Equipment
Specifications
Brand Name :
HTI
Model Number :
TW-404
Certification :
EN 71-8, ISO8124-4
Place of Origin :
Guangdong,China(Mainland)
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
10 sets per month
Delivery Time :
20 working days
Packaging Details :
Plywood Package
Model Name :
TW-404
Comply with Standard :
EN171-8,ISO8124-4
Power :
220V 50Hz
Original Place :
Made in China
Purpose :
Swings and Activity Toys Stability Test-Horizontal Thrust Test
Description

EN71-8 TW-404 Swings and Activity Toys Stability Tester-Horizontal Thrust Tester

Catalogue for EN71-8 Test Apparatus.pdf

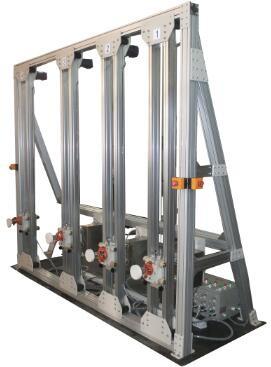

TW-404 Swings and Activity Toys Stability Tester-Horizontal Thrust Tester

This instrument is used to test the stability performance for activity toys and swings.

Principle: A horizontal force is applied at the top of the toy to simulate a child climbing on the toy, observe whether the toy tips over.

A horizontal force is simultaneously applied at each suspension point to simulate the horizontal forces created by pendulum effect, observe whether the toy tips over.

Standards: IS9873-4, ISO 8124-4 6.1.2 Stability of activity toys with a free height of fall of more than 600 mm (see 4.5.3);

ISO 8124-4 6.1.2 6.1.4 Stability of swings and other activity toys with crossbeams (see 4.7.1)

EN71-8 6.2.4 Stability of swings and other activity toys with crossbeams

Specification:

Force capacity: 3kN

Force loading direction: horizontal

Force loading actuator: four stations

Force accuracy: dynamic ±5%

Force resolution: 1/1000

Loading stokes: 28cm

Force loading point height: 30~180cm

Test speed: 0~500mm/min adjustable

Rise and up speed: 800mm/min

Time: 0~9999 adjustable

Force control: closed-loop control

Motion: Servomotor

Control: PC+ professional test software

Dimension (WxDxH): 280x120x240cm

Weight: ≈650Kg

Power: 1∮ AC 220V 50Hz 3A
