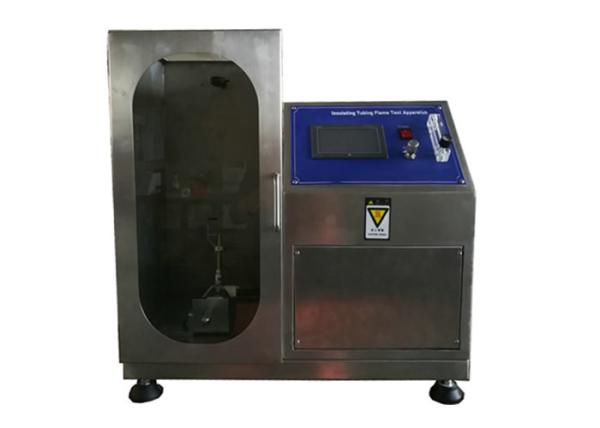

Fire Resistance Flammability Testing Equipment With 220V 50Hz Power
Fire Resistance Flammability Testing Equipment With 220V 50Hz Power
Specifications
Brand Name :
HTI
Model Number :
HTE-011
Certification :
UL224-1/2
Place of Origin :
Guangdong,China(Mainland)
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
10 sets per month
Delivery Time :
15 working days
Packaging Details :
Plywood Package
Product Name :
UL 224 Standard Fire Resistance Tester
Model Name :
HTE-011
Dimension :
305(L)X355(D)X610(H)
Comply with Standard :
UL224-1/2
Weight :
30KG
Power :
220V 50Hz
Original Place :
Made in China
Description

UL 224 Standard Fire Resistance Tester For Extruded Insulation Tubing Testing

Application:

This instrument is used to test flammability performance of insulating tubing by using a tirrill gas burner in a specified metal chamber.

Technical Parameters:

1.Stainless steel chamber with three-sided metal enclosure,the top and front side open, size is305x355x610mm.

2.Original Imported Tirrill gas burner with length100+/-10mm, inner diameter9.5+/-0.3mm, the flow of gas and air flow could be adjustable.

3.Base burner wedge , tilting the barrel 20degree from the vertical.

4.High-voltage pulse automatic fire up and fire off.

5.PLC+Touch scree control,easy operation and real test data display

6.Automatic timing, automatic burning rate counting and data saving.

7.Equipped with thermocouple for flame temperature measurement

8.Size(WxDxH):Metal Chamber 305(L)X355(D)X610(H)mm; control box: 450(L)X330(D)X300(H)mm

9.Weight: approx 30Kg

10.Power: AC 220V , 50/60Hz, 2A

11.Gas source: industrial propane( or other gas source which has the high temperature)

Comply With Standards:

UL224 6.9 flame test-all tubing, 6.10 optional VW-1 (vertical wire) flame test

UL224.pdf
