Clicking and Slide Repeat Durability Testing Machine for Touch Screen of Phone&Tablet PC
Clicking and Slide Repeat Durability Testing Machine for Touch Screen of Phone&Tablet PC
Specifications
Brand Name :
SKYLINE
Model Number :
SL-FL40
Certification :
Calibration certificate
Place of Origin :
CHINA
MOQ :
1 unit
Price :
negoitable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1 unit
Delivery Time :
35 work days
Packaging Details :
Plywood case
SKYLINE :
Touch Screen Clicking and Slide Tester
Test Station :
4 (work at the same time)
Load Weight :
250gf(Can be adjustable)
Test speed :
30-4500mm/min (adjustable)
Working power :
AC220v, 50HZ
Description

Product introduction

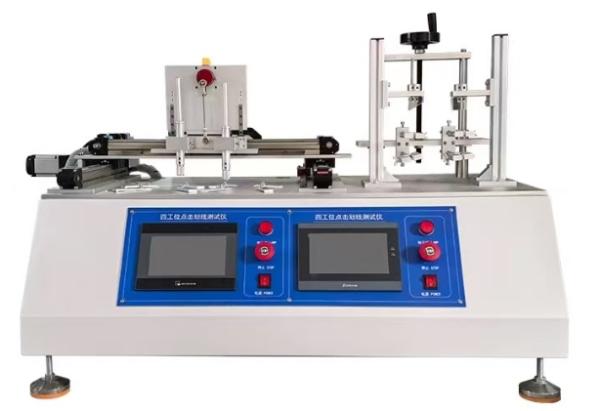

The Touch Screen Clicking and Slide Tester is a dedicated testing device for small consumer electronic screens such as resistive screens, capacitive screens, mobile phone screens, e-books, MP4 players, and electronic dictionaries. The equipment mainly performs click/grid drawing on hand-written screens and touch screens, simulating normal human operation of touch screen products. It tests whether the touch screen will experience dead screen, failure, overloading, misalignment, etc.

Technical Parameter

Model SL-FL40
Test Station 4 Stations, 2 for clicking and 2 for slide
Counter 0-999999time can be set
Speed 30-4500mm/min (adjustable)
Control System Touch Screen Control
Y-axis movement range 150mm
X-axis movement range 120mm
Force 250gf(Can be adjustable)
Control Mode A,Digitally set the operating speed (X/Y/Z axis)
B,Digitally set the running displacement (X/Y axis)
C,It can draw straight lines, rectangles, triangles and circles
Power 800W
Working Power AC220V/50Hz/5A
Dimension 80*60*45cm
Weight 60Kg
Accessory One operation manual, one power cord, and one set of Allen sockets
