Specifications
Brand Name :
SKYLINE
Model Number :
SL-T01
Certification :
Calibration certificate
Place of Origin :
CHINA
MOQ :
1 unit
Price :
negoitable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1 unit
Delivery Time :
35 working days
Packaging Details :
Plywood case
SKYLINE :
Chair Armrest Testing Machine
Armrest Height :
650-780mm
Standard :
ANSI/BIFMA X5.1-2011 11.4 Front Corner Load-Ease Test-Cyclic–Off-center
Brand :
SKYLINE
Parallel Force :
100-200lb
Warranty :
18 months
Description
EN 1335-3 Office Chair Testing Machine For Chair Armrest Pull Resistance Ability
Use

Chair Armrest Testing Machine is used to evaluate the pull-resistance ability of the armrest at parallel direction, to determine its fatigue life under parallel strength. Fix the caster, set the time, and pulling strength and time for automatically reposition.

This test machine use for progress an arm rest horizontal static test and durability & arm rest vertical test static and durability based on BIFMA X5.1 and BIFMA X5.4

Specifications​

Armrest Height 650-780mm or specified
Timer LCD 0.01sec-99.9sec, 1sec-99 minute 99 second
Machine Size 1200*500*1000mm
Parallel Force 100-200lb
Force Stroke 0-24 inch or specified
Counter LCD 0-999,999 times
Weight 250kg
Power 1 £, AC220V, 3A


Standards

  • EN1728
  • EN1335-3 2009 5.7
  • ANSI/BIFMA X5.1-2017 10.4 Front Corner Load-Ease Test - Cyclic - Off - center
  • ANSI/BIFMA X5.1-2011 11.4 Front Corner Load-Ease Test-Cyclic–Off-center
  • ANSI/BIFMA X5.1-2011 20 Footrest Durability Test-Vertical-Cyclic
  • ANSI/BIFMA X5.1-2011 21 Arm Durability Test - Cyclic

EN 1335-3 Office Furniture Testing Equipment For Chair Armrest Pull Resistance Ability

Test Procedure

BIFMA X 5.1 clause 20 (Arm Durability Test– Cyclic)

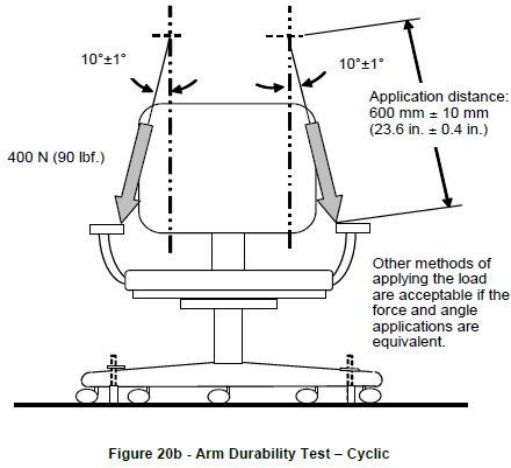

Simultaneously apply a force of 400 N (90 lbf.) to each arm initially at a 10 degrees ± 1 degree angle as shown in Figure 20b. The arm loading device must follow the arm (allow fore and aft, side-to-side and rotational movement) as it deflects or pivots. If using a test device similar to that shown in Figure 20b, the load application distance must initially be the length specified in the figure. Other methods of applying the load are acceptable if the force and angle applications are equivalent. The force shall be applied and removed for 60,000 cycles at a rate between 10 and 30 cycles per minute.

Test images:

EN 1335-3 Office Furniture Testing Equipment For Chair Armrest Pull Resistance Ability
