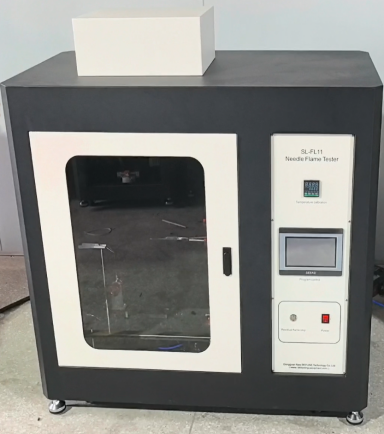

IEC61347 IEC 60695 Needle Flammability Tester Flame Test Chamber
IEC61347 IEC 60695 Needle Flammability Tester Flame Test Chamber
Specifications
Brand Name :
SKYLINE
Model Number :
SL-FL11
Certification :
CE ISO
Place of Origin :
Dongguan, Guangdong
MOQ :
1
Price :
Negociate
Payment Terms :
Western Union,MoneyGram,T/T,L/C,D/A,D/P
Supply Ability :
1 set/Month
Delivery Time :
15Days
Packaging Details :
Wooden Case
Description
IEC61347 IEC 60695 Needle Flammability Tester Flame Test Chamber
The Needle Flame Test Chamber is designed to evaluate fire resistance caused by internal faults such as leakage current in cables, wires, and similar components. This testing equipment complies with Chinese GB4706.1, GB5169.5, and international standards IEC60695-2-2 and IEC61347-1.
Applications
  • Electrical and electronic products
  • Components and accessories of household appliances
Key Features
  • Constructed entirely from stainless steel and brass materials
  • Automatic burner ignition system
  • Digital displays for temperature and test time monitoring
  • Large viewing window for convenient observation during testing
Technical Specifications
Needle Burner Inner hole diameter Φ 0.5mm ± 0.1mm, Diameter ≤ Φ 0.9mm, length ≥ 35mm, stainless steel
Burner Angle 0~45° (adjustable for flame height control)
Thermocouple Ø0.5mm Type K (Ni/Cr - Ni/Al), armored sheath withstands temperature -40°C to 1100°C
Burning Time 0-999.9 s ± 0.1 s adjustable (typically set to 30s)
Hold Burning Time 0-999.9 s ± 0.1 s, automatic recording with manual timeout
Flame Height 12mm ± 1mm (includes height measurement instruments)
Flame Gas Butane gas, minimum 95% purity (compatible with bottled lighter gases)
Temperature Test Range 0~1000°C
Flame Temperature Requirements From 100°C ± 2°C to 700°C ± 3°C within 23.5 seconds ± 1 second
Standard Copper Block 4mm ± 0.01mm, weight 0.58g ± 0.01g before drilling, Cu-ETP
Test Process Automatic control with independent convulsions
Chamber ≥0.5m³
Control System Single chip microcomputer + touch screen control
Compliance Standards GB/T5169.10-2006, IEC60695-11-5:2000, UL746A
Power Supply 800VA, 220V, 48-60Hz
Display Panel Language English (customization available)
