EN 1149-3 Compliant Triboelectric Charging Decay Tester with Electrostatic Fieldmeter and PC Evaluation Software for Protective Clothing
EN 1149-3 Compliant Triboelectric Charging Decay Tester with Electrostatic Fieldmeter and PC Evaluation Software for Protective Clothing
EN 1149-3 Compliant Triboelectric Charging Decay Tester with Electrostatic Fieldmeter and PC Evaluation Software for Protective Clothing
EN 1149-3 Compliant Triboelectric Charging Decay Tester with Electrostatic Fieldmeter and PC Evaluation Software for Protective Clothing
EN 1149-3 Compliant Triboelectric Charging Decay Tester with Electrostatic Fieldmeter and PC Evaluation Software for Protective Clothing
EN 1149-3 Compliant Triboelectric Charging Decay Tester with Electrostatic Fieldmeter and PC Evaluation Software for Protective Clothing
EN 1149-3 Compliant Triboelectric Charging Decay Tester with Electrostatic Fieldmeter and PC Evaluation Software for Protective Clothing
EN 1149-3 Compliant Triboelectric Charging Decay Tester with Electrostatic Fieldmeter and PC Evaluation Software for Protective Clothing
Specifications
Brand Name :
SKYLINE
Model Number :
SL-F62
Certification :
CE, CO, Rosh, Form E, Calibrate Certificate...
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
10 sets/month
Delivery Time :
20 working days
Packaging Details :
Exported Plywood Package
Description
EN 1149-3 Triboelectric Charging Decay Tester for Protective Clothing
Professional testing equipment designed to determine the charging decay of protective clothing materials using the triboelectric charging method according to EN 1149-3 standard.
EN 1149-3 Compliant Triboelectric Charging Decay Tester with Electrostatic Fieldmeter and PC Evaluation Software for Protective Clothing EN 1149-3 Compliant Triboelectric Charging Decay Tester with Electrostatic Fieldmeter and PC Evaluation Software for Protective Clothing
Introduction

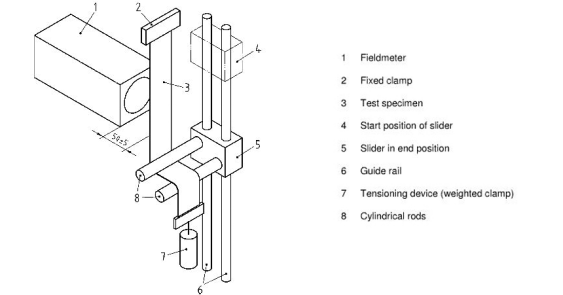

The Triboelectric Charging Decay Tester is professionally designed to determine charging decay using the triboelectric charging method according to EN 1149-3. Test materials are charged by rubbing against cylindrical rods mounted on a vertically running slider. The electrical field strength from the charge generated on the test material is observed and recorded using an electrostatic fieldmeter connected to a graphical recording device.
EN 1149-3 Compliant Triboelectric Charging Decay Tester with Electrostatic Fieldmeter and PC Evaluation Software for Protective Clothing
Test Standard
EN 1149-3
Key Features
  • Equipped with standard cylindrical rods and slider
  • Built-in tension meter provides precise loading on testing materials
  • Includes PC with evaluation software
Technical Specifications
Cylindrical rods Aluminum and HDPE
Field meter measuring range Up to 200kV/m
Response time <1ms
Loading pressure 1.3±0.05N
Speed 0.2±0.02m/s
Power supply 220V 50Hz-60 Hz
Dimensions 350mm*350mm*1070mm
Net weight 25 kg
