Building Materials Ignitability Tester GOST 30402 ISO 5657 Flammability Tester with 10Kw/m2 ~ 70kW/m2 Irradiance and 50W Output
Building Materials Ignitability Tester GOST 30402 ISO 5657 Flammability Tester with 10Kw/m2 ~ 70kW/m2 Irradiance and 50W Output
Specifications
Brand Name :
SKYLINE
Model Number :
SL-FL88
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
Negociate
Payment Terms :
T/T
Supply Ability :
1 unit/Month
Delivery Time :
15 working days
Packaging Details :
Plywood case
Irradiance :
10Kw/m2 ~ 70kW/m2
Out put :
50W
Packing Size :
162*100*210
Balance :
Accuracy 0.1g
Resolution :
0.1 kW/m2
Temperature range :
0℃ ~ 1000℃.
Description
Building Materials Ignitability Tester GOST 30402 ISO 5657 Flammability Tester
Product Overview
The SL-FL88 Building Material Ignition Performance Tester is designed for evaluating the ignition performance of building materials with thickness not exceeding 70mm when placed horizontally under specified thermal radiation conditions. This advanced flammability testing equipment effectively assesses wall and ceiling lining materials, flooring systems, exterior cladding, and thermal insulation materials for air ducts.
The tester accurately simulates specific fire scenarios, providing results that reflect real-world combustion performance. It clearly distinguishes between easily ignitable materials and fire-resistant materials, helping to evaluate material fire risks and ensure compliance with international safety standards.
Compliance Standards
This equipment is designed to meet the following international standards:
  • ISO 5657
  • GOST 30402
According to the official statement in GOST 30402-96, this standard was developed based on ISO 5657-86. The documentation explicitly states that the testing apparatus recommended is completely identical to the international standard.
Key Technical Specifications
Parameter Specification
Specimen Size 165 mm × 165 mm
Specimen Thickness Up to 70 mm
Radiant Flux Range 10 - 50 kW/m²
Heat Source 3 kW Radiant Cone
Ignition Mechanism Automatic pilot flame (4 sec cycle)
Advanced Features
  • Advanced PLC programming with computer control system
  • High-precision board and module control with PID control technology
  • 16-bit high-precision signal collection and processing (1% accuracy)
  • Professional Labview-developed software interface with high automation
  • Comprehensive propane air supply system with precise flow control
  • Designed testing environment maintains air velocity below 0.2 m/s
  • Effective smoke exhaust system without affecting test conditions
Technical Components
Complete system includes radiation cone, ignition device, nozzle, pressure plate mechanism, support frame, temperature recorder, gas system, signal acquisition and processing system, and computer.
Sample Racks and Pressure Plate
  • Constructed from 1.5mm thick stainless steel
  • 25mm x 25mm square steel tube frame
  • Total size: 275mm × 230mm
  • Horizontal protection board: 220mm side length, 4mm thickness
  • Features vertical guide rods and adjustable pressure system
  • Includes counterweight system for consistent 20N pressure application
Radiation Cone Specifications
  • Rated power: 3kW
  • Radiation intensity range: 10kW/㎡ to 70kW/㎡
  • 3500mm long, 8.5mm diameter stainless steel heating element
  • Ceramic fiber insulation with 100kg/m² density
  • Precision heating element positioning with ≤10% opening area obstruction

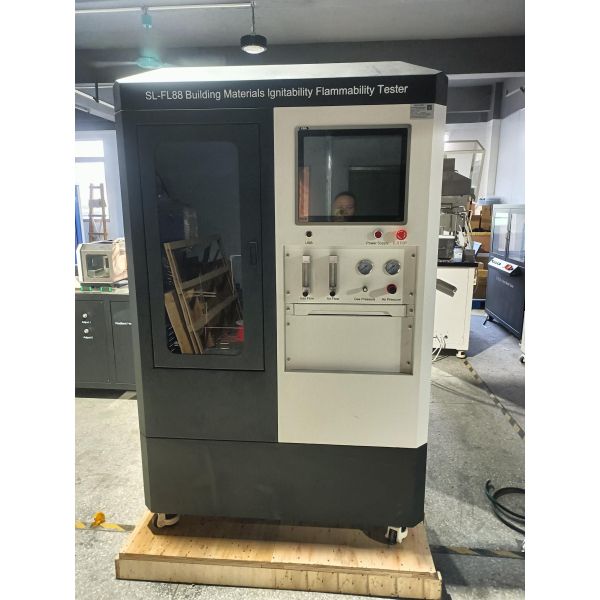

Product Visualization
Building Materials Ignitability Tester GOST 30402 ISO 5657 Flammability Tester with 10Kw/m2 ~ 70kW/m2 Irradiance and 50W Output
