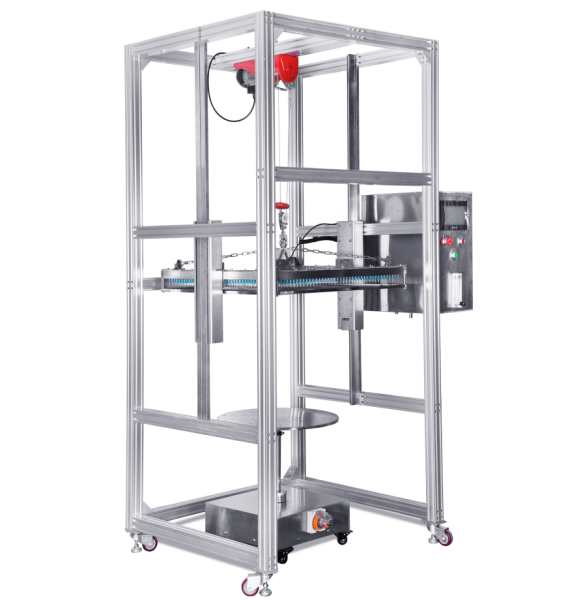

IEC60529:1989 Compliant Drip Tester with 800-1800mm Adjustable Dripping Height and 50KG Turntable Bearing for IPX1 IPX2 Testing
IEC60529:1989 Compliant Drip Tester with 800-1800mm Adjustable Dripping Height and 50KG Turntable Bearing for IPX1 IPX2 Testing
IEC60529:1989 Compliant Drip Tester with 800-1800mm Adjustable Dripping Height and 50KG Turntable Bearing for IPX1 IPX2 Testing
IEC60529:1989 Compliant Drip Tester with 800-1800mm Adjustable Dripping Height and 50KG Turntable Bearing for IPX1 IPX2 Testing
Specifications
Brand Name :
SKYLINE
Model Number :
SL-E131
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
negoitable
Payment Terms :
T/T
Supply Ability :
1 unit/Month
Delivery Time :
25 working days
Packaging Details :
Plywood case
Dripping area :
About 800*800mm
Turntable height :
600mm
Dripping height :
800—1800mm can adjust
Turntable bearing :
50KG
Tilt of turntable :
0° or 15°(Horizontal direction
Description

Product information

The main function of this equipment is to test the physical and other related properties of electronic and electrical products, lamps, electrical cabinets, electrical components, automobiles, motorcycles and their parts under simulated dripping climate conditions. After testing, the performance of the product is determined through verification to see if it meets the requirements, which is convenient for the design, improvement, verification and factory inspection of the product.

Application fields:

Lighting fixtures, household appliances, auto parts and other electronic and electrical products

Test Standard

IEC60529:1989 +A1:1999 +A2:2013

Technical parameters

Raindrop board size L600*W600mm
Inner Dimension L800*D800*H1000mm
External Dimensions L1320*D1020*H2420mm
Drip hole diameter ￠0.4mm
The distance between drip holes 20*20 mm
Turntable diameter ￠600 mm
Rainfall capacity IPX1=1+0.5mm/min
IPX2=3+0.5mm/min
Flow regulation method Manual
Lifting method of drop board 800—1800mm(Adjustable)
Lifting height of turntable Non-lifting (fixed type)
Bearing capacity 50KG
Tilting degree of turntable 0°or15°(Horizontal)
Turntable speed 1 r/min(IPX1) or Settable
Test time 0-999 min
Safety protection device Leakage,water shortage,short-circuit protection
