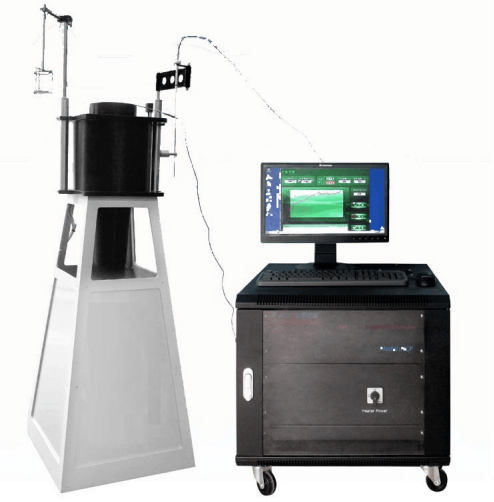

• Measures incombustibility of uniform and non-uniform building materials
• Evaluates rising furnace temperature, mass loss, and specimen ignition
• Single Zone Furnace operates up to 900℃ with Kanthal Ribbon Heater
• Precise 750±5℃ temperature control via PID and Power controller
• Stabilized voltage supply for rapid temperature stabilization
• Three thermocouples monitor furnace, specimen center, and surface temperatures
• 360° rotatable, height-adjustable thermocouple scanning device
• Inner furnace thermocouple for temperature calibration

• Airflow stabilizer: 500mm height truncated cone (75mm top diameter, 10mm bottom opening)
• Specimen holder: φ1.5mm steel wire, 46mm inner diameter, 57mm height

• Oven with fume hood
• Stand and sample insertion device
• Sample holders (2+ for solids, 2+ for bulk materials)
• Temperature control and measuring system
• Data capture and processing software

All components meet LST EN ISO 1182:2020 requirements.

• Electrical: 110V AC 60Hz / 230V AC 50Hz, 10A
• Ambient Temperature: 10°C to 35°C operating range

• Computer system with software
• OMEGA brand thermocouples
• Kanthal brand ribbon heater (Switzerland)
• Electric furnace wire

Applications

- Classification of building products into Euroclass A1 and A2 fire resistance ratings

- Testing uniform and non-uniform building materials for incombustibility

- Quality control for construction material manufacturers

- Regulatory compliance testing for building and construction sectors

- Research and development of new building materials

- Fire safety assessment of flooring materials

Frequently Asked Questions

Q1: What is this equipment used for?

A1: This apparatus determines whether a building material is non-combustible by measuring its reaction when exposed to 750°C in a furnace. Results are used to classify products into Euroclass A1 and A2 fire ratings.

Q2: What standards does it comply with?

A2: It complies with ISO 1182:2020, BS 476-4, EN 13501, and IMO FTPC Part 1. All components meet LST EN ISO 1182:2020 requirements.

Q3: What materials can be tested?

A3: Both uniform and non-uniform building materials, including floorings, can be tested. The apparatus accommodates specimens of Φ45mm × 50±3mm.

Q4: How does the test work?

A4: A prepared specimen is inserted into a furnace stabilized at 750±5°C. The system then monitors furnace temperature rise, mass loss, and ignition over the test duration using three thermocouples.

Q5: What parameters does it measure?

A5: It measures rising furnace temperature, mass loss of the specimen, and whether ignition occurs. The system also tracks specimen center and surface temperatures during testing.

Q6: What industries use this equipment?

B6: Building material manufacturers, construction material testing laboratories, fire safety research institutions, and regulatory compliance agencies use this apparatus for product classification and quality control.
