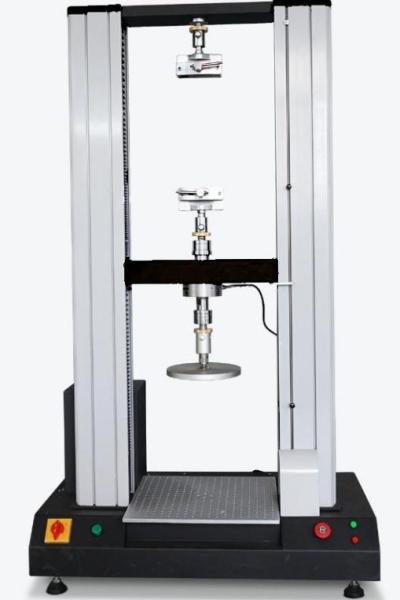

Foam IFD Test Machine with 50HZ Frequency 600x500x800mm Dimension and 70±5 Times/Min Test Speed for Compression Hardness Testing
Foam IFD Test Machine with 50HZ Frequency 600x500x800mm Dimension and 70±5 Times/Min Test Speed for Compression Hardness Testing
Specifications
Brand Name :
SKYLINE
Model Number :
SL-T42
Certification :
CE
Place of Origin :
China
Payment Terms :
T/T
Supply Ability :
1 unit/Month
Delivery Time :
25 working days
Packaging Details :
Plywood case
Capacity :
200KG
Unit Switch :
KG,N,LB
Max.Stroke :
200mm
Counter :
1-999,999 cycyles
Power :
220V,50HZ
Dimension :
600*500*800mm(L*W*H)
Description
Foam IFD Test Machine Compression Hardness Test Machine
Foam/Sponge Tensile Strength Testing Equipment
This precision testing machine is designed for performing reciprocating impact compression fatigue tests on foam polymeric materials. It accurately measures thickness reduction values and hardness reduction values (residual deformation rate) to determine the dynamic fatigue characteristics of materials.
Key Features
  • Determines thickness and hardness reduction values
  • Evaluates dynamic fatigue characteristics of materials
  • LCD touch screen control interface
  • Precision load element for accurate measurements
  • Adjustable test speed of (70 ± 5) times/min
  • Servo motor with precision ball screw transmission
Testing Standards Compliance
Complies with international standards: ISO 3385 and ASTM D3574
Technical Specifications
Parameter Specification
Control mode LCD Touch screen control
Induction mode Precision load element
Capacity 200kg
Unit switch Kg, N, LB
Pressure plate 250 mm± 1 mm diameter with 25 mm± 1 mm radius edge, applies maximum force of 750 N ± 20 N
Lower platform 420×420mm, porosity diameter 6mm, spacing 20mm
Maximum stroke 200mm
Test speed (70 ± 5) times/min (adjustable)
Counter 1-999,999 cycles
Power source Servo motor
Transmission mode Precision ball screw
Power supply Single-phase, 220V, 50Hz/60Hz, 2.5A
Weight 90kg
Dimensions (L×W×H) 600×500×800mm
