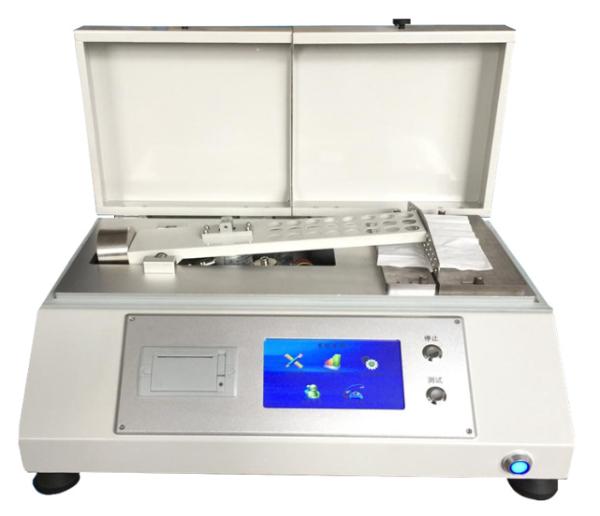

TAPPI T498 Tissue Softness Tester
TAPPI T498 Tissue Softness Tester
TAPPI T498 Tissue Softness Tester
TAPPI T498 Tissue Softness Tester
Specifications
Brand Name :
SKYLIE
Model Number :
SL-P22
Certification :
CE, Calibration Certificate, Rosh, CO...
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C,D/P,D/A,T/T,Western Union,MoneyGram
Supply Ability :
20-30 /month
Delivery Time :
15 Working Days
Packaging Details :
Exported Plywood Package
 Measuring range :
(10 ~ 1000) mN
 Test speed :
1.2mm/s
 Measurement time :
15s
 Resolution :
1mN
 Accuracy :
±1%
 Probe penetration depth :
8 +0.5mm
Sample platform narrow width :
5mm, 6.35mm, 10mm, 20mm
Parallelism error on both sides of the sample table slit :
≤0.05mm
 Power supply :
AC 220V ± 22V, 50Hz
Description
TAPPI T498 Tissue Softness Test Machine
TAPPI T498 Tissue Softness Tester TAPPI T498 Tissue Softness Tester
Product Overview
The Tissue Softness Tester is a precision instrument that simulates hand feel to measure material softness. Designed in compliance with GB8942 national standard for paper softness determination, it's ideal for testing medium and high-grade toilet paper, tobacco sheets, fabrics, and similar sheet materials.
Key Features
  • Microcomputer-controlled digital test system with touch screen interface
  • Bilingual (Chinese/English) operating system with intuitive controls
  • Advanced technology with reliable performance and easy operation
  • Ideal for paper manufacturing, scientific research, and quality inspection
Test Principle
The instrument measures softness by pressing a plate probe into the sample to a depth of approximately 8mm. The softness value (in millinewtons) represents the sum of the sample's maximum anti-bending force vector and the friction between sample and gap. Lower values indicate softer materials.
Compliance Standards
GB/T 8942 QB/T 1060 ASTM D2923 ASTM D6828-02 TAPPI T498 INDA IST 90.3 EDANA WSP 90.3
Technical Specifications
Parameter Specification
Measuring range (10 ~ 1000) mN
Test speed 1.2mm/s
Measurement time 15s
Resolution 1mN
Accuracy ±1%
Probe penetration depth 8 +0.5mm
Sample platform narrow width 5mm, 6.35mm, 10mm, 20mm
Parallelism error on both sides of the sample table slit ≤0.05mm
Display 5-inch touch screen with curve display (50,000 hour lifespan)
Power supply AC 220V ± 22V, 50Hz
Transport packaging Wooden outer box with internal buffer material
