Specifications
Description

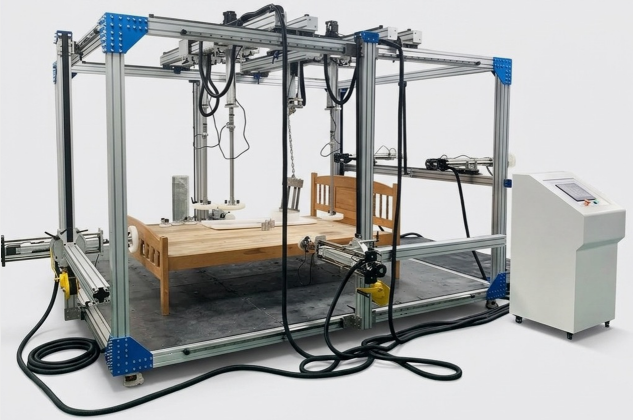

SL-T26B Bed Base Universal Test Machine
This machine is used for static load test and durability test of table, desk and other furniture. Each pneumatic device can work together or independently, and can also be adjusted to meet different test requirements.
SL-T26B Bed Base Universal Test Machine for Static Load and Durability Tests with PLC Control

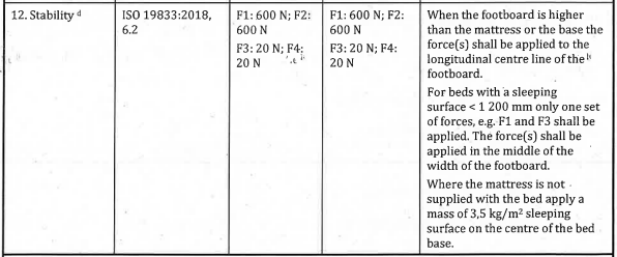

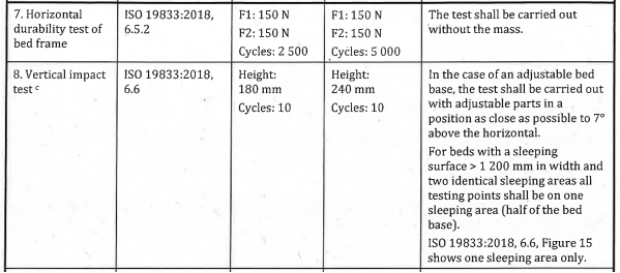

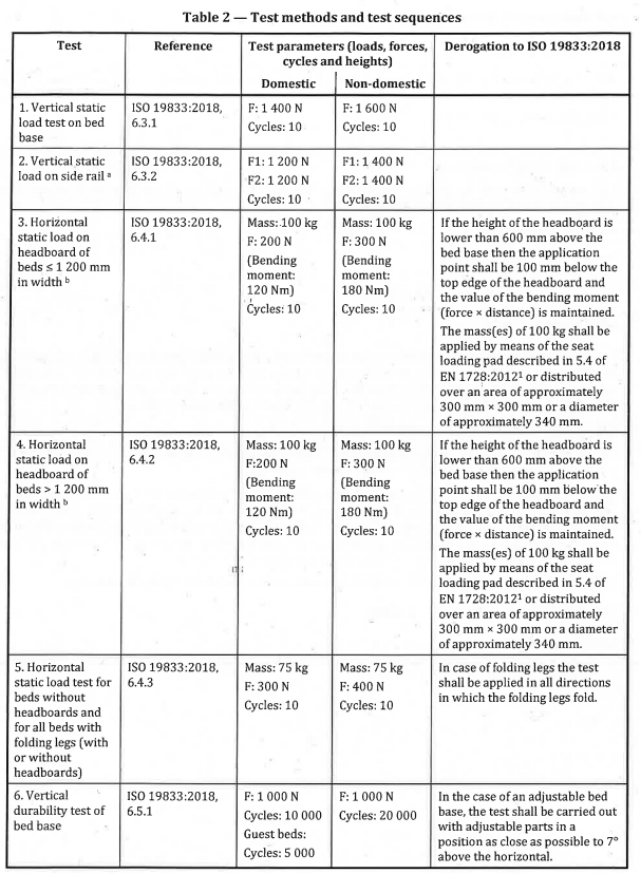

Test Standards
  • EN 12521, BS EN 15372
  • EN 1730
  • EN 581-3, EN 1730, EN 1725
Technical Parameters
Basic Test Frame 3.8x3x2m, made of 80x80mm aluminum material
Load Air Cylinder 8 sets of 450mm stroke electric actuator (including 5 sets of 50mm diameter horizontal cylinders + 2 sets of 63mm diameter vertical cylinder + 1 set vertical impactor)
Force Sensor High precision brand sensors 2KN × 6 sets
Control Method PLC and LCD touch screen
Counter 0~999,999 (adjustable)
Force Adjust Precision pressure valve equipment with sensor to display
Air Supply 7 kgf/cm²
Power Supply 1∮ AC 220V 50Hz 5A
SL-T26B Bed Base Universal Test Machine for Static Load and Durability Tests with PLC Control SL-T26B Bed Base Universal Test Machine for Static Load and Durability Tests with PLC Control SL-T26B Bed Base Universal Test Machine for Static Load and Durability Tests with PLC Control
