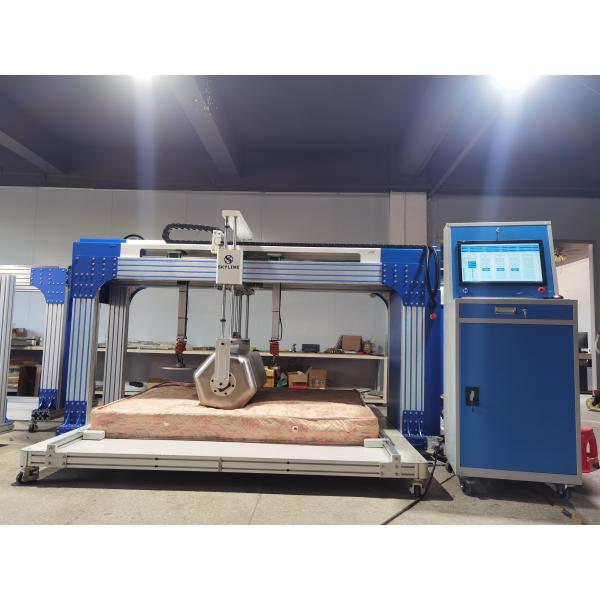

SL-T07I Mattress Rolling Tester Roller Durability Test Machine
SL-T07I Mattress Rolling Tester Roller Durability Test Machine
Specifications
MOQ :
1
Delivery Time :
25 working days
Air Source :
≥6kg/cm²
Test Speed :
10～20 times/min
Packaging Details :
Plywood case
Model Number :
SL-T07I
Payment Terms :
T/T
Servo motor :
0.4kW*1、1.5kW*1
Power Supply :
220V,50HZ
Price :
negoitable
Cylinder stroke :
Stroke 500mm, Max thrust 1.39kN
Supply Ability :
1 unit/Month
Capacity :
2kN Sensor*1
Place of Origin :
China
Certification :
CE
Brand Name :
SKYLINE
Description
SL-T07I Mattress Rolling Tester Roller Durability Test Machine
This advanced testing machine evaluates spring mattress hardness levels and performs comprehensive durability testing for mattress surfaces and rollers. The system analyzes test data before and after evaluations to provide accurate performance assessments.
Primary Testing Capabilities
Records loading process curves and evaluates hardness values according to relevant test data. Meets both ASTM F1566 and EN1957 standards with the following main functions:
  • Rolling Durability Test (ASTM F1566 or EN 1957 test standard optional)
  • Mattress Hardness Test (ASTM F1566 or EN 1957 test standard optional)
  • Height Lost Test (EN 1957 Optional)
  • Mattress Edge Test (EN 1725 Optional)
Technical Specifications
Frame Material High-quality aluminum construction
Control System High precision ARAM controller with Delta PLC and Servo Motors
Motor Configuration Dual Delta servo motors for vertical roller movement and horizontal drum drive
User Interface Large colorful touch panel with clear, easy-to-operate software
Packaging Details
Estimated Packaging Dimension 3000 × 1600 × 2000 mm
Estimated Gross Weight 1300 kg
HS Code 9024800000
Testing Standards Compliance
  • EN 1957 (140kg, EN Round Cylinder: 30000 cycles)
Key Features
  • High-quality aluminum frame with smart, elegant design
  • Delta brand PLC and Servo Motors for precision control
  • Dual motor configuration for vertical and horizontal movement
  • Integrated alarm device for safe operation monitoring
  • Electric roller lifting mechanism for easy operation
  • PLC controller with large colorful touch panel
  • Automatic stop function after preset cycles completion
  • Over moving limit protection system
  • Wooden roller for soft contact with mattress surfaces
