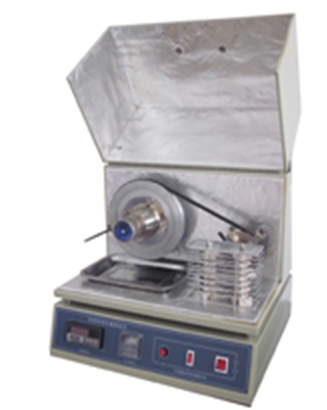

Lubricating Grease Leakage Measurement Machine
Lubricating Grease Leakage Measurement Machine
Specifications
MOQ :
1
Packaging Details :
Poly wooden case
Model Number :
SL-OA26
Supply Ability :
1 Set/Month
Price :
Negociate
Delivery Time :
45 days
Certification :
CE
Brand Name :
SKYLINE
Place of Origin :
China
Description
Lubricating Grease Leakage Measurement Machine
The SL-OA26 Grease Leakage Measurement Machine evaluates grease leakage from automobile wheel bearings in accordance with SH/T 0326 standard, designed to distinguish products with significantly different leakage characteristics.
Machine Introduction
The grease leakage tester is designed and manufactured according to SH/T0326 "Determination of grease leakage of automobile wheel bearing". It is suitable for the determination of grease leakage of automobile wheel bearing and serves as the primary instrument for screening and evaluating grease leakage performance.
Technical Specifications
Parameter Specification
Power Supply AC220V 50Hz
Temperature Control Range Room temperature to 200℃
Temperature Control Points Bath temperature: 113±3℃
Shaft temperature: 104.5±1.5℃
Input Power 2060 W
Heating Power 2000 W
Motor Power 60 W
Shaft Speed 660±30 r/min
Dimensions 500 × 600 × 450 mm
Primary Applications
  • Automobile wheel bearing grease leakage testing - Measuring grease leakage from wheel bearings under specified test conditions
  • Grease retention evaluation - Assessing the ability of grease to stay in place under operating conditions
  • Quality control in grease manufacturing - Verifying leakage specifications of grease products
  • R&D and formulation development - Developing greases with improved retention and reduced leakage
  • Automotive lubricant screening - Screening and evaluating grease leakage performance for automotive applications
Frequently Asked Questions
What is this equipment used for?
This instrument measures grease leakage from automobile wheel bearings. It is the primary instrument for screening and evaluating grease leakage performance and is used to distinguish products with significantly different leakage characteristics.
What standards does it comply with?
The instrument is designed and manufactured according to SH/T 0326 "Determination of Grease Leakage of Automobile Wheel Bearing."
What are the temperature control points?
The bath temperature is controlled at 113±3°C and the shaft temperature at 104.5±1.5°C.
What is the shaft speed?
The shaft operates at 660±30 r/min.
What is the input power?
The total input power is 2060W, comprising 2000W heating power and 60W motor power.
What are the dimensions?
The instrument dimensions are 500×600×450mm.
