(MMT)Moisture Management Testing Machine(Latest model)
(MMT)Moisture Management Testing Machine(Latest model)
Specifications
MOQ :
1
Delivery Time :
25 working days
Packaging Details :
Plywood case
Model Number :
SL-M81A
Payment Terms :
T/T
Price :
negoitable
Supply Ability :
1 unit/Month
Certification :
CE
Brand Name :
SKYLINE
Place of Origin :
China
Description

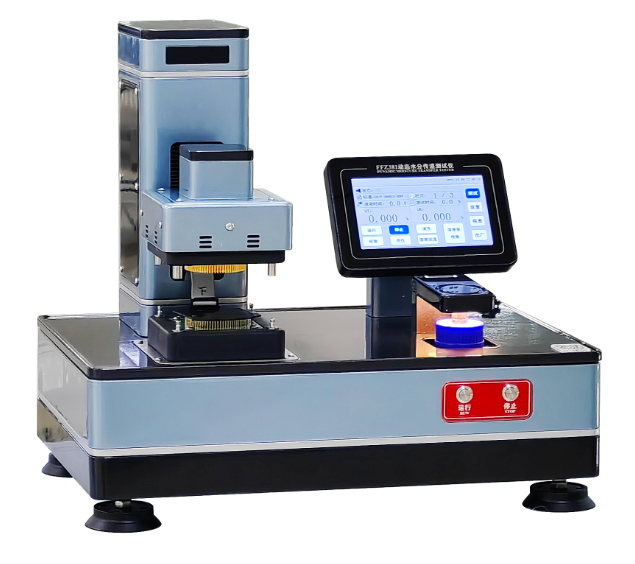

Moisture Management Testing Machine (Latest Model)
This advanced testing machine is designed to evaluate and classify the dynamic transfer of liquid water properties in fabrics. It accurately identifies water resistance, water repellency, and water absorbency based on the fabric's organizational structure, including geometric and internal composition as well as core-absorption characteristics of fibers and yarns.
Compliance Standards
AATCC195-2011
Key Features
  • Dual needle and disk test sensors compatible with both new and old standards
  • Specimen surface crafted from imported special aluminum profile - lightweight, smooth, and rust-proof
  • Precision imported motor control device for stable and accurate operation
  • Advanced droplet injection system with precise, stable droplet delivery and liquid recycling to prevent pipeline crystallization
  • High-quality gold-plated probes offering superior sensitivity, oxidation resistance, and stability
  • Color touch screen display with intuitive menu operation
  • Integrated FY-Meas & Ctrl measurement and control system including V1.0 multi-functional test software and FY-Meas & Ctrl 2.0 multi-functional measurement and control software
  • High-quality electrostatic spraying finish for easy cleaning and maintenance
  • Automatic test result rating system (5-level scale from best to worst performance)
Technical Parameters
Test Data Measurements: Wetting time (immersion/infiltration surfaces), Absorption rate AT/AB, Maximum radius of immersion, Diffusion rate ST/SB, Unidirectional transfer index, Comprehensive performance of dynamic liquid water transfer
Parameter Category Specifications
Test Fluid Delivery System A Conveying time: (20±0.1)s
Liquid amount: (0.220±0.005)g
Outlet: "O" ring on sensor
Specifications: Stainless steel tube inner diameter 0.5mm
Test Fluid Delivery System B Conveying time: 20s
Liquid amount: 0.2g ± 0.01g
Outlet: "O" ring on sensor
Specifications: Stainless steel tube inner diameter 0.5mm
Upper and Lower Sensor A 7 test rings with spacing: 5mm ± 0.05mm (first two rings), 4.5mm ± 0.05mm (others)
Test rings composed of probes: upper diameter 1.54mm ± 0.05mm, lower diameter 1.2mm ± 0.02mm
Probes per ring: 4, 17, 28, 39, 50, 60, 72
Upper sensor mass: 1000g ± 15g
Data acquisition frequency: >10Hz
General Specifications Test time: 120s
Operation: One-key start with automatic motor positioning
Droplet injection: Precise system with reverse pumping to prevent crystallization
Power: AC220V, 50Hz, 300W
Weight: Approximately 40kg
Standard Configuration
  • Host computer - One set
  • Test sensor - One set
  • Liquid dispensing bottle - Two units
  • Test liquid - One bottle
  • Instrument instruction manual
  • Certificate of conformity
Optional Accessories
  • Brand computer
  • Inkjet printer
  • Cleaning device for needle and disk measurement sensor - One set
