SKYLINE SL-T03 Swivel Durability Tester Office Chair Fatigue Test Machine BIFMA X5.1 120000 Cycles 102kg Load
SKYLINE SL-T03 Swivel Durability Tester Office Chair Fatigue Test Machine BIFMA X5.1 120000 Cycles 102kg Load
SKYLINE SL-T03 Swivel Durability Tester Office Chair Fatigue Test Machine BIFMA X5.1 120000 Cycles 102kg Load
SKYLINE SL-T03 Swivel Durability Tester Office Chair Fatigue Test Machine BIFMA X5.1 120000 Cycles 102kg Load
SKYLINE SL-T03 Swivel Durability Tester Office Chair Fatigue Test Machine BIFMA X5.1 120000 Cycles 102kg Load
SKYLINE SL-T03 Swivel Durability Tester Office Chair Fatigue Test Machine BIFMA X5.1 120000 Cycles 102kg Load
SKYLINE SL-T03 Swivel Durability Tester Office Chair Fatigue Test Machine BIFMA X5.1 120000 Cycles 102kg Load
SKYLINE SL-T03 Swivel Durability Tester Office Chair Fatigue Test Machine BIFMA X5.1 120000 Cycles 102kg Load
SKYLINE SL-T03 Swivel Durability Tester Office Chair Fatigue Test Machine BIFMA X5.1 120000 Cycles 102kg Load
SKYLINE SL-T03 Swivel Durability Tester Office Chair Fatigue Test Machine BIFMA X5.1 120000 Cycles 102kg Load
Specifications
Price :
USD 3500-6500 / Set
Cycle Rate :
5-15 rotations per minute
Supply Ability :
10 Sets per Month
Model :
SL-T03
Brand Name :
SKYLINE
Delivery Time :
35 working days
Test Standards :
DIN 4551, EN 1335, NEN 1812, BIFMA X5.1, BIFMA X5.4, BSI/BS 5459, EN 581-2
Actuator :
Piston diameter 80mm, stroke 500mm, 2500N
Packaging Details :
Export-grade plywood case with foam protection and operation manual
Loading Weight :
102 kg (225 lb)
Test Cycles :
120,000 times
Load Pad :
Diameter 200mm, DIN EN 1335
MOQ :
1 Set
Certification :
Calibration certificate
Counter :
999,999
Warranty :
18 months
Model Number :
SL-T03
Payment Terms :
T/T, Western Union, MoneyGram
Load Cell :
5 kN
Place of Origin :
China
Description

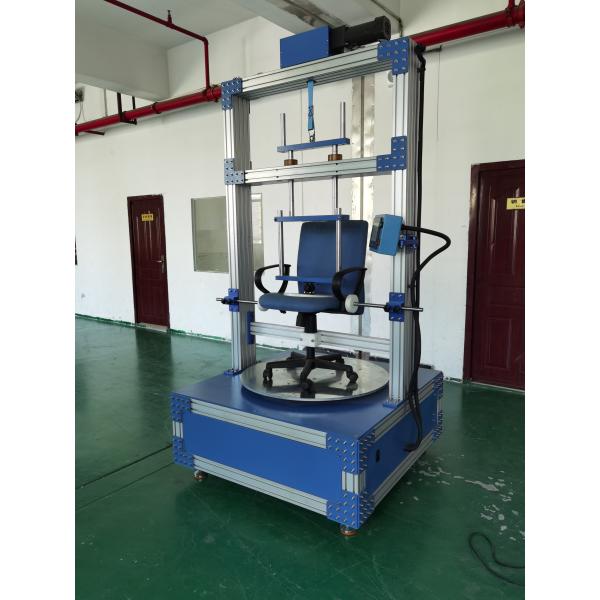

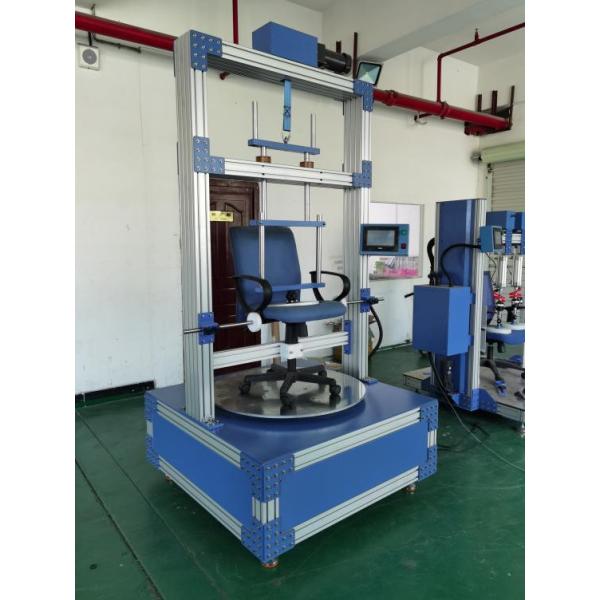

SKYLINE SL-T03 Swivel Durability Tester Office Chair Fatigue Test Machine
The SKYLINE SL-T03 Swivel Durability Tester is a professional furniture testing instrument designed to evaluate the ability of swivel chairs to withstand stresses and wear caused by repeated swiveling. Built with high quality materials and precision components, it delivers reliable, repeatable test results at a cost-effective price.
Key Features & Benefits
  • High Precision: Equipped with a 5 kN load cell and load-controlled actuator (piston diameter 80mm, stroke 500mm, 2500N) for accurate force application and measurement
  • High Durability: Rated for 120,000 test cycles with a 999,999 counter, backed by an 18-month warranty for long-term laboratory service
  • Cost-Effective Solution: Complete package including test frame, electrically driven swivel test rig, load pad and fixing elements at factory direct pricing
  • Robust Construction: Heavy-duty steel frame with durable surface treatment, designed for 24/7 continuous operation
Applications
  • Office chairs with swivel seats
  • Stools and bar chairs
  • Gas spring chairs
  • Complete test procedures or selected individual tests per standards requirements
Technical Specifications
Loading Weight 102 kg (225 lb), adjustable
Cycle Rate 5-15 rotations per minute
Test Cycles 120,000 times
Counter 999,999
Actuator Piston diameter 80mm, stroke 500mm, 2500N
Load Pad Diameter 200mm, DIN EN 1335, cardanic clamping connection
Load Cell 5 kN
Control System PLC + touch panel, each test axis with own controller
Compliant Test Standards
  • DIN 4551
  • EN 1335
  • NEN 1812
  • BIFMA X5.1
  • BIFMA X5.4
  • BSI/BS 5459
  • EN 581-2
Contact us today for the best factory price and professional technical support.
