ISO9772 Lab Testing Equipment Horizontal And Vertical Flammability Tester With MCU Control
ISO9772 Lab Testing Equipment Horizontal And Vertical Flammability Tester With MCU Control
ISO9772 Lab Testing Equipment Horizontal And Vertical Flammability Tester With MCU Control
ISO9772 Lab Testing Equipment Horizontal And Vertical Flammability Tester With MCU Control
ISO9772 Lab Testing Equipment Horizontal And Vertical Flammability Tester With MCU Control
ISO9772 Lab Testing Equipment Horizontal And Vertical Flammability Tester With MCU Control
Specifications
Brand Name :
SKYLINE
Model Number :
SL-FL082
Certification :
CE
Place of Origin :
China
MOQ :
1 unit
Price :
negotiated
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
1 unit/ month
Delivery Time :
15 working days
Packaging Details :
Plywood case
SKYLINE :
Foam Plastics Horizontal and Vertical Flammability Chamber
Standards :
ISO 845：1985
Application :
Foam Plastics
Burner Angel :
0-45 degree
Flame Height :
15mm-100mm
Bensun diameter :
9.5mm±0.3mm
Chamber Volume :
0.5m3
Power supply :
220V±10％ 50HZ
Description

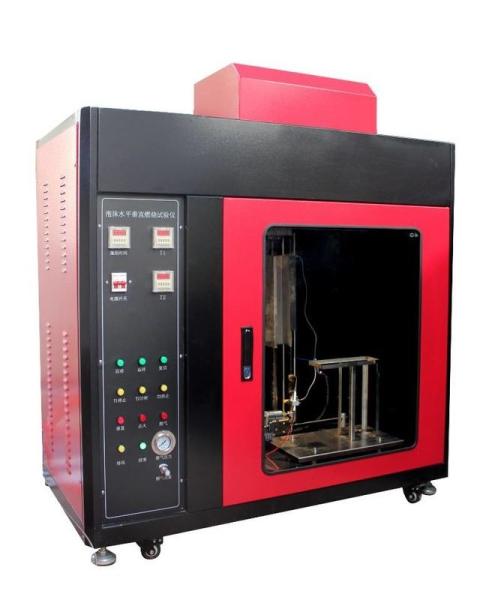

Foam Plastics Horizontal and Vertical Flammability Tester with MCU Control

Application

Suitable for laboratory conditions under the ISO 845: 1985 measured by the density of less than 250kg / m3 of small plastic samples under small flames in the horizontal combustion performance.

Standards

ISO9772,ISO 97738

Specifications

Ambient temperature -10 ℃ ~ 30 ℃
Relative humidity ≤85%
Power supply voltage and power 220V ± 10% 50HZ power less than 100W
MCU control read the automatic timing
Bunsen burner diameter 9.5mm ± 0.3mm Bunsen burner can be tilted in the range of 0-45 °
Bunsen light blue flame height 15mm-100mm can be adjusted, with a flame height scale
Sample folder vertical adjustment distance ≤ 100mm sample holder horizontal direction adjustment distance: ≤ 70mm
Horizontal sample holder can be placed 90 ° textile samples folder (optional)
Bunsen burner automatic ignition time any set
Gas source industrial methane gas, the concentration of not less than 98%, calorific value (37 +1) MJ / m³, need to bring the regulator and pressure gauge to ensure uniform airflow. Other sources of heat (37 + 1) MJ / m³ mixed gas source or calorific value of (94 +2) MJ / m³ of propane gas can also get similar results. In the event of controversy, industrial grade methane gas should be selected
Overall dimensions width 1160mm × depth 600mm × height 1310 (including feet) mm
Combustion test area volume > 0.5 cubic, long * wide * high about 900mm × 590mm × 1050mm, background black, background illumination ≤ 20Lux

Accessories

1. Power cord 1

2. Igniter only 1
3. Horizontal pattern rack 1
4. Vertical sample rack 1
5. Air supply pipe 1.5
6. Spare scale only 1

ISO9772 Lab Testing Equipment Horizontal And Vertical Flammability Tester With MCU Control
Foam Plastics Horizontal and Vertical Flammability Tester
