QB/T2922-2007 50LB Load 0~6 inches Impact Height Luggage Handle Jerking Tester
QB/T2922-2007 50LB Load 0~6 inches Impact Height Luggage Handle Jerking Tester
QB/T2922-2007 50LB Load 0~6 inches Impact Height Luggage Handle Jerking Tester
QB/T2922-2007 50LB Load 0~6 inches Impact Height Luggage Handle Jerking Tester
QB/T2922-2007 50LB Load 0~6 inches Impact Height Luggage Handle Jerking Tester
QB/T2922-2007 50LB Load 0~6 inches Impact Height Luggage Handle Jerking Tester
QB/T2922-2007 50LB Load 0~6 inches Impact Height Luggage Handle Jerking Tester
QB/T2922-2007 50LB Load 0~6 inches Impact Height Luggage Handle Jerking Tester
Specifications
Brand Name :
SKYLINE
Model Number :
SL-TL03
Certification :
calibration certificate
Place of Origin :
China
MOQ :
1 unit
Price :
Negoitable
Payment Terms :
Western Union, T/T, MoneyGram
Supply Ability :
2 pcs/ month
Delivery Time :
35 working days
Packaging Details :
Plywood case
SKYLINE :
Handle Jerking Tester
Test speed :
adjustable 5-30 C.P.M
Load :
max 50 lb
Up and down :
MAX: 300 mm
Dimension :
1400x1200x2500mm LxWxH
Weight :
390kg
Description

QB/T2922-2007 50LB Load Luggage Handle Jerking Tester

Application

Luggage Handle Jerk Tester is applicable to testing the resistance of oscillating impact of the handle, sew stitch lines and the whole structure of luggages. The testing methods are as follows: First, Load the object with stated load weight. And then do the test to the specimen with the speed of 30 times per minute and the impact height of 4 inches for 2500 times. The tset result can be taken into consideration of quality improvement.

This product is used for comprehensive testing of bags as the basis for quality improvement.

Principle

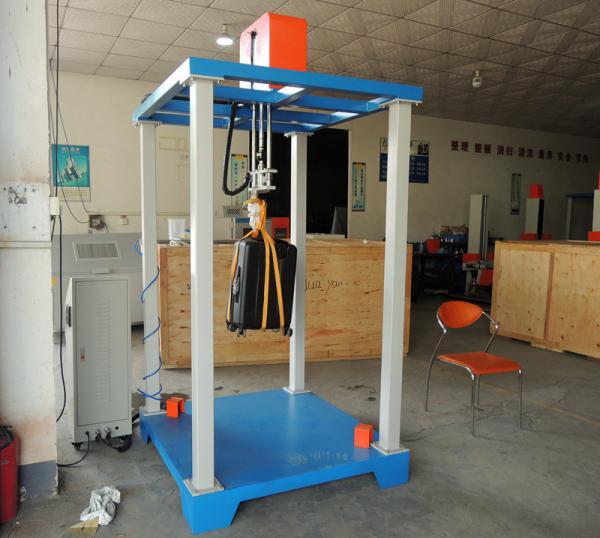

This machine according to the Test specification production: Test method is, the luggage handle hook on the oscillator hook, with rope fastened, then put a certain weight in the package load, set the control times and speed, and start testing to understand its structural performance.

Technical parameters

Mode SL-TL03
Impact Height 4 inch (0~6 inches) adjustable
Oscillation Mode Spring type: 1.79Kg/mm
Testing Speed 5~30 C.P.M. adjustable
Times Setting 1~999999 Automatic shutdown
Additional Fucnction It would stop automatically if something goes wrong.
Dimension 1400×1200×2500 mm
Weight 390 Kg
Power 1, 220V/50Hz
Design criteria QB/T2922-2007

Luggage Handle Jerking Tester.pdf
