Fully Automated Grain Fatty Acid Ester Analyzer Noise Level ≤ 60dB Single Sample Detection Duration < 10 Minutes
Fully Automated Grain Fatty Acid Ester Analyzer Noise Level ≤ 60dB Single Sample Detection Duration < 10 Minutes
Fully Automated Grain Fatty Acid Ester Analyzer Noise Level ≤ 60dB Single Sample Detection Duration < 10 Minutes
Fully Automated Grain Fatty Acid Ester Analyzer Noise Level ≤ 60dB Single Sample Detection Duration < 10 Minutes
Specifications
Brand Name :
Shengtai Instrument
Model Number :
ST-59
Certification :
GB/T20569、GB/T20570
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
10000 sets/year
Delivery Time :
7-15 work days
Pump Flow Accuracy :
RSD ≤ 1%
Resolution :
0.01 Mg KOH/100g Dry Matter
Noise :
Less Than 60dB
Measurement Range :
0-300mg KOH/100g Dry Matter
Suction Pump Specification :
10ml
Titration Speed Of The Suction Pump :
0.5ml/min-10ml/min (adjustable)
Mixing Speed :
10-250r/min (adjustable)
Sample Detection Time :
≤ 10min/sample
Repeatability :
≤ 2 Mg/100g
Description

Fully Automated Grain Fatty Acid Ester Analyzer Noise Level ≤ 60dB Single Sample Detection Duration < 10 Minutes

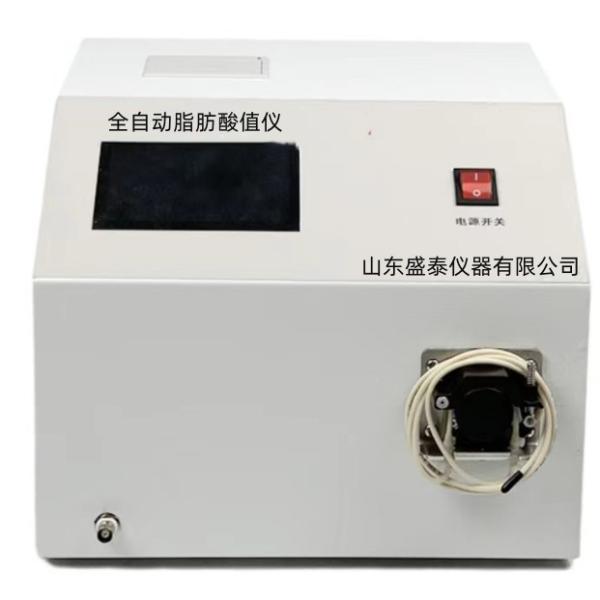

The ST-59 Corn & Cereal Fatty Acid Value Titrator is a fully automated instrument designed for determining fatty acid values in grains. Operating on the principle of colorimetric endpoint detection, this automatic titration system is primarily engineered to test fatty acid levels in rice, brown rice, corn, and other cereal products.
The device automates the entire workflow, including titration endpoint identification, measurement execution, data processing, result visualization, and report printing. This full automation eliminates human-induced variability, significantly enhancing the objectivity and precision of test outcomes.

Key Features

⦿ 5-inch capacitive touchscreen for intuitive operation
⦿ High-capacity data storage supporting up to 10,000 test records
⦿ Single-channel testing configuration for targeted sample analysis
⦿ Automated titration mechanism minimizes manual operational errors
⦿ Fully autonomous result generation and printing with zero manual intervention
⦿ Large-format display for clear, effortless result viewing
⦿ Integrated calibration function ensures long-term measurement accuracy

⦿ Dual operation modes available: direct touchscreen control or PC software operation via Windows system

Specification

Pump flow accuracy RSD ≤ 1%
Resolution 0.01 mg KOH/100g dry matter
Noise less than 60dB
CV When the fatty acid value is greater than 12mg/100g, the CV is not greater than 4%
Measurement range 0-300mg KOH/100g dry matter
Suction pump specification 10ml
Titration speed of the suction pump 0.5ml/min-10ml/min (adjustable)
Mixing speed 10-250r/min (adjustable)
Sample detection time ≤ 10min/sample
Repeatability ≤ 2 mg/100g
The fatty acid value of rice double experiment difference ≤ 2mg/100g (meeting GB/T20569 national standard)
The fatty acid value of corn double experiment difference ≤ 2mg/100g (meeting GB/T20570 national standard)
Wheat flour meet the requirements of GB/T 5510 national standard
Ambient temperature 15 ºC - 40 ºC
AC 110V-240V

Packing list

S/N Name Quantity Unit Remarks
1 Host 1 set
2 PH electrode 1 piece
3 Magnetic stirrer In host
4 O-shaped sealing ring 1 piece
5 Rubber tube
6 Alkali bottle
7 Titration cup (with Teflon cap)
8 Power cord 1 piece
9 Fuse tube 1 piece 10A in the safety seat
10 Instructions 1 copy
11 Certificate warranty card 1 copy

Fully Automated Grain Fatty Acid Ester Analyzer Noise Level ≤ 60dB Single Sample Detection Duration < 10 Minutes

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, comply with national quality standards, and have the manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The warranty period for the entire equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to the user's responsibility for causing equipment malfunction, we are responsible for maintenance and reasonable charges.

----Lifetime discounted supply of components for equipment, and lifelong maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
