Specifications
Brand Name :
Shengtai Instrument
Model Number :
SH33400
Certification :
ASTM D473
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
100000sets/year
Delivery Time :
7-15work-days
Packaging Details :
wooden case
working power supply :
AC220V±10%, 50Hz
filter volume :
500ml
Aperture :
0.7 microns
filter membrane diameter :
47mm
Instrument size :
350*280*420mm
Weight :
12kg
Description

Large Capacity Filter Lab Test Instruments SH33400 Diesel Oil Total Pollutant Meter

Large Capacity Filter Lab Test Instruments SH33400 Diesel Oil Total Pollutant Meter

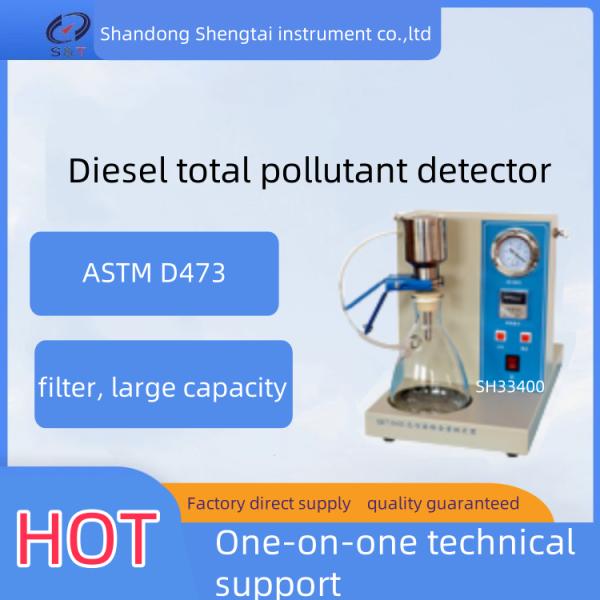

SH33400 Diesel total pollutant detector is our company in accordance with the standard GB/T 33400-2016 "intermediate distillate oil, diesel oil and fatty acid methyl ester total pollutant content determination method" standard.

Used for the determination of total pollutant content in intermediate distillate oil, diesels and pure fatty acid methyl ester (BD100) whose volume fraction of fatty acid methyl ester is not more than 30% according to standard.

It is also used for the moving viscosity of not more than 8 mm2/s at 20℃, or the moving viscosity of not more than 5 mm2/s at 40℃, and the total pollutant content of 12 mg/kg ~ 30 mg/kg of the sample, and the precision is specified;

It is also applicable to samples with total contaminant content in this range, whose precision is not specified.

ASTM D473 Extraction Method Crude Oil Total Sediment Test Apparatus

petroleum sediment tester

Crude Oil Sediment Extraction Apparatus

Performance characteristics

1, filter, large capacity

2, filter membrane pad aperture is uniform, protect the filter membrane from damage

3. Equipped with vacuum pump, the vacuum pumping pressure system is balanced and stable

4, Precise pressure device, reliable control, convenient adjustment

Main technical specifications and parameters

1, working power supply: AC220V±10%, 50Hz

2, vacuum degree: pressure 2KPa ~ 5KPa (pressure gauge corresponding pressure is -0.099Mpa ~ -0.096Mpa)

3, filter volume: 500ml

4, filter membrane diameter: 47mm;

Aperture 0.7 microns

5. Instrument size: 350*280*420mm Weight: 12kg

working power supply AC220V±10%, 50Hz
vacuum degree pressure 2KPa ~ 5KPa (pressure gauge corresponding pressure is -0.099Mpa ~ -0.096Mpa)
filter volume 500ml
Aperture 0.7 microns
filter membrane diameter 47mm
Instrument size 350*280*420mm
Weight 12kg

Packing list

S/N Name Unit Quantity remarks
1 Host set 1
2 Filter device set 1
3 Filtering flask piece 1
4 Vacuum pump set 1
5 Instruction copy 1
6 Pack list copy 1
7 Certificate warranty card copy 1
