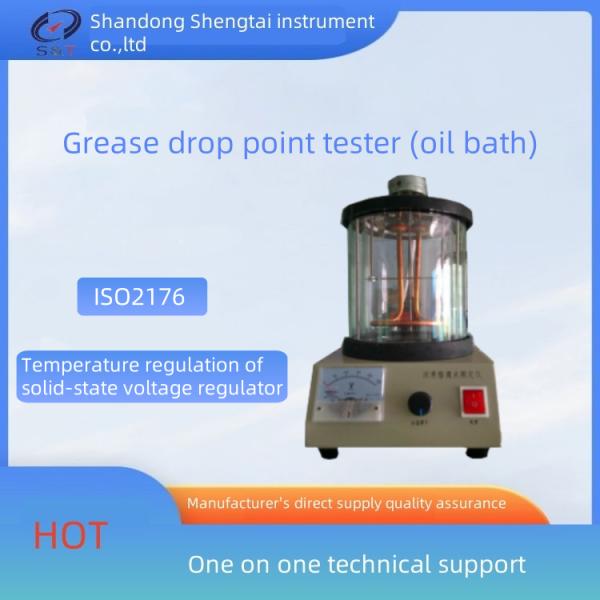

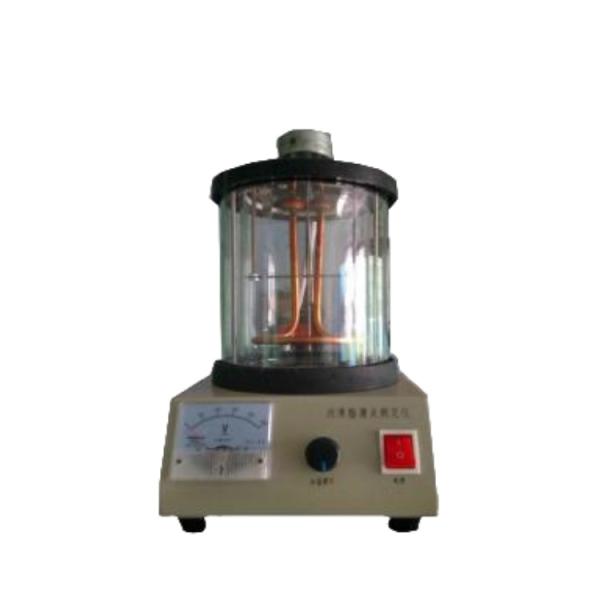

ASTMD566 Grease Drop Point Tester Double Hole Oil Bath SD4929A
ASTMD566 Grease Drop Point Tester Double Hole Oil Bath SD4929A
ASTMD566 Grease Drop Point Tester Double Hole Oil Bath SD4929A
ASTMD566 Grease Drop Point Tester Double Hole Oil Bath SD4929A
Specifications
Brand Name :
Shengtai Instrument
Model Number :
SD-4929A
Certification :
ISO2176
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
100000sets/year
Delivery Time :
7-15work-days
Packaging Details :
wooden case
Power supply :
AC 220 V±10%, 50 Hz
Grease cup :
Made of chrome plated brass. Its inner diameter is about 9.92 mm and the diameter of orifice for dropping oil is 2.8 mm. The height of the cup is about 12 mm
Test tube :
A tube made of heat-resistant glass with rim. Its inner diameter is 11.1 mm to 12.7 mm. There are three indentations at about 19 mm from the bottom, equally spaced on the circumstance. These indentations are used for supporting the grease cup
Thermometer :
room temperature ~300 ºC, scale value is 1 ºC. The measuring range of the instrument is to 270 ℃
Cylinder :
beaker with volume of 600ml
Stirring motor :
Rotating speed 60 RPM
Metal bath heating power :
800W
Relative humidity :
≤85%
Mixing motor :
speed 120r/min
Temperature regulation mode :
temperature regulation by stepless solid state voltage regulator
Dimension :
300mm×3600mm×500mm
Provided by the customer :
heating medium (silicone oil)
Description

ASTMD566 grease drop point tester Double hole oil bath SD4929A

ASTMD566 Grease Drop Point Tester Double Hole Oil Bath SD4929A

SD4929A grease drop point tester is designed and manufactured according to the requirements of the People's Republic of China standard GB/T4929 "Grease drop point determination method". It is suitable for testing the drop point of grease according to the GB/T4929 standard.

Purpose: This instrument is suitable for measuring the drop point of grease according to GB/T4929, ISO2176, ASTMD566, TP31, "Grease drop point determination method".

Portable Lubricating Grease Oil Bath Dropping Point Tester ASTM D566

Certified Laboratory ASTM D566 Lubricating Grease Dropping Point Apparatus

Technical performance:

1. Power supply: AC 220 V±10%, 50 Hz;
Grease cup: Made of chrome plated brass. Its inner diameter is about 9.92 mm and the diameter of orifice for dropping oil is 2.8 mm. The height of the cup is about 12 mm.
Test tube: A tube made of heat-resistant glass with rim. Its inner diameter is 11.1 mm to 12.7 mm. There are three indentations at about 19 mm from the bottom, equally spaced on the circumstance. These indentations are used for supporting the grease cup.
Thermometer: room temperature ~300 ºC, scale value is 1 ºC. The measuring range of the instrument is to 270 ℃
Cylinder: beaker with volume of 600ml
Stirring motor: Rotating speed 60 RPM
Metal bath heating power 800W
Relative humidity: ≤85%
Mixing motor: speed 120r/min
Temperature regulation mode: temperature regulation by stepless solid state voltage regulator
Dimension: 300mm×3600mm×500mm weight: 10kg

Provided by the customer: heating medium (silicone oil)

Packing List

No Name Quantity
1 Lubricating grease drop point tester 1
2 Grease cup 2
3 vitro 2
4 Rubber plug 2
5 Guide ring 2
6 Thermometer (-5 to 300 ° C, index value 1 ° C,) 2
7 Metal bar 1
8 instructions 1
9 Certificate of conformity warranty card 1
