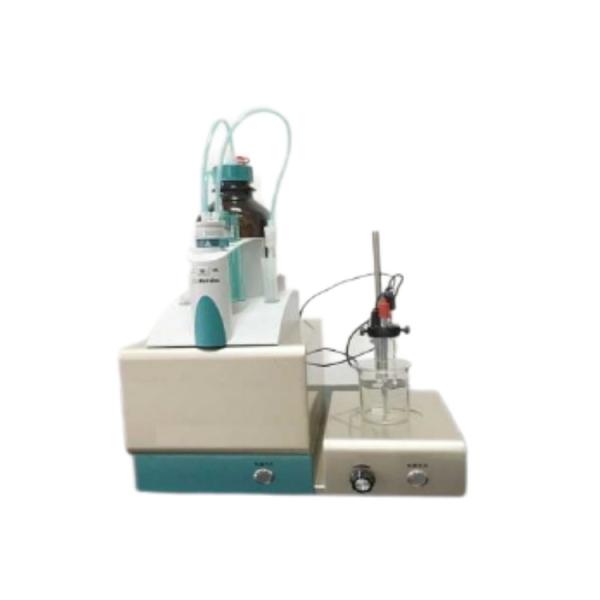

Determination of peroxide value in food - ST-13A automatic potential drop point instrument

The ST-13A automatic potentiometric titrator is designed in accordance with standards such as the determination of acid value in foods (GB5009.229-2016), the cold solvent automatic potentiometric titration method (the second method), and the determination of peroxide value in foods (GB5009.229-2019).

The instrument uses potentiometric titration to automatically identify the titration end point and automatically calculate the results. This instrument is suitable for the determination of acid value in various samples such as food acid value, which is one of the important indicators for determining the quality of edible oil. The titration system uses imported components, which are processed from corrosion resistant materials, with accurate measurement results and long service life.

Main technical parameters and features:

◆ Universal microcomputer and operating system, Windows 10 operating system, man-machine dialogue mode for operation, clear steps, simple and easy to operate; Special software with Chinese window interface, mouse and keyboard operation, human-computer dialogue easy to understand.

◆ Real-time display of potential curve (E-V), first derivative curve (dE/dV), electrode potential (E), titration volume (V), and titration result

◆ Full process titration data browsing and powerful data processing functions facilitate the re processing of results; Mass storage of titration results, data, and curves. The titration process data can be saved as an Excel file for future query

◆ Automatically print curves, results, and titration data

◆ Dynamic equivalent point titration (DET), equivalent equivalent point titration (MET), and preset end point potentiometric titration (SET)

◆ Fully automatic "end point" discrimination, effectively filtering out false "end points"

◆ Automatic cleaning, automatic liquid replenishment, automatic constant value liquid addition

◆ Measurement range: ≥ 0.001 mgKOH/g

◆ Potential measurement range: - 2000.0~+2000.0 mV

Basic error of electronic unit: 0.1% F • S ± 0.1 mV

Input impedance: ≥ 1 × 1012 Ω

◆ Burette volume: 10mL

◆ Minimum titration volume: 0.001 mL

◆ Burette accuracy: ± 0.2% F • S

◆ Precision: meeting or superior to relevant standards

◆ Size: 350 * 280 * 380mm

◆ Weight: 18kg

Packaging and Delivery

Goods packaging: standard wooden or cardboard boxes.

Internal packaging: Elastic pearl cotton packaging products, hard wood+strong bandage fixed corners.
