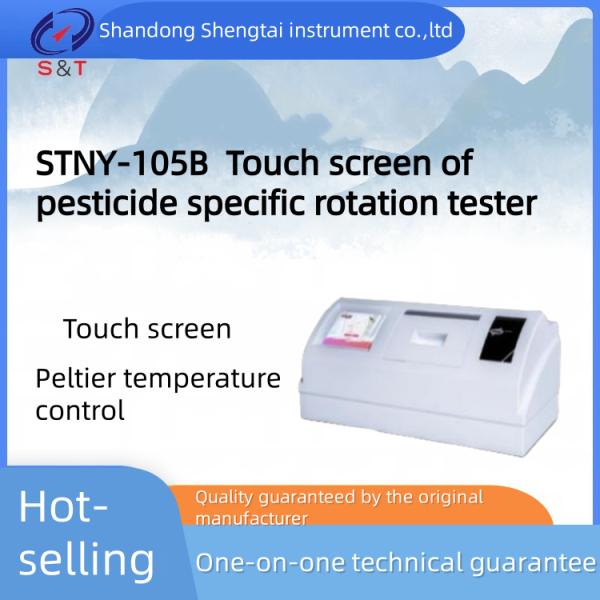

STNY-105B Pharmaceutical Testing Instruments State-of-the-Art Instrument for Measuring Specific Rotation
STNY-105B Pharmaceutical Testing Instruments State-of-the-Art Instrument for Measuring Specific Rotation
STNY-105B Pharmaceutical Testing Instruments State-of-the-Art Instrument for Measuring Specific Rotation
STNY-105B Pharmaceutical Testing Instruments State-of-the-Art Instrument for Measuring Specific Rotation
STNY-105B Pharmaceutical Testing Instruments State-of-the-Art Instrument for Measuring Specific Rotation
STNY-105B Pharmaceutical Testing Instruments State-of-the-Art Instrument for Measuring Specific Rotation
STNY-105B Pharmaceutical Testing Instruments State-of-the-Art Instrument for Measuring Specific Rotation
STNY-105B Pharmaceutical Testing Instruments State-of-the-Art Instrument for Measuring Specific Rotation
Specifications
Brand Name :
Shengtai Instrument
Model Number :
STNY-105B
Place of Origin :
China
MOQ :
1 carton
Payment Terms :
T/T
Supply Ability :
20 cartons per week
Delivery Time :
7-15 working days
Power supply :
220V±22V，50Hz±1Hz，250W
Display method :
7-inch TFT true color touch screen
Measuring range :
Optical rotation±89.99°
Measurement accuracy :
±0.01°（﹣45°≤Optical rotation≤+45°）
Temperature range :
15℃-35℃(peltier)
Description

STNY-105B Pharmaceutical Testing Instruments State-of-the-Art Instrument for Measuring Specific Rotation

STNY-105B Pharmaceutical Testing Instruments State-of-the-Art Instrument for Measuring Specific Rotation

The STNY-105B pesticide specific rotation meter is designed and manufactured in accordance with the NYT 1860.18-2010 Guidelines for Testing the Physical and Chemical Properties of Pesticides Part 18: Specific Rotation Method. It is a specialized instrument for measuring the specific rotation of pesticides. Using touch screen display and LED or other cold light sources, it has a long service life and can detect optical rotation, specific rotation, concentration, etc

Specific optical rotation

At a certain temperature T, the specific rotation of polarized light at a specific wavelength passing through a 1dm light tube and a 1g/L liquid of light substance is called the specific rotation at that wavelength and temperature.

Performance characteristics

  • Built in Peltier temperature control to improve accuracy and stability.
  • LED light sources with a lifespan exceeding 100000 hours make up for the shortcomings of short lifespan and easy damage;
  • To ensure the measurement accuracy of the results, the temperature control technology of the instrument adopts a built-in Parcel patch, replacing the traditional flow cell;
  • The measurement range has been upgraded to ± 89 ° (optical rotation), improving the limitations of the measurement sample and enhancing its selectivity;
  • The control adopts systematization, high integration, full automation, and is convenient and easy to operate;
  • Upgradeable multi-level synchronous retrieval function, which can retrieve historical data based on test date, sample number, etc.

Main technical parameters

Power supply 220V±22V,50Hz±1Hz,250W
Display method 7-inch TFT true color touch screen
Light source LED Cold light source+high-precision interference filter
Measurement mode Optical rotation, specific rotation, concentration,
Measuring range Optical rotation±89.99°
Measurement accuracy ±0.01°(﹣45°≤Optical rotation≤+45°)
Temperature control method Built in Parcel Patch
Temperature range 15℃-35℃(peltier)
Temperature control accuracy ±0.2℃
Minimum reading 0.001° (Optical rotation)
Repeatability (standard deviation s)0.002°(Optical rotation)
Minimum transmittance of measurable samples 1%
Working wavelength 589.3nm
Thermostatic rotation detection tube 100mm
Output method USB,RS232
Net weight of instrument 24kg
data storage 1000

Packing list

S/N Name Quantity Unit Remarks
1 Main engine 1 set
2 Sodium lamp 1 piece spare
3 Thermostatic rotary tube 100mm 1 piece
4 Test tube protective film 8 piece spare
5 Test tube rubber gasket 8 piece spare
6 Power cord, RS232 interface cable 1 each piece
7 Fuses(1.5A,3A) 8 piece 4 each , spare
8 Screwdriver 1 piece
9 User manual 1 copy
10 Product Qualification Certificate 1 copy
