Specifications
Model Number :
SD7305
The input power :
1.5KW
Payment Terms :
T/T
The structure of the form :
2 hole
Temperature control heating power :
1000W
Delivery Time :
7-15work-days
Temperature control range :
room temperature ~ 99.9℃
Time control range :
1 seconds to 9 minutes and 59 seconds
Brand Name :
Shengtai Instrument
Temperature accuracy :
±0.1℃
Relative humidity :
≤ 85%
MOQ :
1
Sample stirring motor :
1500 ± 15rpm
Supply Ability :
100000sets/year
Working power supply :
AC 220V±10%, 50Hz
Instrument size: :
320 * 380 * 680mm
Packaging Details :
wooden case
Power consumption of the whole machine :
no more than 1200W
Ambient temperature :
room temperature ~ 35℃
Place of Origin :
China
Bath stirring motor :
15W
Description

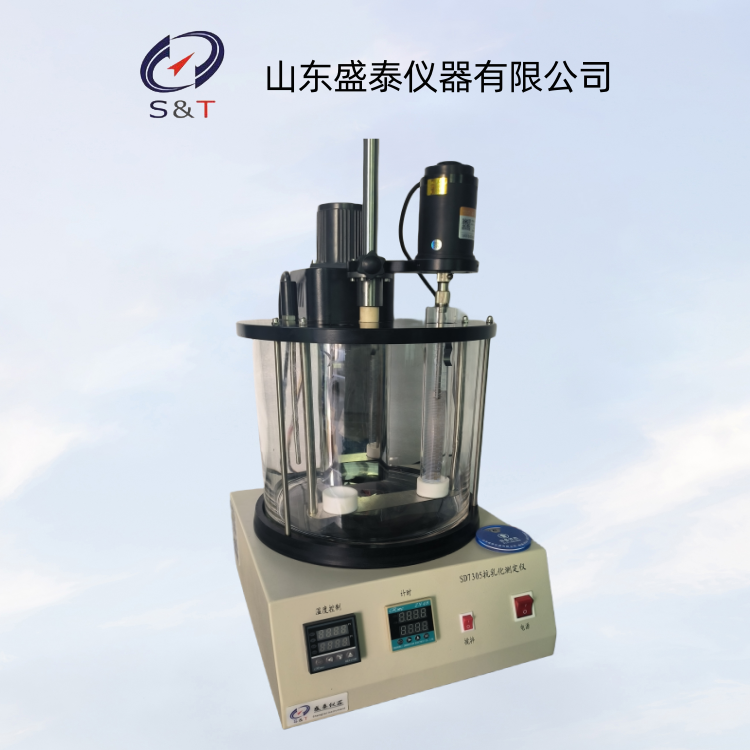

SD7305 Manual Petroleum Demulsification Tester

The SD7305 manual oil demulsibility tester is manufactured in accordance with China national standard GB/T7305 Determination of demulsification performance of petroleum and synthetic liquids, as well as ASTM D1401.

This instrument is applicable to testing oil samples with a kinematic viscosity of 28.8~90 mm²/s at 40°C, under a test temperature of 54±1°C. It can also test oils whose kinematic viscosity exceeds 90 mm²/s at 40°C, with the test temperature set to 82±1°C. It is widely adopted in petroleum, power, chemical industries, universities and research institutes.

Also known as: Lubricating Oil Water Separability Tester
ASTM D1401 – Standard Test Method for Water Separability of Petroleum Oils and Synthetic Fluids
Portable Laboratory Oil-Water Demulsibility Analysis Equipment / Anti-emulsification Test Apparatus for Petroleum Oils and Synthetic Fluids

I. Main technical parameters and indicators

Temperature accuracy ±0.1℃
The input power 1.5KW
Bath stirring motor 15W
Sample stirring motor 1500 ± 15rpm
The structure of the form 2 hole
Working power supply AC 220V±10%, 50Hz
Temperature control range room temperature ~ 99.9℃
Power consumption of the whole machine no more than 1200W
Temperature control heating power 1000W
Relative humidity ≤ 85%
Ambient temperature room temperature ~ 35℃
Time control range 1 seconds to 9 minutes and 59 seconds
Instrument size: 320 * 380 * 680mm weight:15kg

II. Main technical features

  • the use of small cylinder table structure, with small volume, easy to operate, beautiful appearance and other advantages.
  • the bath adopts the motor automatic mixing, the temperature is uniform, the bathtub cover has two sample holes, can be placed at the same time two samples according to this test.
  • the sample stirring device is convenient to lift, stirring shaft in the test tube stirring concentricity is good, no shaking or touching the test tube wall.

Packing List

S/N Name Quantity Unit Note
1 host 1 set
2 Temperature sensor 1 piece
3 Test tube 2 piece
4 power cord 1 piece
5 fuse tube 1 piece 10A
6 Operating instruction 1 copy
7 Packing list 1 copy
8 Certificate 1 copy
9
