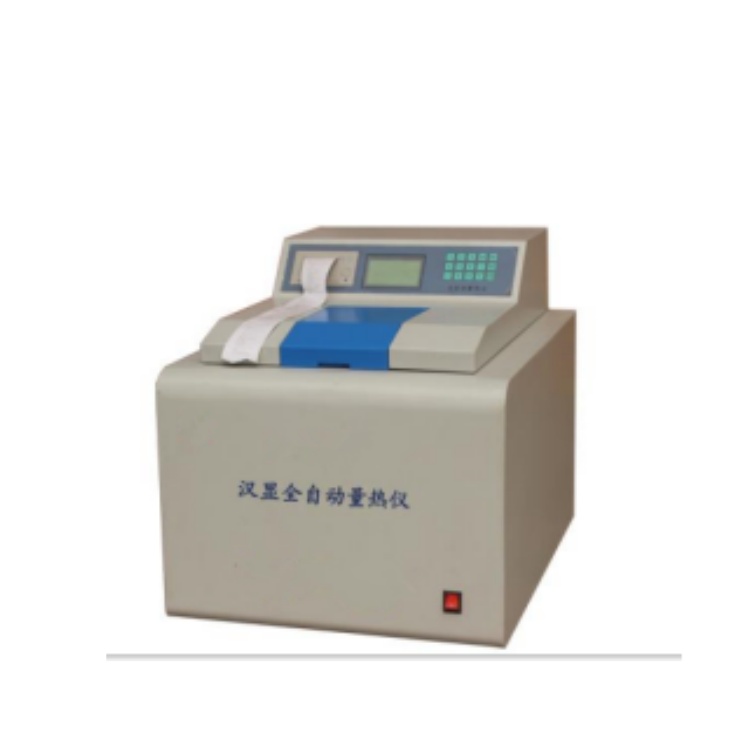

Petroleum Product Testing Instrument SH500 Calorimeter Calorific Value Index
Petroleum Product Testing Instrument SH500 Calorimeter Calorific Value Index
Petroleum Product Testing Instrument SH500 Calorimeter Calorific Value Index
Petroleum Product Testing Instrument SH500 Calorimeter Calorific Value Index
Specifications
Delivery Time :
7-15work-days
Temperature measurement range :
0℃-65℃
Brand Name :
Shengtai Instrument
Power supply :
AC (220V±10%), 50 Hz
Model Number :
SH500C
Work rate :
< 300W
Payment Terms :
T/T
Test time :
about 15min
MOQ :
1
Resolution :
0.001 ℃
Supply Ability :
100000sets/year
Temperature range :
5℃-40℃
Packaging Details :
wooden case
Quantitative error :
≤±1g
Place of Origin :
China
Heat capacity :
about 10500J/K
Description

SH500 Calorific power meter

Adoption standard

GB/T213-2008 "coal calorific determination method", GB/T483-2007 "coal analysis test method general provisions", JC/T1005-2006 "cement black raw material calorific determination method", GB/T384 "petroleum products calorific value determination method".

Scope of application

Calorimeter is mainly used to determine the calorific index of coal, coke, gangue and other solid combustible materials, in order to measure the quality of the measured material.Widely used in power, coal, metallurgy, petrochemical, quality inspection, environmental protection and other industries.It is the main instrument in coal quality laboratory.

Performance characteristics

  • Controlled by single chip microcomputer, LCD Chinese display temperature, time, accurate and reliable, intuitive display, easy to operate.
  • The instrument has automatic ignition, automatic mixing, automatic printing test results.Real-time display of temperature-time curve, automatic judgment of ignition circuit on and off.
  • Reasonable structure, reliable performance, with fault display function, easy to learn and easy to use.
  • The test time of single sample is about 15min, and the test results can be used as arbitration analysis.

Main technical indicators

Model SH500 Calorific power meter
Power supply AC (220V±10%), 50 Hz
Work rate < 300W
Heat capacity about 10500J/K
Resolution 0.001 ℃
Test time about 15min
Temperature range 5℃-40℃
Temperature measurement range 0℃-65℃
Quantitative error ≤±1g
Calorific measurement accuracy better than 0.2% (benzoic acid)
Measurement error better than national standard
outer water pipe capacity 30L
Inner water drum capacity 2.3L
Ignition voltage 24V
gnition time 6 minutes ignition
Measuring accuracy GB/T213-2003
Overall dimension (mm): 460 *440* 580 Host weight: about 30 kg
Package size: 720 *580* 610 mm Package weight: 43 kg



Petroleum Product Testing Instrument SH500 Calorimeter Calorific Value Index



Packing list

S/N Name Unit Quantity Remarks
1 Calorimeter host set 1
2 Oxygen bomb piece 1
3 Oxygenator piece 1
4 Oxygen bomb rack piece 1
5 Crucible piece 2 Vulnerable spare parts
6 10mL syringe piece 1





7





Rubber sealing ring





set





2

One set of oxygen filling instrument and one set of oxygen bomb

Vulnerable spare parts
8 Ignition wire piece 1 0.18mm Ni-Cr wire, consumables
9 Cotton thread piece 1 consumables
10 Benzoic acid piece 10 consumables
11 Printing paper piece 2 consumables
12 power cord piece 1 250V 6A
13 Instructions copy 1
14 Certificate warranty card copy 1
