SH126C Coolant Foam Tendency Tester Room Temp ～ 100 ℃ Glassware Method ASTM D1881
SH126C Coolant Foam Tendency Tester Room Temp ～ 100 ℃ Glassware Method ASTM D1881
SH126C Coolant Foam Tendency Tester Room Temp ～ 100 ℃ Glassware Method ASTM D1881
SH126C Coolant Foam Tendency Tester Room Temp ～ 100 ℃ Glassware Method ASTM D1881
SH126C Coolant Foam Tendency Tester Room Temp ～ 100 ℃ Glassware Method ASTM D1881
SH126C Coolant Foam Tendency Tester Room Temp ～ 100 ℃ Glassware Method ASTM D1881
SH126C Coolant Foam Tendency Tester Room Temp ～ 100 ℃ Glassware Method ASTM D1881
SH126C Coolant Foam Tendency Tester Room Temp ～ 100 ℃ Glassware Method ASTM D1881
Specifications
Model Number :
SH12C
Payment Terms :
T/T
Working power supply :
AC220V±10%, 50 hz
relative humidity :
≤85%
Delivery Time :
7-15work days
air flow :
precision flow meter control
ambient temperature :
-10 ~ +40℃
Brand Name :
Shengtai Instrument
heating power :
2000W
timing mode :
automatic timing, can be set by themselves
MOQ :
1
Supply Ability :
4000sets/year
Temperature control range :
room temperature ~ 99.9℃
Packaging Details :
carton
Holes :
2
Place of Origin :
China
Description

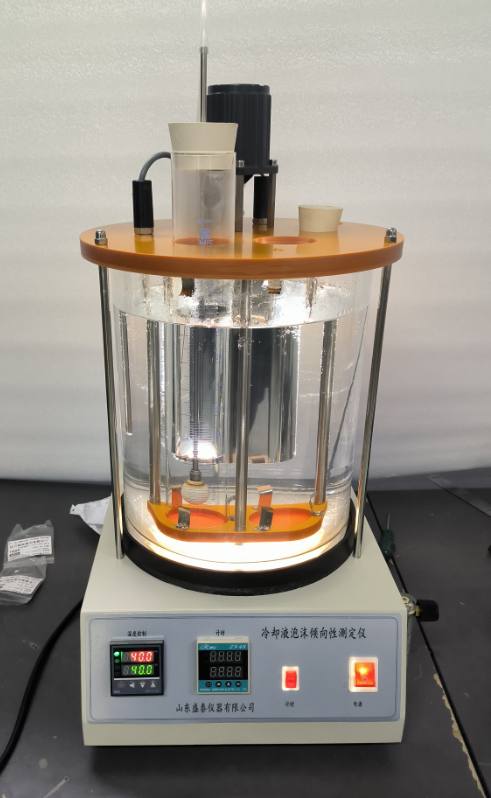

SH126C Coolant foam propensity tester

SH126C engine coolant foam tendency tester is designed according to the requirements of the People's Republic of China petrochemical industry standard SH/T0066 "engine cooling foam determination method", suitable for the determination of diluted or concentrated engine coolant foam according to the test method of SH/T0066 standard.

The instrument is composed of a glass bath, an electric control box, an electric heater, an intelligent digital temperature controller, a microcontroller, two 500ml heat-resistant glass measuring cylinders, two gas flow meters and two groups of gas diffusion.

Instrument structure and technical conditions in accordance with the standard requirements of ASTM D1881

Engine Coolants Foaming Tendencies Analyzer

Engine Coolants Analysis ASTM D1881 Foaming Tendency Analyzer

Technical parameters

● Working power supply: AC220V±10%, 50 hz;

●, heating power: 2000W;

● Holes:2

● air flow: precision flow meter control

●Temperature control range: room temperature ~ 99.9℃

●timing mode: automatic timing, can be set by themselves

●ambient temperature: -10 ~ +40℃;

● relative humidity: ≤85%;

Specifications of Foaming Tendency Tester:

Applicable standards SH/T0066 ASTM D1881
Working unit 2 holes working simultaneously
Pressure display pressure meter
Pressure adjustment Through flow meter
Stirring method Electric stirring
Heating method Electric tube heating
Power supply AC220V ± 10%, 50Hz
Heating power 2000W
Measuring range room temperature ~ 99.9 °C
Ambient temperature -10~ +40ºC
Relative humidity 85%
Instrument size: 350 * 280 * 360mm Weight: 25kg
Package size: 600 * 480 * 580mm Weight: 31kg

SH126C Coolant Foam Tendency Tester Room Temp ～ 100 ℃ Glassware Method ASTM D1881

Packing list
S/N Name specification Unit Quantity Remarks
1 Host set 1
2 Fuse tube 10A piece 2
3 Measuring cylinder 500mL piece 2
4 Rubber plug, airway and aerator head piece 2
5 Thermometer for foam properties 50-100℃ piece 1
6 Power cord 220V piece 1
7 Specification copy 1
8 Warranty card copy 1
