SH0059B Lube Oil Evaporation Loss Meter LCD Touchscreen Auto Calculation ASTM D5800 Compliant
SH0059B Lube Oil Evaporation Loss Meter LCD Touchscreen Auto Calculation ASTM D5800 Compliant
SH0059B Lube Oil Evaporation Loss Meter LCD Touchscreen Auto Calculation ASTM D5800 Compliant
SH0059B Lube Oil Evaporation Loss Meter LCD Touchscreen Auto Calculation ASTM D5800 Compliant
Specifications
MOQ :
1
Packaging Details :
carton
Delivery Time :
7-15work-days
Brand Name :
Shengtai Instrument
Model Number :
SH0059B
Certification :
ISO9001
Payment Terms :
T/T
Place of Origin :
China
Suction Method :
Vacuum Pump
Temperature Control Mode :
Digital Display PID Temperature Control
Heating Method :
Metal Bath Heating
Pressure Regulation :
Highly Precise Needle Valve
Supply Ability :
50000sets/year
Working Power Supply :
AC (220±10%) V, 50Hz(customizable)
Temperature Control Range :
Normal Temperature To 250 °C ± 0.1 °C
Description

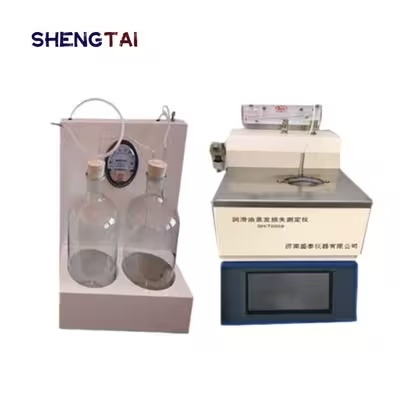

SH0059B Lube Oil Evaporation Loss Meter | LCD Touchscreen, Auto Calculation, ASTM D5800 Compliant


The SH0059B LCD lubricating oil evaporation loss tester is engineered and manufactured in full compliance with Chinese petrochemical industry standard SH/T 0059-1996 (Noack Method for Lubricating Oil Evaporation Loss Measurement), as well as ASTM D5800 and DIN 51581 standards.
This unit is designed for testing lubricating oils and lube base oils. During operation, samples are heated under controlled conditions for 1 hour, with evaporated oil vapor carried away by airflow. The final evaporation loss value is derived from the mass difference of the sample before and after the heating process.

Key Performance Features

  1. Adopts a metal bath heating structure for safe, low-emission operation. Wood alloy is integrated into the bath body to improve heat conduction efficiency and temperature uniformity.
  2. Fitted with an imported high-precision differential pressure gauge to ensure stable, accurate pressure readings throughout the full test cycle.
  3. Comes with a dedicated vacuum suction system and precision pressure regulation assembly. The built-in imported needle valve supports fine-tuned, highly accurate flow control.
  4. Features a smart LCD touchscreen interface with automatic temperature control. After you input the initial sample mass, the instrument will auto-calculate evaporation loss, store test data, and trigger an alarm once the set test time elapses.

Technical Parameters

Working power supply AC (220±10%) V, 50Hz(customizable)
Temperature control mode Digital display PID temperature control
Temperature control range Normal temperature to 250 °C ± 0.1 °C
Heating method Metal bath heating
Pressure regulation Highly precise needle valve
Suction method Vacuum pump
Differential pressure measurement Differential pressure measurement
Appplicable test standard ASTM D5800, SH/T 0059-2010
Applicable standard SH/T0059 ASTM D5800 DIN51581
Instrument size: 380 * 360 * 450mm Weight: 28kg



Packing list

S/N Name Unit Quantity Remarks
1 Lubricating oil evaporation loss tester set 1
2 Evaporation crucible piece 1
3 Reamer piece 1
4 Small brush piece 1
5 Crucible frame piece 1
6 Crucible wrench piece 1
7 Temperature sensor piece 1
8 Suction pipe wrench piece 1
9 Wood alloy g 50
10 Slag scoop piece 1
11 power cord piece 1
12 instruction manual copy 1
13 Certificate warranty card copy 1
