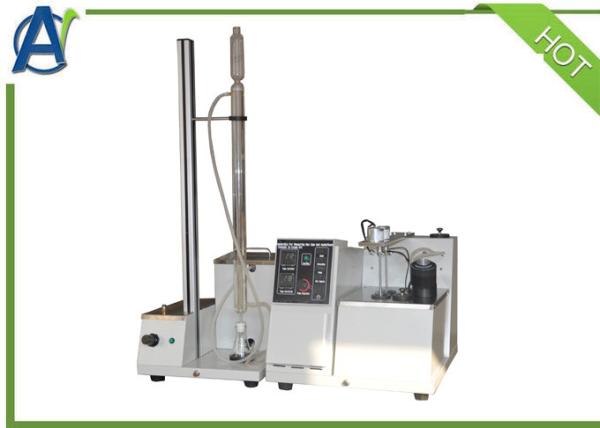

Asphaltenes in Crude Oil Testing Equipment as per UOP 614-02 Method
Asphaltenes in Crude Oil Testing Equipment as per UOP 614-02 Method
Asphaltenes in Crude Oil Testing Equipment as per UOP 614-02 Method
Asphaltenes in Crude Oil Testing Equipment as per UOP 614-02 Method
Asphaltenes in Crude Oil Testing Equipment as per UOP 614-02 Method
Asphaltenes in Crude Oil Testing Equipment as per UOP 614-02 Method
Specifications
Brand Name :
AI
Model Number :
AIC-L5
Certification :
ISO
Place of Origin :
China
MOQ :
1 set Asphaltenes in Crude Oil Testing Equipment
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
20 sets per month
Delivery Time :
30 days
Packaging Details :
Plywood case
Standards :
NB/SH/T0509, UOP 614-02
Heating method :
electric heating tube
Circulation mode :
circulation pump
Evacuation method :
Vacuum pump
Power Supply :
AC (220±10%) V, (50±1) Hz
Temperature controlling range :
normal temperature~90ºC
Color :
Grey
Total power :
3000W
Description

Introduction
This Asphaltenes Testing Equipment is suitable for petroleum products and samples whose temperature is lower than 80ºC and can flow. It is also suitable for the measurement of petroleum asphalt and residual oil.
A membrane filter of known weight is filtered, then dried, and then the weight of the insoluble matter filtered by the membrane filter is weighed. The principle of measuring asphalt is to use n-heptane to precipitate asphaltenes from the sample. After filtering, use n-heptane to reflux to remove the soluble components contained in the precipitate, and then use toluene to reflux to dissolve the precipitate to obtain asphaltenes. The deasphalted part is adsorbed on an alumina chromatographic column, and then washed out with n-heptane (or petroleumether), toluene, toluene-ethanol, and correspondingly saturated components, aromatic components, and gums are obtained.

Main Features

  1. Dedicated membrane filter, equipped with imported membrane filter;
  2. The miniature vacuum pump is evacuated, with low noise and long life;
  3. The vacuum gauge shows the degree of vacuum, which can be adjusted;
  4. Stainless steel electric heater;
  5. Imported plastic-steel gear pump circulation, no need to connect external circulating water;
  6. The glass test tube meets the requirements of the standard and is equipped with a special holder;
  7. Microcomputer temperature controller, PID temperature control, PT100 temperature sensor, high accuracy;
  8. Split structure, easy to operate.

Technical specifications of Asphaltenes Testing Equipment

1 Applicable standards NB/SH/T0509, UOP 614-02
2 Measurement range
  • Saturation score 12~27%
  • Aroma score 21~47%
  • Glue quality 31~55%
  • Asphaltene 0.01~20%
3 Heating method electric heating tube
4 Circulation mode circulation pump
5 Evacuation method Vacuum pump
6 Power consumption 3KW
7 Temperature controlling range normal temperature~90ºC
8 Power supply AC220V,50Hz

Factory View

Asphaltenes in Crude Oil Testing Equipment as per UOP 614-02 Method
