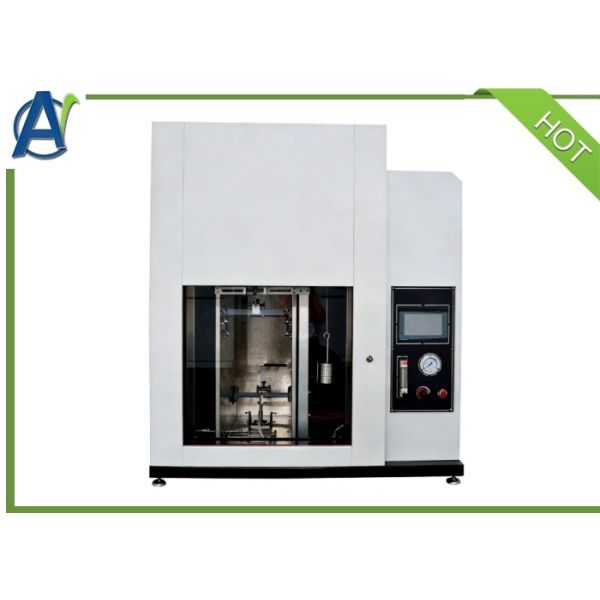

Single wire and cable tilting flame tester is generally applicable to road vehicles 60V and 600V single core wire tilt anti-retardant standard,horizontal flame-resistant time standard and international automotive cable standards of low-voltage cables for automobiles unshielded horizontal flame test methods. lt is used for performance assessment of cable under fire conditions.

Test method: Fix the two terminals of the sample, and put it into a metal over with three metal plate surfaces.Light on the blowtorch. Keep the blue inner cone point under sample 50mm away, and connect with the sample. The sample should be 45° tited to the horizontal plane.

• ISO 19642.2-2023;
• IEC60332-1~2-2015

1.Control mode: touch screen control, set the test combustion time in the screen. and control the burning time and display the temperature value when the flame temperature is calibrated.

2.Metal covering size:300mm(W)x600mm( D)x1175mm(H) open the front side.material is SUS304 stainless steel;

3.Combustion chamber volume: ≥1m³

4.Combustion torch: the United States imported torch, combustion port inner diameter of 9mm.

5.Flame size: outer flame height 100mm, inner flame height 50 mm.

6.Burner positioning: pneumatic.

7.Specimen load: 100N in total.

8.When the setting burning time reaches to preset time, the device will automatic stop.

9.lgnition: automatic high pressure ignition

10.Rotor flowmeter: 0.16L~1.6L/min

11.One individually controlled exhaust fan is mounted on the top

12.Flame detection device: One 0.5K-type imported thermocouple. One outer diameter 9mm electrolytic copper block and quality 10g+0.05g.One temperature and time display device.

• Overall Dimensions: 1240mm*800mm*1470mm
• Power supply: AC 220V, 50/60Hz, 2A
• Air source: propane or natural air (provided by the customer)
