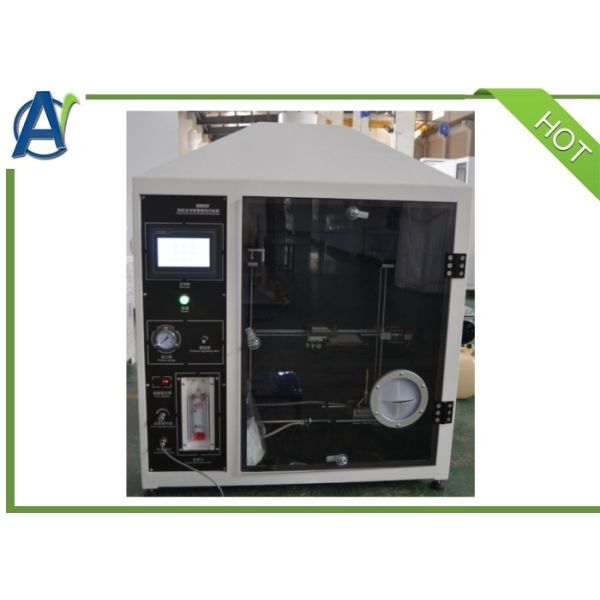

UL 94 IEC 60695-11-10 Automatic Horizontal and Vertical Flammability Tester for Plastic Materials
UL 94 IEC 60695-11-10 Automatic Horizontal and Vertical Flammability Tester for Plastic Materials
UL 94 IEC 60695-11-10 Automatic Horizontal and Vertical Flammability Tester for Plastic Materials
UL 94 IEC 60695-11-10 Automatic Horizontal and Vertical Flammability Tester for Plastic Materials
UL 94 IEC 60695-11-10 Automatic Horizontal and Vertical Flammability Tester for Plastic Materials
UL 94 IEC 60695-11-10 Automatic Horizontal and Vertical Flammability Tester for Plastic Materials
UL 94 IEC 60695-11-10 Automatic Horizontal and Vertical Flammability Tester for Plastic Materials
UL 94 IEC 60695-11-10 Automatic Horizontal and Vertical Flammability Tester for Plastic Materials
Specifications
Brand Name :
Advanced Instruments
Model Number :
AIC-52031
Certification :
UL 94;IEC 60695-11-10
Place of Origin :
China
MOQ :
1set
Price :
$3000~$5000
Payment Terms :
L/C,T/T,D/P
Supply Ability :
30sets/month
Delivery Time :
30days
Packaging Details :
Plywood Case
After Service :
Response in 12 Hours 12 Months
Warranty :
1full Year
Transport Package :
Plywood Case
Test Standard :
UL 94;IEC 60695-11-10
Test Object :
Plastic Materials
Operation :
Automatic
Power Supply :
AC220V,50/60Hz,1A
Gas Source :
Methane, air
Specification :
1050mm×750mm×1400mm(Overall dimensions)
Control System :
PLC with Touch Screen
Burner positioning :
Pneumatic
Flame Height :
18~22mm
Angle Conversion :
push-pull device 90°,20°, 45°
Language :
English
Description
General Introduction
1.1 Product Description

Horizontal and veruical burnlng tester is malnly used for plastic or fim under the speciied fre source direct bumina to measure thefre-resistant perormance of plastics, and determine its fire-resistant level. UL 94 is one of the most important test methods and standardsrelated to UL about fire safety. it is very important for plastics used in electrical industry, The test method is made based on the research olUL to plastic flame-resistant performance, which is not only applicable to the electrical industry, and many other areas, such as lightingeguipment, low-voltage appliances, household appliances, electrical machines, tools, instruments these equipment, and electricalconnections and other electrical and electronic products and component pats, their research, production, and quality control departmentsbut also for insulating materials, engineering materials and other solid combustible materials industry.

1.2 Related standards

UL 94
IEC 60695-11-10:2013

UL 94 IEC 60695-11-10 Automatic Horizontal and Vertical Flammability Tester for Plastic Materials

Technical parameters
1.Controller: 7" colour touch screen and PLC control
2.Burner positioning: Pneumatic
3.lgnition time:0 ~99.99s arbitrarily settable, the residual flame time andafterglow time are automatically recorded
4.Flame height: 18~22mm
5.Angle conversion: push-pull device 90°,20°.45°
6.Burner: lmported from USA HUMBOLDT applying with the requirements of ASTM D 5025-99
7.Flowmeter:0~500mL/min
8.Burner inner diameter: 9.5mm.
Technical specifications
•Overall Demensions:1050mm(W)x750mm(D)x1400mm(H)
•Power Supply:AC220V 50/60HZ 1A
•Gas source: Methane,air(provided by the customer)

UL 94 IEC 60695-11-10 Automatic Horizontal and Vertical Flammability Tester for Plastic Materials
FAQ
  1. What's the delivery time? About 30days.
  2. What's your payment terms? 30% paid by T/T in advance,70% paid by by T/T before shipping.
  3. What's your guarantee terms? The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
  4. Can you supply training? We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
