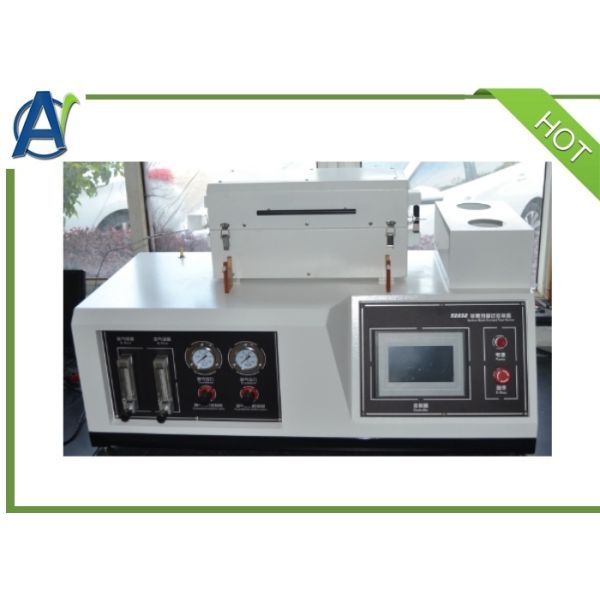

IEC 60811-4-1:2004 and ISO 6964 Compliant Automatic Carbon Black Content Tester for Polyethylene Combustion Testing
IEC 60811-4-1:2004 and ISO 6964 Compliant Automatic Carbon Black Content Tester for Polyethylene Combustion Testing
IEC 60811-4-1:2004 and ISO 6964 Compliant Automatic Carbon Black Content Tester for Polyethylene Combustion Testing
IEC 60811-4-1:2004 and ISO 6964 Compliant Automatic Carbon Black Content Tester for Polyethylene Combustion Testing
IEC 60811-4-1:2004 and ISO 6964 Compliant Automatic Carbon Black Content Tester for Polyethylene Combustion Testing
IEC 60811-4-1:2004 and ISO 6964 Compliant Automatic Carbon Black Content Tester for Polyethylene Combustion Testing
IEC 60811-4-1:2004 and ISO 6964 Compliant Automatic Carbon Black Content Tester for Polyethylene Combustion Testing
IEC 60811-4-1:2004 and ISO 6964 Compliant Automatic Carbon Black Content Tester for Polyethylene Combustion Testing
Specifications
Brand Name :
Advanced Instruments
Model Number :
AIC-52032
Certification :
IEC 60811-4-1:2004 ; ISO 6964
Place of Origin :
China
MOQ :
1set
Price :
$5000~$10000
Payment Terms :
L/C,T/T,D/P
Supply Ability :
20sets/month
Delivery Time :
30days
Packaging Details :
Plywood Case
After Service :
Response in 12 Hours 12 Months
Warranty :
1full Year
Transport Package :
Plywood Case
Test Standard :
IEC 60811-4-1:2004 ; ISO 6964
Power Supply :
AC220V,50/60Hz,16A
Air Source :
Nitrogen (Oxygen Content <0.5%), Oxygen
Specification :
600mm×450mm×750mm
Quartz tube :
inner diameter 30mm, total length 450mm;
Bottle washing :
500ml, 2 pcs/set
Burning boat :
Type 77, 100 pcs/set;
Application :
Cable and Wires Testing
Description
General Introduction
1.1 Equipment overview

Carbon black content test device is designed and produced in line with GB/T2951.41—2008 <Common test methods for insulating and sheathing materials of electric and optical cables--Part 41: Methods specific to polyethylene and polypropylene compounds - Carbon black and/or mineral filler content measurement in polyethylene by direct combustion>, used for determination of carbon black content of polyethylene, polypropylene, polybutylene plastics.

1.2 Related standards
  • ISO 6964;
  • IEC 60811-4-1:2004
  • ASTM D1603

IEC 60811-4-1:2004 and ISO 6964 Compliant Automatic Carbon Black Content Tester for Polyethylene Combustion Testing

Technical parameters
  1. Quartz tube: inner diameter 30mm, total length 600mm;
  2. Heating furnace: room temperature~600℃, 500mm length;
  3. Temperature sensor: K type, room temperature~1300℃;
  4. Bottle washing: 500ml, 2 pcs/set;
  5. Burning boat: Type 77, 100 pcs/set;
  6. Air source: nitrogen (oxygen content <0.5%), oxygen (customer provided);
  7. Flow meter: 0.3~3L/min.
Technical specifications
  1. Overall Dimensions: 600mm*450mm*770mm
  2. Power supply: AC 220V, 50/60Hz, 16A
IEC 60811-4-1:2004 and ISO 6964 Compliant Automatic Carbon Black Content Tester for Polyethylene Combustion Testing
FAQ
  1. What's the delivery time?
    About 30days.
  2. What's your payment terms?
    30% paid by T/T in advance,70% paid by by T/T before shipping.
  3. What's your guarantee terms?
    The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
  4. Can you supply training?
    We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
