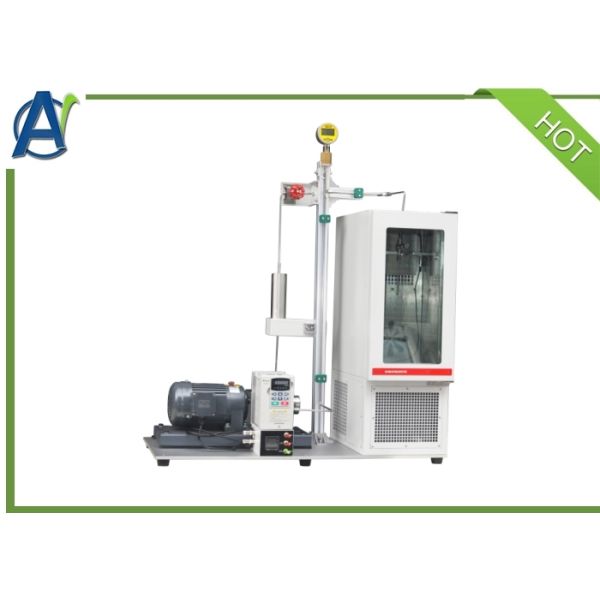

This instrument meets the test method for the apparent viscosity of lubricating greases.
It is applicable for the determination of the apparent viscosity of lubricating greases within a temperature range of -54°C to 38°C, expressed in Poise (P).
Measuring Range:
At 0.1 s^-1: 25 ~ 10⁵P
At 15,000 s^-1: 1 ~ 100 P
A floating piston driven by a hydraulic system forces the sample through a capillary tube.
The apparent viscosity is calculated from the predetermined flow rate and the applied force in the system according to the Poiseuille equation.
Apparent viscosity is measured at 16 shear rates using 8 capillary tubes of different diameters and 2 pump speeds.
The test results are presented as a log-log plot of apparent viscosity versus shear rate.

1.The Apparent Viscosity Test Instrument uses stainless steel sample tube, precision machined, matching precision piston;

2.Four separate pressure pipeline systems;

3.The Apparent Viscosity Test Instrument has 8 sets of special capillary tubes, which meet the standard requirements;

4.Microcomputer temperature controller, digital display, PT100 temperature sensor, high precision;

5.Integrated hydraulic pump, the flow is more stable;

6.The Apparent Viscosity Test Instrument adopts imported electric motor drive gearbox;

7.Electric switching speed, convenient operation;

8.A set of special tools is supplied with the apparent viscosity tester.

1.What's the delivery time?

About 40days.

2.What's your payment terms?

30% paid by T/T in advance,70% paid by by T/T before shipping.

3.What's your guarantee terms?

The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.

4.Can you supply training?

We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
