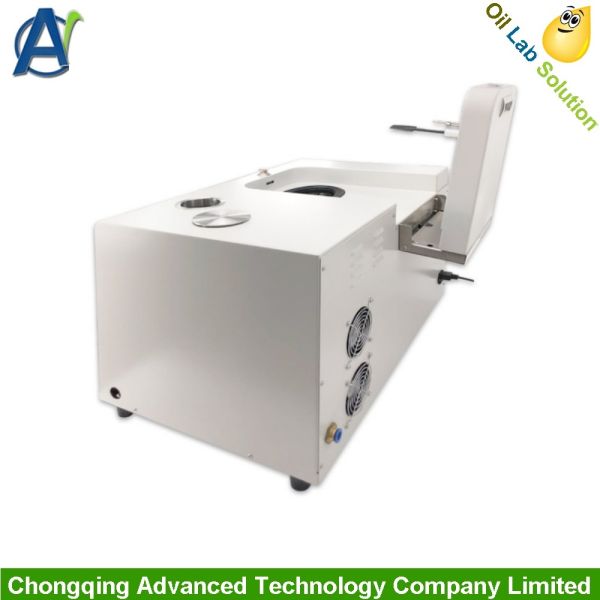

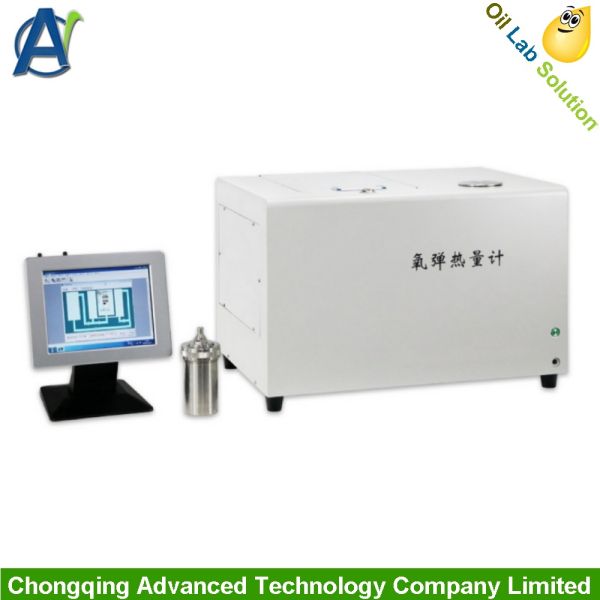

ASTM D240 Automatic Calorific Value Meter of Liquid Fuels by Oxygen Bomb Calorimeter
ASTM D240 Automatic Calorific Value Meter of Liquid Fuels by Oxygen Bomb Calorimeter
ASTM D240 Automatic Calorific Value Meter of Liquid Fuels by Oxygen Bomb Calorimeter
ASTM D240 Automatic Calorific Value Meter of Liquid Fuels by Oxygen Bomb Calorimeter
ASTM D240 Automatic Calorific Value Meter of Liquid Fuels by Oxygen Bomb Calorimeter
ASTM D240 Automatic Calorific Value Meter of Liquid Fuels by Oxygen Bomb Calorimeter
ASTM D240 Automatic Calorific Value Meter of Liquid Fuels by Oxygen Bomb Calorimeter
ASTM D240 Automatic Calorific Value Meter of Liquid Fuels by Oxygen Bomb Calorimeter
Specifications
Brand Name :
Advanced Instruments
Model Number :
OBC-III
Certification :
ASTM D240
Place of Origin :
China
MOQ :
1 set
Price :
US$5000-10000/set
Payment Terms :
T/T, L/C, D/P
Supply Ability :
20Sets Per Month
Delivery Time :
20days
Packaging Details :
Plywood Case
Test Standard :
ASTM D240
Warranty :
1full Year
Transport Package :
Plywood Case
Trandmark :
Advanced Instruments
Operating Power Supply :
AC220 V±10V, 50Hz
Total power consumption :
≤0.2KW
Measuring temperature range :
5℃~28℃
Temperature resolution :
0.0001℃
RSD(Relative standard deviation) :
≤0.1%
Test time :
about 12mins
Measuring range :
5MJ/kg~40MJ/kg
Net Weight :
55kg
Description

General Introduction


This Automatic Oxygen Bomb Calorimeter is designed and made as per the National Standard of People's Republic of China GB/T213-2008 and ASTM D240 Test Method for Calorific Value of coal, GB/T384-1988 Test Method for Calorific Value of Petroleum Products and Calibration Regulation of People's Republic of China JJG672-2001 Oxygen Bomb Calorimeter.
Product Advantages

1. Adopting semiconductor refrigeration to decide the refrigerating capacity according to the calorific value,the instrument can automatically adjust water temperature and keep water in a relative constant temperature range,realize the continuously and long time test requirement,and make sure the test result is correct.

2. Using USB port,convenient to connect.One computer can control many sets of Oxygen Bomb Calorimeter.
3. With a electronic measuring cup itself,no need to weigh the water by manual,it can measure the water volume automatically,the repetitive error<0.4g.
4. Automatically detecting the resistance of ignition filament,automatically checking the installing condition of ignition filament before test.
5. Standard pipeline design,vastly shortening the pipeline,and more reasonable pipeline design to ensure more precision of test results.
6. Adopting professional discharge water ports,more convenient and fast when the instrument drains away water or change the water.
7. The electronic balance with communication function to share the data by the internet.
ASTM D240 Automatic Calorific Value Meter of Liquid Fuels by Oxygen Bomb Calorimeter
The Technical Specifications and Parameters

Power supply AC(220±10%)V, 50Hz
Total power consumption ≤0.2KW
Measuring temperature range 5℃~35℃
Temperature resolution 0.0001℃
RSD(Relative standard deviation) ≤0.1%
Test time 12mins
Heat capacity (9000~11000)J/K
Measuring range 5MJ/kg~40MJ/kg
Measuring error ±60J/g (Benzoic acid)
Accuracy Better than GB/T213-2008 " The determination method of coal calorific value"

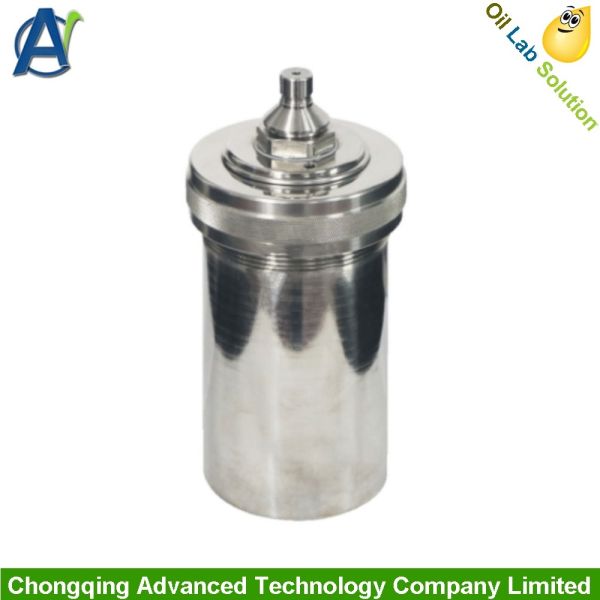

Pressure endurance of oxygen bomb 20 MPa
Working environment Temperature:(15~28)℃; Relative humidity:≤85%
Net Weight 55KG
Outline Dimension 650mm×450mm×450mm


ASTM D240 Automatic Calorific Value Meter of Liquid Fuels by Oxygen Bomb Calorimeter


FAQ
1.What's the delivery time?
About 20days.
2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.
3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
