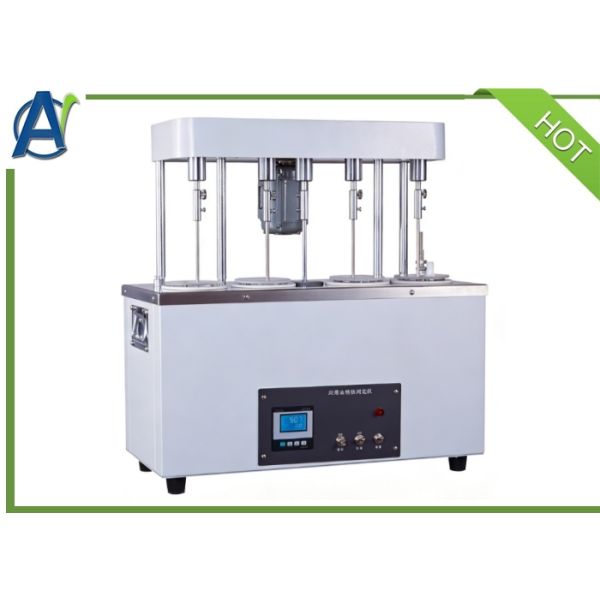

ASTM D665 Lubricating Oils Corrosion and Rust-Preventing Characteristic Analyzer
ASTM D665 Lubricating Oils Corrosion and Rust-Preventing Characteristic Analyzer
ASTM D665 Lubricating Oils Corrosion and Rust-Preventing Characteristic Analyzer
ASTM D665 Lubricating Oils Corrosion and Rust-Preventing Characteristic Analyzer
ASTM D665 Lubricating Oils Corrosion and Rust-Preventing Characteristic Analyzer
ASTM D665 Lubricating Oils Corrosion and Rust-Preventing Characteristic Analyzer
ASTM D665 Lubricating Oils Corrosion and Rust-Preventing Characteristic Analyzer
ASTM D665 Lubricating Oils Corrosion and Rust-Preventing Characteristic Analyzer
Specifications
Brand Name :
Advanced Instruments
Model Number :
AIC-11143
Certification :
ASTM D665
Place of Origin :
China
MOQ :
1 set
Price :
US$3000-4000/set
Payment Terms :
T/T, L/C, D/P
Supply Ability :
50Sets Per Month
Delivery Time :
20days
Packaging Details :
Plywood Case
Test Standard :
ASTM D665
Warranty :
1full Year
Transport Package :
Plywood Case
Trandmark :
Advanced Instruments
Operating Power Supply :
AC220 V±10V, 50Hz
Total power consumption :
≤1800W
Temperature range :
room temp.~100℃
Temperature control accuracy :
±1℃
Temperature display :
Digital display
Temperature control heating power :
1600W
Description

General Introduction


This Lubricating Oils Rust-Preventing Characteristics Analyzer is designed and made as per standards GB/T 11143 Standard test method for rust-preventing characteristics of inhibited mineral oil in the presence of water and ASTM D665 Standard Test Method for Rust-Prevent Characteristics of Inhibited Mineral Oil in the Presence of Water. It is suitable to evaluate rust-preventing characteristics of inhibited mineral oil, especially the rust-preventing characteristics of the turbine oil to iron parts in the presence of water. It is also suitable to evaluate rust-preventing ability of other oils, such as hydraulic oil, circulation oil, as well as liquid, whose gravity is greater than water

Product Advantages

1.This Lubricating Oils Rust-Preventing Characteristics Testing instrument is used to determine the rust-preventing performance of inhibited mineral oils in the presence of water.
2.The Rust-Preventing Characteristics Tester has functions such as temperature control, timing, and alarm upon completion.
3.It employs a digital temperature controller, heater, and electric stirrer to form a thermostatic bath with uniform temperature distribution.
4.It features four sample test holes, allowing simultaneous testing of four samples, resulting in high testing efficiency.
ASTM D665 Lubricating Oils Corrosion and Rust-Preventing Characteristic Analyzer
The Technical Specifications and Parameters

Power supplyAC(220±10%)V, 50Hz
Total power consumption≤1800W
Temperature rangeRoom temp.~100℃
Temperature control accuracy±1℃
Temperature sensorRTD, Pt100
Temperature displayDigital display
Timing range1min~24hour, can be set at will
Time displayDigital display
Temperature control heating power1600w
Rotate speed of stirring motor1400RPM
Sample stir rate(1000±50)r/min
Sample testing positionsFour positions
Ambient temperature(15~35)℃
Relative humidity≤85%
Dimension580mm×320mm×600mm


ASTM D665 Lubricating Oils Corrosion and Rust-Preventing Characteristic Analyzer


FAQ
1.What's the delivery time?
About 20days.
2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.
3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
