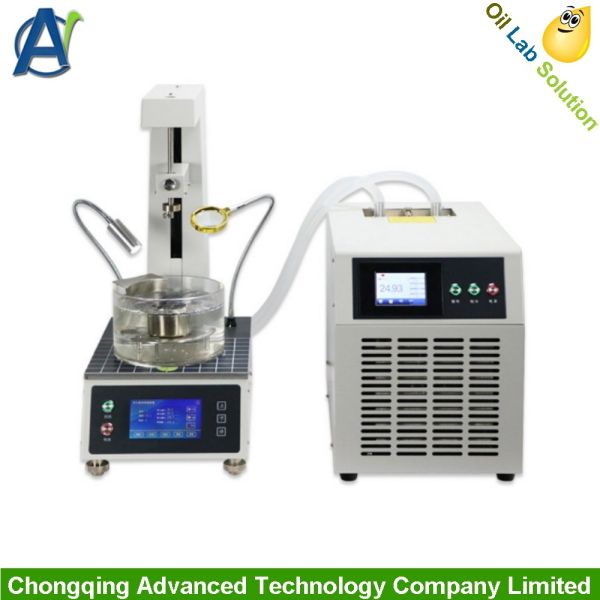

ASTM D5 Penetrometer of Bituminous Materials, Asphalt Needle Penetration Tester
ASTM D5 Penetrometer of Bituminous Materials, Asphalt Needle Penetration Tester
ASTM D5 Penetrometer of Bituminous Materials, Asphalt Needle Penetration Tester
ASTM D5 Penetrometer of Bituminous Materials, Asphalt Needle Penetration Tester
ASTM D5 Penetrometer of Bituminous Materials, Asphalt Needle Penetration Tester
ASTM D5 Penetrometer of Bituminous Materials, Asphalt Needle Penetration Tester
ASTM D5 Penetrometer of Bituminous Materials, Asphalt Needle Penetration Tester
ASTM D5 Penetrometer of Bituminous Materials, Asphalt Needle Penetration Tester
Specifications
Brand Name :
Advanced Instruments
Model Number :
AIC-280H
Certification :
ASTM D5
Place of Origin :
China
MOQ :
1 set
Price :
US$3000-5000/set
Payment Terms :
T/T, L/C, D/P
Supply Ability :
20Sets Per Month
Delivery Time :
20days
Packaging Details :
Plywood Case
Test Standard :
ASTM D5
Warranty :
1full Year
Transport Package :
Plywood Case
Trandmark :
Advanced Instruments
Operating Power Supply :
AC220 V±10V, 50Hz
Total power consumption :
200W
Measurement Range :
0 Penetration~600 Penetrations
Resolution :
0.1 insertion degree
Timing Range :
0~60s
Data storage :
50 sets of test data
Standard needle specifications :
length:50mm, weight :2.5g±0.05g
Net Weight :
15kg
Description

General Introduction


This penetrometer is designed and made as per T0604-2011 Penetration Test for Bituminous Materials in JTG E20-2011 Specification and Test Methods of Bitumen and Bituminous Mixture for Highway Engineering and ASTM D5 Standard Test Method for Penetration of Bituminous Materials. The penetrometer is used to determine the penetration of pavement petroleum asphalt, modified asphalt, liquid petroleum asphalt and emulsified asphalt. It is also suitable to test solid particle, powder, colloid and raw-food materials such as cheese, glycine, butter, cream and leavening. It can be widely used in food industry, highway engineering and other industrial fields.

Product Advantages

1.Auxiliary operation device is equipped with a cold light source illumination device and a magnifying glass, which is convenient for precise observation and operation during the test.
2.Penetration detection unit adopts a new ranging detection unit, the test repeatability is stable, the data is accurate, and the accuracy can reach 0.1 penetration; the test data can be directly displayed and saved on the screen without manual conversion and reading.
3.Measurement range The maximum measurable penetration value is not less than 600 units, which can meet various related test requirements.
4.Lifting structure design
1) The unique electric lifting structure controls the coarse adjustment and fine-tuning functions of the lifting frame by the stepper motor, which is convenient for the precise alignment of the needle tip to the specimen plane.
2)Solve the problem of short service life of traditional gear lifting structures and improve equipment durability
3)The lifting frame has automatic control of the needle bar drop and locking function, which can automatically and steadily stop at any position.
5.Level adjustment function The operating table is equipped with horizontal bubbles, and the bottom stainless steel foot has an adjustment function to ensure that the instrument maintains a high level and ensures the accuracy of testing.
6.Data processing and output With proprietary "computer drawing software + accurate data reading technology", it can automatically draw and print the Nomogram diagram of asphalt penetration relationship; It can be equipped with an external industrial computer all-in-one machine control to realize data docking and uploading with the platform.
National Patent Information
1.Closed circulation water bath method low-temperature penetration meter with host and water bath combination.
2. Cold light source pin illumination lamp of the main unit.
3. Penetration measurement device controlled by the motor of the main unit.
ASTM D5 Penetrometer of Bituminous Materials, Asphalt Needle Penetration Tester
The Technical Specifications and Parameters

Power supply AC(220±10%)V, 50Hz
Total power consumption 200W
Measurement range (0~600) Penetration
Resolution 0.1 insertion degree
Time setting and error

0s~ 60s, and the error is less than ±0.1 s
Data storage 50sets of test data,
Standard needle specifications The length is 50mm, the weight is 2.5g±0.05g
Specimen dish specifications Φ55×35 (diameter× height)
Weight weight 50g
Lifting mechanism The electromechanical control screw assembly is adopted
Net Weight 15KG
Dimension 260mm×400mm×600mm


ASTM D5 Penetrometer of Bituminous Materials, Asphalt Needle Penetration Tester


FAQ
1.What's the delivery time?
About 20days.
2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.
3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
