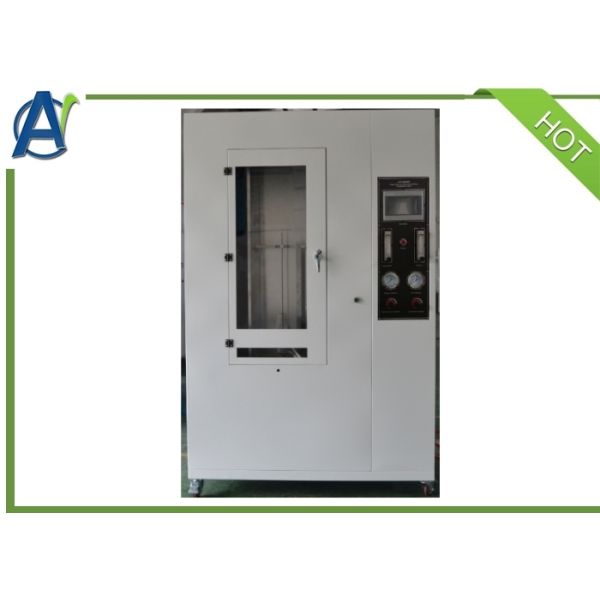

IEC60332-1~2 Single Insulated Wire and Cable Vertical Combustion Tester (Rotor Flow Meter)
IEC60332-1~2 Single Insulated Wire and Cable Vertical Combustion Tester (Rotor Flow Meter)
IEC60332-1~2 Single Insulated Wire and Cable Vertical Combustion Tester (Rotor Flow Meter)
IEC60332-1~2 Single Insulated Wire and Cable Vertical Combustion Tester (Rotor Flow Meter)
IEC60332-1~2 Single Insulated Wire and Cable Vertical Combustion Tester (Rotor Flow Meter)
IEC60332-1~2 Single Insulated Wire and Cable Vertical Combustion Tester (Rotor Flow Meter)
IEC60332-1~2 Single Insulated Wire and Cable Vertical Combustion Tester (Rotor Flow Meter)
IEC60332-1~2 Single Insulated Wire and Cable Vertical Combustion Tester (Rotor Flow Meter)
Specifications
Brand Name :
Advanced Instruments
Model Number :
AIC-52029
Certification :
IEC 60332-1~2
Place of Origin :
China
MOQ :
1set
Price :
$3000~$5000
Payment Terms :
L/C,T/T,D/P
Supply Ability :
20sets/month
Delivery Time :
50days
Packaging Details :
Plywood Case
After Service :
Response in 12 Hours 12 Months
Warranty :
1full Year
Transport Package :
Plywood Case
Test Standard :
IEC 60332-1~2
Gas :
Air and Propane
Application :
Cable and Wires Testing
Color :
Grey
Operation :
Automatic
Metal covering size :
300mmx450mmx1200mm
Power Supply :
AC220V,50/60Hz,2A
Blast burner :
nominal power 1kw
Burning device :
automatic high-tension ignition
Description
General Introduction
1.1 Equipment overview

Single wire and cable vertical flame propagation tester is in accordance with IEC 60332-1-2:2004 <Test
on electric and optical fiber cables under fire conditions-Part 1-2: Test for vertical flame propagation for
a single insulated wire or cable>. Obtain and determine wire and cable's capability of prevent the fire
from spreading under fire condition.

Used for gaining and determining cable's capability of prevent the fire from spreading. Get one piece of 600mm cable as a testing sample, fix it on the clamp after processing. Select fire time based on testing sample specifications, judge the testing result according to the judgment.

1.2 Related standards
  • GB/T18380.(11-12) - 2022;
  • IEC60332-1~2-2015
Technical parameters
  • Metal covering size:1200mm(W)x300mm( D)x450mm(H) open the front side.
  • Blast burner: nominal power 1kw.
  • Controlling way: set burning time to be the preinstall time and the instrument will stop fire automatically.
  • Burning device: ignition is automatic high-tension ignition.
  • Flow rate: air flow 1.5~15L/min(adjustable),gas flow0.1~1L/min(adjustable).
  • Equipped with a separate controlling exhaust fan on the top.
  • Flame inspection device: one piece of import thermocouple 0.5 K,one piece of electrolytic copper 9mm with weight 10g±0.05g,one set of temperature display device,one set of time display device.
Technical specifications
  • Overall Dimensions: 630mm*600mm*2170mm
  • Power supply: AC 220V, 50/60Hz, 2A
  • Air source: propane and air( prepared by user)
IEC60332-1~2 Single Insulated Wire and Cable Vertical Combustion Tester (Rotor Flow Meter)
IEC60332-1~2 Single Insulated Wire and Cable Vertical Combustion Tester (Rotor Flow Meter)
FAQ
  1. What's the delivery time?
    About 50days.
  2. What's your payment terms?
    30% paid by T/T in advance,70% paid by by T/T before shipping.
  3. What's your guarantee terms?
    The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
  4. Can you supply training?
    We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
