Specifications
Brand Name :
Advanced Instruments
Model Number :
AIC52161
Certification :
IEC 60754~1&2
Place of Origin :
China
MOQ :
1set
Price :
$5000~$10000
Payment Terms :
L/C,T/T,D/P
Supply Ability :
20sets/month
Delivery Time :
60days
Packaging Details :
Plywood Case
After Service :
Response in 12 Hours 12 Months
Warranty :
1full Year
Transport Package :
Plywood Case
Test Standard :
IEC 60754-1&2
Power Supply :
AC220V,50/60Hz,2A
Activated Carbon(Air Filtration) :
Pass
Silicone(Air Drying) :
Dry Gas
Flow Meter :
0.1~1L/Min
Display :
7 "Color Touch Screen
Heating Furnace :
220mm*600mm
Power of Heating Furnace :
4kw
Test Object :
Wire and Cables
Description
General Introduction

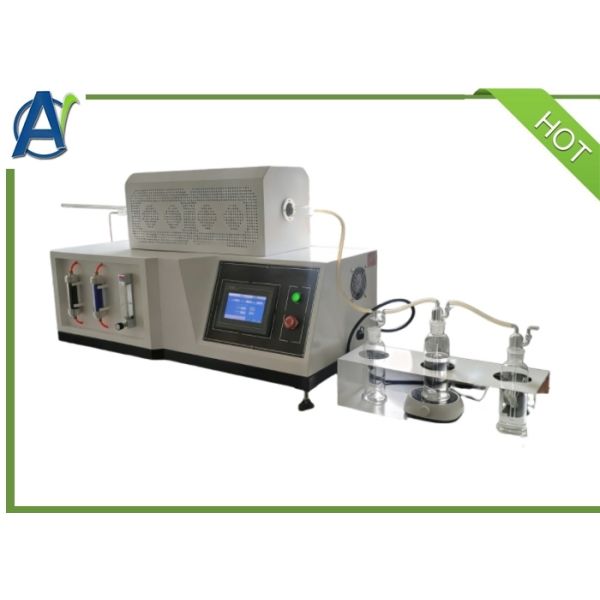

Halogen, PH & conductivity tester is used to measure gas volume of Halogen Acid (IEC 60754-1), pH concentration (PH Meter, Hydrogen ions, IEC 60754-2), Conductivity (IEC 60754-2) and etc from a wire (cable) by radiant heat in the Tube Furnace (IEC 60754-1: 800℃, IEC 60754-2: 950℃).

Standards:

  • IEC 60754-1~2-1994
Technical parameters
  • Activated carbon (air filtering): filter for filtering the supplied air
  • Silica gel (air drying): a device for drying the supplied air
  • Flowmeter: 0.1~1L/min, a device to control the flow of the air source
  • Thermocouple: K type of high temperature resistant stainless thermocouple, range: 0~1300℃
  • Quartz tube: φ40×800
  • Magnetic stirrer: an stirrer used for mixing combustion gas in distilled water
  • PH meter: a device used for measuring the pH acidity (ray magnetic)
  • Conductivity meter: a device for measuring conductivity of combustion gas(ray magnetic)
  • 7 "color touch screen and PLC and PID automatic calculation of the modulecontrol heating furnace temperature
  • Heating furnace: φ220×600; effective heating space: φ43×550; power: 4KW
  • Washing bottle: 500ml straight pipe bottle, quantity: 2; 2L measuring cup, quantity: 1
IEC 60754-1&2 Halogen, PH & Conductivity Testing Device on Gases Evolved During Combustion of Materials From Cables
Technical specifications
  • Dimensions: Main unit 1200mm(W)x520mm(D)x725mm(H)
  • Placement table 2500mm(W)x 600mm(D)
  • Power supply:AC220V, 50/60Hz, 21A
  • Reagents,glassware, gas source (provided by the customer)
IEC 60754-1&2 Halogen, PH & Conductivity Testing Device on Gases Evolved During Combustion of Materials From Cables
FAQ
  1. What's the delivery time?
    About 60days.
  2. What's your payment terms?
    30% paid by T/T in advance,70% paid by by T/T before shipping.
  3. What's your guarantee terms?
    The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
  4. Can you supply training?
    We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
