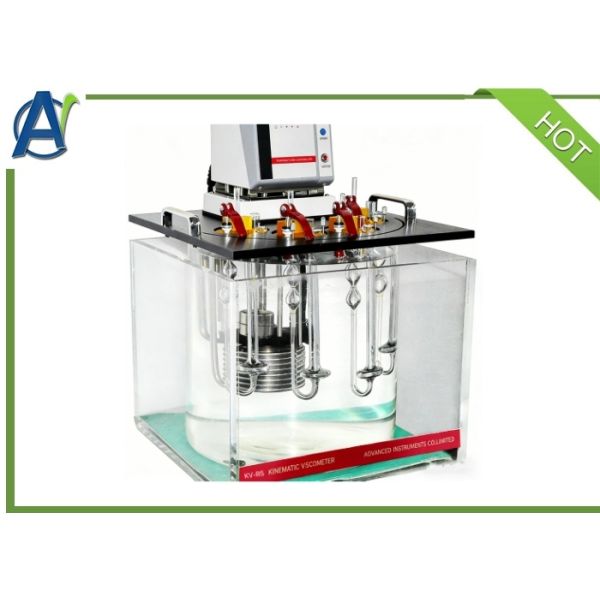

Kinematic Viscosity Testing Instrument Conforms to ASTM D445, ISO 3104, DIN 51366
Kinematic Viscosity Testing Instrument Conforms to ASTM D445, ISO 3104, DIN 51366
Kinematic Viscosity Testing Instrument Conforms to ASTM D445, ISO 3104, DIN 51366
Kinematic Viscosity Testing Instrument Conforms to ASTM D445, ISO 3104, DIN 51366
Kinematic Viscosity Testing Instrument Conforms to ASTM D445, ISO 3104, DIN 51366
Kinematic Viscosity Testing Instrument Conforms to ASTM D445, ISO 3104, DIN 51366
Kinematic Viscosity Testing Instrument Conforms to ASTM D445, ISO 3104, DIN 51366
Kinematic Viscosity Testing Instrument Conforms to ASTM D445, ISO 3104, DIN 51366
Specifications
Brand Name :
Advanced Instruments
Model Number :
AIC-2983
Certification :
ISO3104
Place of Origin :
China
MOQ :
1 set
Price :
US$1000-2000/set
Payment Terms :
T/T,L/C,D/P
Supply Ability :
50Sets Per Month
Delivery Time :
40days
Packaging Details :
Plywood Case
Test Standard :
ASTM D445; ISO3104; DIN51366
Warranty :
1full Year
Transport Package :
Plywood Case
Trandmark :
Advanced Instruments
Power Supply :
AC220V 50Hz
OEM Service :
Available
Temperature Range :
Ambient~-40 ℃
Software Language :
English
Test Principle :
Brookfield rotational viscometry
Refrigeration Method :
Semi-Conductor
Temperature Accuracy :
0.1℃
Display :
LCD Screen
Operation :
Manual
Temperature Control Accuracy :
±0.1℃
Temperature Control :
PID LCDTemperature Controller
Heating System :
Electric Heating Tube
Total Machine Power :
2.5kw
Refrigeration System :
Compressor Refrigeration
Working Unit :
4 Tubes
Core Components :
Stainless Steel Heater
Temperature Control Method :
Imported PID LCD Temperature Controller
Temperature Control Range :
Room Temperature ~ 100℃
Heater :
Stainless Steel
Description
General Introduction

This Kinematic Viscosity Tester is suitable for determining the viscosity of petroleum products. The mechanism of the instrument is as follows: at a constant temperature, measure the time required for a certain volume of liquid to flow through a calibrated glass capillary viscometer under gravity; the product of the capillary constant of the viscometer and the flow time is the kinematic viscosity of the measured liquid at that temperature.

Features

1.360° fully transparent structure for easy observation;
2.Full aluminum operation table with anodized wire drawing treatment on the surface;
3.Sputtered turbo liquid circulator to improve the temperature uniformity of the upper, middle and lower parts of the bath;
4.Four samples can be tested simultaneously, facilitating the preparation of parallel samples;
5.High-power solid-state relay control output, no voltage leakage;
6.Stainless steel heater;
7.The temperature controller displays the heating status;
8.Safety protection device to prevent overheating and low water level;
9.Imported PID temperature controller with digital temperature display and an accuracy of 0.1℃.

Kinematic Viscosity Testing Instrument Conforms to ASTM D445, ISO 3104, DIN 51366
The Technical Specifications and Parameters
Model KV-R5
Applicable Standards ASTM D445;ISO3104;DIN51366
Temperature Control Method
Imported PID LCD Temperature Controller
Temperature Control Accuracy
±0.1℃
Temperature Control Range
Room Temperature~100℃
Heating Method
Electric Heating Tube Heating
Total Machine Power
2.5KW
Working Unit
4 Tubes
Power Supply
AC220V, 50Hz
FAQ

1.What's the delivery time?

About 40days.

2.What's your payment terms?

30% paid by T/T in advance,70% paid by by T/T before shipping.

3.What's your guarantee terms?

The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.

4.Can you supply training?

We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
